TSOptics ToupTek AFW AFW Electronic Filter Wheel 7x 2 Inch

Name: TSOptics ToupTek AFW AFW Electronic Filter Wheel 7x 2 Inch
Brand: ToupTek
SKU: TSAFW7X2
Price: 356 EUR

Change the filters in front of your TS-Optics ToupTek camera via software command

Filter size 2" mounted, sufficient for sensors up to full frame

7 filter slots allow for common filter combinations like LRGB + H-alpha + O-III + S-II

20 mm optical path works well with our TE cooled cameras up to full-frame sensor, even when using TS-OAG-M48, TS-OAG-M54 or TS-OAG-M68

Powered via USB2.0 connection, so only one cable is required.

Manufacturer: ToupTek

Product number: TSAFW7X2

EUR 356,00

incl. 19 % VAT (DE)

The VAT indicated refers to that applicable in Germany. After logging in, the VAT amount is adjusted to the applicable VAT of the stored delivery country. Therefore, the final price may vary accordingly.

excl. 6.95 € shipping costs (DE)

Please log in to calculate shipping costs to your country.

more details to the shipping costs ...

There are no reviews for this product

Roll over image to zoom in or klick it. The appropriate zoom factor ist adjustable with the mouse wheel.

TSOptics ToupTek AFW AFW Electronic Filter Wheel 7x 2 Inch

Change the filters in front of your TS-Optics ToupTek camera via software command

Filter size 2" mounted, sufficient for sensors up to full frame

7 filter slots allow for common filter combinations like LRGB + H-alpha + O-III + S-II

20 mm optical path works well with our TE cooled cameras up to full-frame sensor, even when using TS-OAG-M48, TS-OAG-M54 or TS-OAG-M68

Powered via USB2.0 connection, so only one cable is required.

Details..
Technical data..
In the box..
Download..
Manufacturer infos..
Safety informations..

TSOptics ToupTek AFW AFW Electronic Filter Wheel 7x 2 Inch

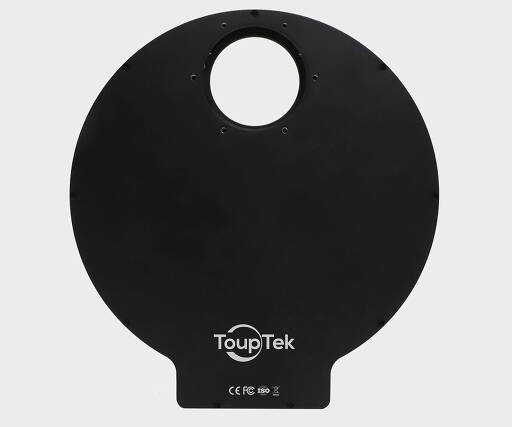

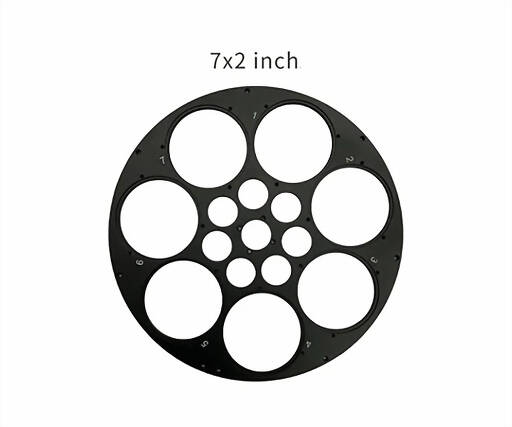

The TS/ToupTek 7x 2" AFW features a 7 position carousel for mounted 2" filters. This size filter is appropriate (depending on optical speed) for camera sensors up to full frame without vignetting.

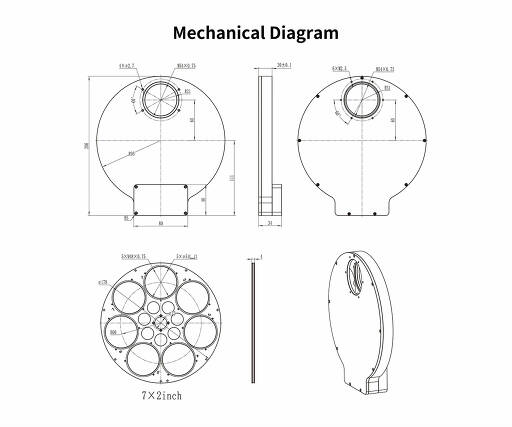

The filter wheel is 20 mm in optical length and has female M54 threads at both ends. It may also be bolted to other components such as cameras or off-axis guiders.

With the standard extenders and adapters included in the package, the TS/ToupTek AFW can reach 55 mm back focal distance perfectly with any TS/ToupTek TE-cooled camera. It is also compatible with other cameras with 17.5 mm back focal distance or 12.5 mm back focal distance.

TS/ToupTek Filter Wheel supports USB2.0 interface and also is powered through the USB2.0 connection. Users simply need to connect the filter wheel with any PC control device then the filter wheel is good to go.

Number of slots:	7
Filters supported:	2" mounted
Optical length:	20 mm
Adaptor connection:	M54 female thread at both sides, screw connection possible on the camera side
Drive:	Stepper motor
Power supply:	USB2.0
Software port:	ASCOM driver
Casing material:	Aluminium
Thickness of body (without motor cover):	20 mm
Weight:	510 g

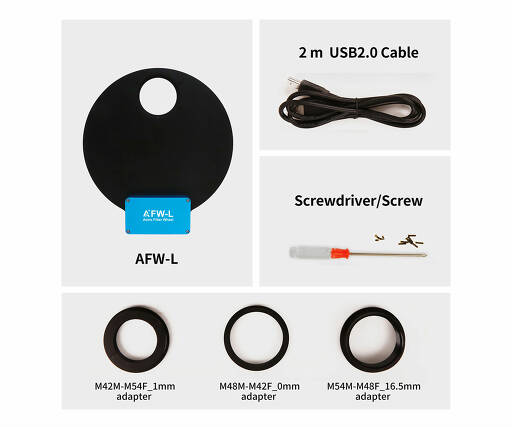

Automatic Filter wheel body

USB2 cable

Phillips head screwdriver plus screws

M42M-M54F adapter (length 1 mm)

M48M-M42F adapter (zero length)

M54M-M48F adapter (length 16.5 mm) to replace OAG

Manual

You can download the instructions for the filter wheel under the following link: AFW Manual

Opening the filter wheel for filter change and cleaning

You can download the instructions for opening the filter wheel under the following link: Instructions for opening the AFW

Manufacturer / Importeur:	ToupTek Astro
Street:	15F, Aoqiang Building 1, No. 6, Xiyuan 5th Rd.,
ZIP / City:	310030 Hangzhou, zhejiang
Country:	China
Telefon number:
Email:	support@touptek.com
Website:	touptek-astro.com
