ToupTek AFW-M Electronic Filter Wheel for 5x 2 Inch mounted Filters

Name: ToupTek AFW-M Electronic Filter Wheel for 5x 2 Inch mounted Filters
Brand: ToupTek
SKU: TSAFW5x2
Price: 319 EUR

The filter wheel holds up to five 2" filters and allows for electronic filter changes during astrophotography.

Suitable for 2" filters with M48x0.75 thread

5 filter slots allow for combinations such as L-RGB + H-Alpha

20 mm optical path allows for use even when space is limited

Combinations with off-axis guiders are possible

Power supply via USB 2.0 - only one cable required

Manufacturer: ToupTek

Product number: TSAFW5x2

EUR 319,00

incl. 19 % VAT (DE)

The VAT indicated refers to that applicable in Germany. After logging in, the VAT amount is adjusted to the applicable VAT of the stored delivery country. Therefore, the final price may vary accordingly.

excl. 6.95 € shipping costs (DE)

Please log in to calculate shipping costs to your country.

more details to the shipping costs ...

There are no reviews for this product

Roll over image to zoom in or klick it. The appropriate zoom factor ist adjustable with the mouse wheel.

ToupTek AFW-M Electronic Filter Wheel for 5x 2 Inch mounted Filters

The filter wheel holds up to five 2" filters and allows for electronic filter changes during astrophotography.

Suitable for 2" filters with M48x0.75 thread

5 filter slots allow for combinations such as L-RGB + H-Alpha

20 mm optical path allows for use even when space is limited

Combinations with off-axis guiders are possible

Power supply via USB 2.0 - only one cable required

Details..
Technical data..
In the box..
Manufacturer infos..
Safety informations..

ToupTek AFW-M Electronic Filter Wheel for 5x 2" Filters

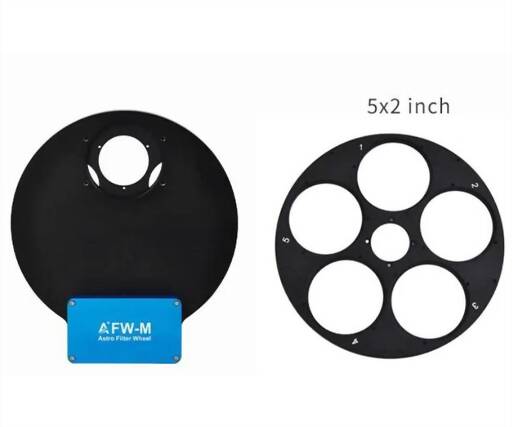

The ToupTek AFW-M features a 5-position carousel for mounted 2" filters with M48x0.75 filter thread. This filter size is suitable for camera sensors up to full frame (depending on optical speed).

The filter wheel has an optical length of 20 mm and features an M54 female thread at both ends. It can also be screwed onto other components such as cameras or off-axis guiders.

With the standard extenders and adapters included in the scope of delivery, the ToupTek AFW can achieve 55 mm flange focal distance with any TE-cooled ToupTek camera. It is also compatible with other cameras with a 17.5 mm flange focal distance or 12.5 mm flange focal distance.

The ToupTek Filter Wheel supports the USB 2.0 interface and is also powered via the USB 2.0 connection. The user simply needs to connect the filter wheel to a PC control system, and the filter wheel is ready for use.

Number of slots:	5
Supported filters:	Mounted filters with M48x0.75 filter thread
Optical path:	20 mm
Adapter connection:	M54 female thread on both sides
Drive:	Stepper motor
Power supply:	USB 2.0
Software interface:	ASCOM driver
Body material:	Aluminum
Body thickness (without motor cover):	20 mm
Weight:	510 g

Automatic Filter wheel body

USB2 cable

Phillips head screwdriver plus screws

M42M-M54M adapter (length 1 mm)

M48M-M42F adapter (zero length)

M54M-M48F adapter (length 16.5 mm) to replace an OAG
