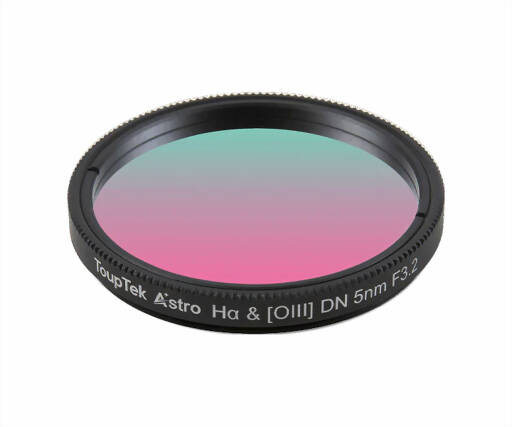

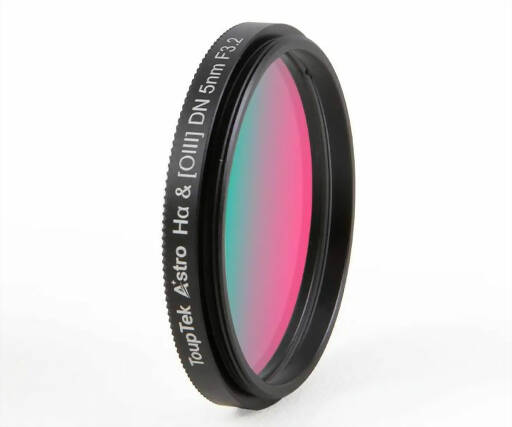

ToupTek PureSight A1 Dual Narrowband H-Alpha O-III Nebula Filter

ToupTek PureSight A1 H-Alpha O-III Dual Narrowband Nebula Filter

ToupTek Astro PureSight A1 H-alpha & [O III] Dual Narrowband Filter is designed for deep-sky astrophotography under light-polluted skies. With a precise 5 nm bandpass and optimization for fast optical systems, it enhances nebula contrast while effectively suppressing unwanted background light.


What is a Dual Narrowband Filter?

A dual narrowband filter is an astrophotography filter designed to isolate specific emission wavelengths, typically hydrogen-alpha (H-alpha) and oxygen III ([O III]). By transmitting only these narrow spectral bands, the filter significantly enhances the visibility of emission nebulae while suppressing background light pollution.

Dual narrowband filters are widely used for deep-sky astrophotography, especially when imaging nebulae from urban or suburban locations where sky brightness can reduce contrast.


High-Performance Dual Narrowband Filter for Fast Optical Systems

ToupTek Astro PureSight A1 H-alpha & O-III Dual Narrowband 5 nm f/3.2 Astronomical Filter is engineered specifically for astrophotography with fast optical systems.

With precisely controlled 5 nm FWHM bandpasses and center wavelengths optimized for fast optics, the filter delivers excellent performance on systems from f/3.2 and faster, achieving an ideal balance between strong light-pollution suppression and high signal transmission.

Advanced anti-reflection coatings and carefully controlled surface precision significantly reduce internal reflections, effectively suppressing halos and ghosting. The result is clean backgrounds, high contrast, and sharp stars, even when imaging from urban or suburban locations.


Key Features - Reduce the Effects of Light Pollution with Precise Narrowband Control

Astrophotographers often face challenges when imaging from urban or suburban locations where artificial lighting reduces contrast and washes out faint nebula structures.

The ToupTek Astro PureSight A1 dual narrowband filter features a 5 nm ultra-narrow FWHM bandpass precisely tuned to isolate H-alpha (656.3 nm) and [O III] (500.7 nm) emission lines. This allows key nebula signals to pass through while effectively blocking most sources of artificial light pollution.

With a blocking depth of OD >5.0 (0.001% transmission), the filter suppresses over 99.999% of unwanted light, including streetlights, neon lighting, and urban skyglow.

Higher-contrast nebula structures

Cleaner and darker background sky

Improved signal-to-noise ratio (SNR)

Key Features - Ideal for Emission Nebula Imaging

Dual narrowband filters are particularly effective when capturing emission nebulae that radiate strongly in H-alpha and [O III] wavelengths.

Orion Nebula (M42)

Rosette Nebula

Lagoon Nebula (M8)

Veil Nebula

When paired with a monochrome or color astronomy camera, the filter enhances faint nebula structures while maintaining natural star colors.


Key Features - High Compatibility

Standard M48×0.75 thread, compatible with filter wheels and filter drawers. The 2-inch format is suitable for full-frame and smaller color astronomy cameras.


Exceptional Image Purity

Halo-free performance with premium optical materials

High-purity fused silica substrate combined with IAD (Ion Assisted Deposition) coating for dense and uniform layers.

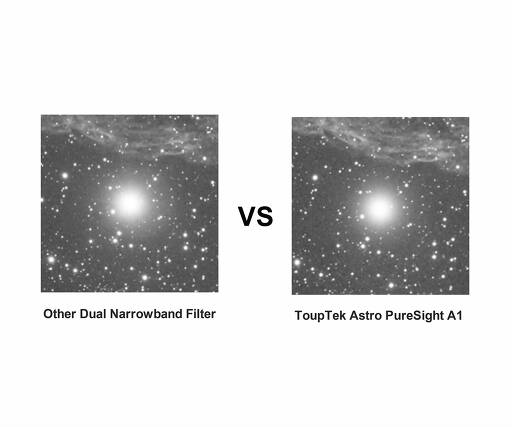

Advanced anti-reflection coatings significantly reduce internal reflections, halos, and ghosting (see the sixth image: on the left, another filter with a clearly defined halo; on the right, ToupTek with only slight brightening).

>90% peak transmission, <30" parallelism, and 60/40 surface quality (according to MIL specification) ensure a clean background and sharp stars.

Capture faint nebula details even from urban balconies or city skies.

- Filter

Safety informations: PDF Download
