Tecnosky FPL55 90/540 mm Apochromat, OWL Series

Name: Tecnosky FPL55 90/540 mm Apochromat, OWL Series
Brand: Tecnosky
SKU: TKOWL90
Price: 1449 EUR

Triplet apochromat with 90 mm aperture f/6 with imaging free of chromatism

Aperture 90 mm

Focal length 540 mm

Focal ratio f/6

FPL55 triplet objective with apochromatic imaging (similar to FPL53)

With measurement protocol - Strehl min. 0.95

2.5" RAP focuser with rotator, threaded connection and gear reduction

Sturdy carrying case

Manufacturer: Tecnosky

Product number: TKOWL90

EUR 1.449,00

incl. 19 % VAT (DE)

The VAT indicated refers to that applicable in Germany. After logging in, the VAT amount is adjusted to the applicable VAT of the stored delivery country. Therefore, the final price may vary accordingly.

excl. 11.95 € shipping costs (DE)

Please log in to calculate shipping costs to your country.

more details to the shipping costs ...

There are no reviews for this product

Roll over image to zoom in or klick it. The appropriate zoom factor ist adjustable with the mouse wheel.

Tecnosky FPL55 90/540 mm Apochromat, OWL Series

Triplet apochromat with 90 mm aperture f/6 with imaging free of chromatism

Aperture 90 mm

Focal length 540 mm

Focal ratio f/6

FPL55 triplet objective with apochromatic imaging (similar to FPL53)

With measurement protocol - Strehl min. 0.95

2.5" RAP focuser with rotator, threaded connection and gear reduction

Sturdy carrying case

Details..
Technical data..
In the box..
Reviews..
Manufacturer infos..
Safety informations..

Tecnosky 90/540 mm FPL55 Apochromat, OWL Series

This apochromatic refractor features a triplet objective with central Ohara FPL55 fluoride glass element. All lenses are blackened at the edges and FMC coated. The supplied optical measurement report shows a Strehl of min. 0.95!

The aluminum tube is equipped with lens hoods. The retractable dew shield makes the apo very transportable and even has room in airplane luggage.

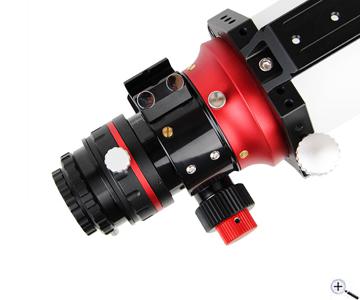

The generously sized focuser illuminates full-frame cameras and allows precise focusing with 1:10 dual speed. The integrated field rotator allows the camera to be rotated to the desired orientation for best framing. The 2" and 1.25" accessories are clamped gently. In addition, the focuser offers an auxiliary thread for screw adaptations.

Included is a dovetail bar (Vixen style). Other dovetails can be connected, including Losmandy style ones. A carrying handle allows convenient transport and also mounting of accessories such as guiding scopes.

For photographic use, Tecnosky offers an optional 0.8x flattener/reducer that gives the apochromat a fast focal ratio of f/4.8.

Astrophotographic results obtained with this telescope on Astrobin

Here you can find some astrophotographs made with this telescope model: Link to Astrobin

Aperture:	90 mm
Focal length:	540 mm
Focal ratio:	f/6
Objective:	FPL55 triplet
Coating:	Fully multicoated
Quality:	Strehl min. 0.95, with certificate
Focuser:	2.5" rack and pinion with rotation, dual speed 1/10 and scale
Connections on the eyepiece side:	M63x1 female thread, 2" and 1.25"

Apochromat with tube rings, dovetail bar and handle

Adapter 2" to 1.25"

Dust caps

Certificate

Case

Astrophotographic results obtained with this telescope on Astrobin

Here you can find some astrophotographs made with this telescope model: Link to Astrobin
