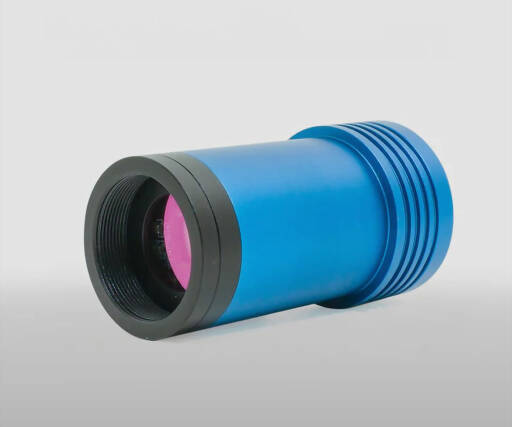

TS-Optics ToupTek GPM462M Mono Camera and Autoguider - Chip D=6.46 mm

Name: TS-Optics ToupTek GPM462M Mono Camera and Autoguider - Chip D=6.46 mm
Brand: -TS Zubehör
SKU: TS462MINI
Price: 299 EUR

A very sensitive autoguider for astrophotography from ToupTek, with high resolution IMX462 sensor and 1.25" body

Monochrome CMOS sensor IMX462 from Sony with a QE of over 89% for highest sensitivity - always find a guide star

Pixel size 2.9 µm - allowing you to guide large telescopes with small guiding scopes and to use finder guiding

Sensor size 5.6 x 3.1 mm

Practical 1.25" body - you can insert the autoguider / camera like an eyepiece into the guiding scope, finder or off axis guider.

A true lightweight with only 70 grams and not larger than a 1.25" eyepiece

Extensive scope of delivery: USB cable, ST4 autoguiding cable, C-CS mount adapter and 1.25" nosepiece

The camera can also be used as a high-grade lunar and planetary camera. Due to the high sensitive sensor even images of deep sky objects are possible.

C thread for the connection of lenses for industrial cameras, extension for CS lenses

Manufacturer: -TS Zubehör

Product number: TS462MINI

EUR 299,00

incl. 19 % VAT (DE)

The VAT indicated refers to that applicable in Germany. After logging in, the VAT amount is adjusted to the applicable VAT of the stored delivery country. Therefore, the final price may vary accordingly.

excl. 6.95 € shipping costs (DE)

Please log in to calculate shipping costs to your country.

more details to the shipping costs ...

Product expected to be available from 20.05.2024

There are no reviews for this product

Roll over image to zoom in or klick it. The appropriate zoom factor ist adjustable with the mouse wheel.

TS-Optics ToupTek GPM462M Mono Camera and Autoguider - Chip D=6.46 mm

A very sensitive autoguider for astrophotography from ToupTek, with high resolution IMX462 sensor and 1.25" body

Monochrome CMOS sensor IMX462 from Sony with a QE of over 89% for highest sensitivity - always find a guide star

Pixel size 2.9 µm - allowing you to guide large telescopes with small guiding scopes and to use finder guiding

Sensor size 5.6 x 3.1 mm

Practical 1.25" body - you can insert the autoguider / camera like an eyepiece into the guiding scope, finder or off axis guider.

A true lightweight with only 70 grams and not larger than a 1.25" eyepiece

Extensive scope of delivery: USB cable, ST4 autoguiding cable, C-CS mount adapter and 1.25" nosepiece

The camera can also be used as a high-grade lunar and planetary camera. Due to the high sensitive sensor even images of deep sky objects are possible.

C thread for the connection of lenses for industrial cameras, extension for CS lenses

Details..
Technical data..
In the box..

TS-Optics ToupTek GPM462M Monochrome Camera and Autoguider - Chip D=6.46 mm

The GPM462M is the ultimate autoguider and much more. The modern Sony IMX462 monochrome sensor convinces with an outstanding QE of over 80%. Only a few sensors achieve this sensitivity. Another special feature is the extremely high resolution due to 2.9 µm pixels. This makes this camera very interesting for astrophotography.

The advantages of the GPM462M as an autoguider

You always find a guide star, even with an off-axis guider - guaranteed!

With the high resolution, you can easily guide telescopes of up to 11" aperture with a 50 mm finder - guiding with the finder becomes possible.

The practical 1.25" housing makes adaption easy. Push the camera into the 1.25" receptacle, focus and get started with guiding.

Short working distance from the front surface to the sensor - you can reach focus even with short maximum distances.

With only 70 grams weight, the focuser is almost not loaded.

Of course, ST4 cable and ST4 port are supplied. Connect the camera directly to the autoguiding port of the mount.

The advantages of the GPM462M as an astro camera

Highly sensitive sensor combined with high resolution for ultimate lunar and planetary photographs.

Camera fits any 1.25" focuser. Clamp the camera like an eyepiece, focus and start astrophotography.

The high sensitivity makes the GPM462M suitable for photographing nebulae and galaxies.

The camera is equipped with a clear glass window filter that is also transparent in the infrared. This makes exciting infrared photography possible.

Spectral sensitivity
The sensor convinces not only with very high sensitivity, but also with a broad spectral range. The sensitivity stays very high even deep in the infrared. This means more stars for guiding, but also the exciting field of infrared photography (Venus, Mars ...) is accessible - less influence of seeing, so sharper images!

Product video
Teleskop-Service has made an overview video for ToupTek´s cameras:

Instructions:
An instruction manual are available from the manufacturer, you can download the PDF here.

Drivers and Software:
ToupTek provides drivers and software for this camera, you can download them here.

Sensor:	1/2.8" CMOS IMX462
Resolution:	2.1 megapixels, 1920x1080
Pixel size:	2.9 µm
Sensor size:	5.57 mm x 3.13 mm (diagonal 6.39 mm)
QE (Maximum):	89%
Readout noise:	0.76 e- to 2.61 e-
Exposure time:	0.1 ms - 1000 s
Frame rate at full resolution:	18 fps
ROI:	Supported
ST4 autoguider port:	Yes
Back focus distance:	8.5 mm only body, 17.5 mm with C mount adapter, 12.5 mm with CS mount adapter
Shutter type:	Rolling shutter
Entry window:	Anti-reflective coated window
Operating system compatibility:	Mac, Windows, Linux
Interface:	USB 2.0
Bit rate:	12 bit output (12 bit ADC)
Telescope connection:	1.25", M28.5x0.6 and C-mount
Size:	D=36 mm x 66 mm
Weight:	70 g
