Manufacturer: -TS Zubehör
Product number: TSL80D

EUR 269,00


incl. 19 % VAT (DE)
The VAT indicated refers to that applicable in Germany. After logging in, the VAT amount is adjusted to the applicable VAT of the stored delivery country. Therefore, the final price may vary accordingly.
excl. 6.95 € shipping costs (DE)
Please log in to calculate shipping costs to your country.
more details to the shipping costs ...

  • Item has delivery time
  • Please notify by email when available again.

  • I agree to my email address being saved.




Product expected to be available from 01.04.2025

Pre Order:



rating: 4.5 of 5
  • Details..
  • Technical data..
  • In the box..
  • Reviews..

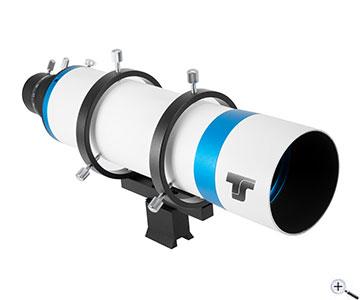

The 80 mm Guiding Scope is the right solution for astrophotographers who want a quality guiding scope with large aperture. You never will have problems to find a guiding star. The guiding scope fits standard finder shoes so you will have no problems with adaption.

The TSL80D is also a very powerful finder scope. 80 mm aperture shows hundreds deep-sky objects. The scope is a very powerful rich-field refractor. The scope also can be used as a video finder for remote observatories.

The 1.25" / T2 Non Rotating Helical Focuser:

The non rotating helical focuser allows precise focusing. If optimal sharpness is reached, just tighten the locking screw. The star remains exactly on its position without tilting or shifting. The focuser has 1.25" and T2 connection on the eyepiece and camera side.

Use of autoguiders with 1.25" housing, such as ASI120MINI or Lodestar: The focus is between 9 mm and 19 mm behind the 1.25" port. So the sensor would be too far inside. We simply recommend a good 1.25" adapter that screws onto the T2 thread. Suitable adapters are linked. Then the camera can be mounted easily, without focus problems.

Many cameras, like the ZWO MINI Guider, come with a 1.25" extension. With this you can also focus well. The extension should be turned out completely. However, you must not insert the camera completely.
Aperture:80 mm
Focal Length:328 mm
Focal Ratio:f/4.1
Objective:Achromatic 2-element objective - fully multicoated
Backfocus:19 mm (focuser in shortest position)
Focus range:8 mm
Total length:38 cm
Dew shield:89 mm diameter
Tube diameter:84 mm
Weight:1450 Gramms
80 mm Guiding scope with covers on the objective and focuser side
Guiding Scope rings
Holder for most finder interfaces (Vixen, Celestron, Skywatcher, GSO ...)

Suggestion from Teleskop Service:

M-Gen an das TSL80D perfect for photography

M-Gen and TSL60D - good for AstrophotographyImage: M-Gen with TSL60D


TSL80D and M-Gen are a good team for photography. With this combination you can guide focal lengths to 3000mm.


M-Gen: back focus 7mm from the T-thread
TSL80D: Focal plane 19mm (inner position) + 4mm T2 thread length = 23mm
Focus range TSL80D: 8mm
One 10mm T2 extension (TST2V10) is needed.

Adaptation of eyepieces:

Due to the focal plane of 19 mm behind the 1.25" receptacle and the relatively small focus range of 8 mm, we recommend an extension in order to bring an eyepiece into focus.

Eyepieces with 1.25" filter thread: TSVF1 (just screw this extension into the eyepiece´s filter thread)
Eyepieces without filter thread (e.g. TSIR20): TST2-1-T2s (Just screw this adapter into the focuser´s T-thread)




Recommended accessories

Reviews

Written by Pierre Giet
on 2024-01-09

"Pas encore utilis"

Written by MOHAMED MIMOUNI
on 2023-03-08

Good

Written by Björn Hellweg
on 2021-10-19

"Alles zur vollsten Zufriedenheit, wie immer alles TOP"

Written by Florin Keller
on 2021-06-03

"Für Autoguiding sehr gut! Fokuser präzise! "

Written by Florin Keller
on 2021-05-17

Ich werde das gerät als nur Leitrohr verwenden.
Mechanisch und äusserlich sehr gut verarbeitet .Okularauszug ist gut und feinfühlig einstellbar . Test mit einem Okular und ZWo 120 mm mini durchgeführt . Sterne bei 80 er Durchmesser sind auch am Horizont genug mit PHD2 multistar zu guiden . Mit einem Barlow 2X habe ich auch probiert und auch erfolgreich gewesen.
Preis / Leistung ist OK

Written by Tom Regnery
on 2021-05-05

"Es hat ein wenig gedauert, bis ich die Fokusposition mit dem MGEN 2 raushatte, dann aber hat alles sehr gut funktioniert. Allerdings kommen mir die Leitsterne im MGEN 2 ?dicker? vor als mit anderen Leitrohren. Das scheint bis jetzt keine Auswirkungen auf die Nachführgenauigkeit zu haben."

Written by Michael Buk
on 2021-05-04

"Ich nutze das Leitrohr an meinem C11 als Sucherteleskoo und zum Guiden mit meiner ZWO ASI120 Mini. Das Leitrohr ist robust und hat ein helles Bild. Sehr zu empfehlen."

Written by Michael Umlauf
on 2020-08-25

"Sehr klares Bild "

Written by Gundo Klebsattel
on 2020-08-19

"Leitsterne sind gut zu finden."

Written by Michael Holl
on 2017-05-12

"Preis-Leistung passt. Gute solide Verarbeitung. Kein Sucher sondern ein Finder!"

Written by Marijan Galijan
on 2017-03-03

"Etwas kurzer Auszug, ansonsten sehr gut für Autoguiding."

Written by Bernd Henrichs
on 2016-07-05

"Hatte bislang das TS Optics 60 mm Delux Leitrohr im Einsatz. Gutes, qualitativ hochwertiges Leitrohr, allesdings mit einer zu geringen Brennweite für mein SC 9.25. Nach Umstieg auf das 80 mm Delux Leitrohr klappt es mit der Nachführung nun deutlich besser. Helikal-Mikrofokussierung wird eigentlich nicht benötigt, da die Verbindung zwischen Leitrohr und Guider möglicht starr sein sollte. "
