ToupTek G3M678C Color Planetary Camera and Autoguider - IMX678C D=8.86 mm

Name: ToupTek G3M678C Color Planetary Camera and Autoguider - IMX678C D=8.86 mm
Brand: ToupTek
SKU: G3M678C
Price: 319 EUR

The camera offers very high resolution for lunar and planetary photography. It can also be used for EAA, long exposure, and as an autoguider.

Sensor: 1/1.8" CMOS IMX678 with 8.29 megapixels resolution

Sensor size: 7.68 mm x 4.32 mm - diagonal: 8.86 mm

Practical 1.25" body, you can insert the camera into the telescope or off-axis guider like an eyepiece

Extremely high resolution: 2.0 µm pixels

SONY STARVIS 2 technology - back-illuminated pixel technology

With up to approx. 83% QE, high sensitivity for short exposure times

USB 3.0 for fast image download

Very low readout noise (from 0.42 e-)

Well suited for EAA due to high frame rate of 47 fps

12-bit ADC

Well suited for deep sky imaging

Sun and Moon are completely shown up to approx. 430 mm focal length

Built-in AR protection filter with full transmission even in infrared

Includes ST4-level autoguiding interface

No more amp glow detectable

Extensive scope of delivery, including USB and ST4 cables, C-mount adapter, 1.25" extension tube

Manufacturer: ToupTek

Product number: G3M678C

EUR 319,00

incl. 19 % VAT (DE)

The VAT indicated refers to that applicable in Germany. After logging in, the VAT amount is adjusted to the applicable VAT of the stored delivery country. Therefore, the final price may vary accordingly.

excl. 6.95 € shipping costs (DE)

Please log in to calculate shipping costs to your country.

more details to the shipping costs ...

There are no reviews for this product

Roll over image to zoom in or klick it. The appropriate zoom factor ist adjustable with the mouse wheel.

ToupTek G3M678C Color Planetary Camera and Autoguider - IMX678C D=8.86 mm

The camera offers very high resolution for lunar and planetary photography. It can also be used for EAA, long exposure, and as an autoguider.

Sensor: 1/1.8" CMOS IMX678 with 8.29 megapixels resolution

Sensor size: 7.68 mm x 4.32 mm - diagonal: 8.86 mm

Practical 1.25" body, you can insert the camera into the telescope or off-axis guider like an eyepiece

Extremely high resolution: 2.0 µm pixels

SONY STARVIS 2 technology - back-illuminated pixel technology

With up to approx. 83% QE, high sensitivity for short exposure times

USB 3.0 for fast image download

Very low readout noise (from 0.42 e-)

Well suited for EAA due to high frame rate of 47 fps

12-bit ADC

Well suited for deep sky imaging

Sun and Moon are completely shown up to approx. 430 mm focal length

Built-in AR protection filter with full transmission even in infrared

Includes ST4-level autoguiding interface

No more amp glow detectable

Extensive scope of delivery, including USB and ST4 cables, C-mount adapter, 1.25" extension tube

Details..
Technical data..
In the box..
Manufacturer infos..
Safety informations..

ToupTek G3M678C Color Astro Camera and Autoguider

The camera is equipped with a modern SONY IMX678C sensor.The new SONY STARVIS and Exmor-R technology produces very low-noise images with high sensitivity at the same time. Added to this is a very high resolution thanks to particularly small 2 µm pixels. The result is a very versatile camera that delivers excellent results for a wide range of requirements. Among other things, the camera is well suited for:

Lunar and planetary photography - the small pixels allow you to take high-resolution images of the moon and planets without extending the focal length, e.g., with a Barlow lens.

Solar photography with a suitable filter - up to approx. 430 mm focal length, the sun (or moon) is completely shown

EAA (Electronically Assisted Astronomy) of these objects through a suitable frame rate

Autoguiding - a guide star is always found, here too the guiding accuracy is very high due to the 2.0 µm pixels

Deep sky photography: the high sensitivity of the sensor allows capturing nebulae and galaxies with short exposure times. High-resolution images of bright objects, such as the center of M42, the Hourglass Nebula, or compact, bright planetary nebulae, can easily be achieved with this camera.

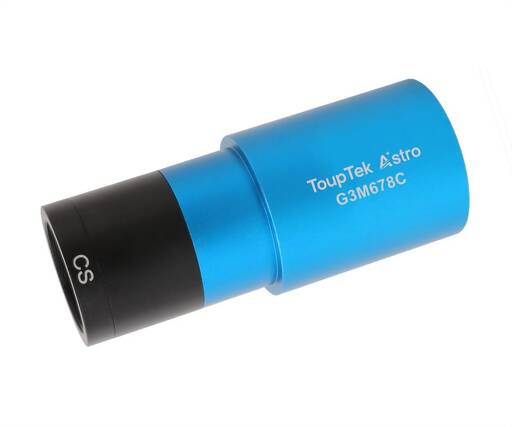

The practical 1.25" body:
The camera comes with a compact 1.25" body. This makes it easy to connect to the telescope. The camera is inserted into the focuser like an eyepiece and focused. You can start astrophotography immediately. In addition, the body is equipped with a female C-mount thread on the telescope side. This allows you to screw the camera to the telescope or a camera lens.

Drivers and online user manuals
The manufacturer ToupTek offers current drivers and a user manual on its website. Here are the links:
Manual
Drivers

Product videos
Teleskop-Service has created an overview video for the ToupTek cameras:

A second video deals with the setup and configuration of the cameras:

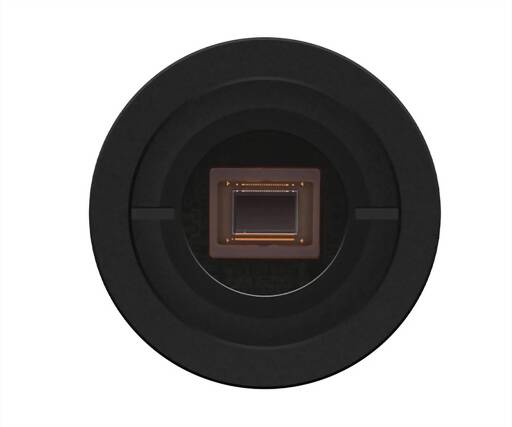

Sensor:	Sony 1/1.8" CMOS IMX678AAQR1-C color sensor
Resolution:	3840*2160 pixels, 8.29 megapixels
Pixel size:	2.0 µm
Sensor size:	7.68 mm x 4.32 mm
Diagonal:	8.86 mm (1/1.8")
Recording speed:	up to 47 fps at 10 bit
Exposure time:	from 100 µs - 1000 s
ROI:	Supported
ST4 autoguider port:	Yes
Protective window:	AR coated, full IR transmission
Connection:	USB3.0
Bit resolution:	12 bit ADC
Telescope connection:	1.25", M28.5x0.6 and C-mount
Size:	D=37 mm x 72.4 mm
Weight:	70 grams

Camera

USB3.0 cable

ST4 cable

Adapter M28.5 - C

1.25" extension tube

Dust cap

Manufacturer / Importeur:	ToupTek Astro
Street:	15F, Aoqiang Building 1, No. 6, Xiyuan 5th Rd.,
ZIP / City:	310030 Hangzhou, zhejiang
Country:	China
Telefon number:
Email:	support@touptek.com
Website:	touptek-astro.com
