Omegon Camera veTEC 455 M Mono cooled, Sensor D=43.3 mm

Omegon Camera veTEC 455 M Mono cooled, Sensor D=43.3 mm

Equipped with the full-frame Sony IMX455 sensor, the Omegon Pro veTEC 571 M is the ultimate deep-sky camera. Its 3.76 µm pixel size ensures highly detailed images.

High quantum efficiency (~80%)

Low readout noise (0.9 to 2.9 e^-)

High full-well capacity (50,000 e^-- (LCG))

ADC: 16-bit

Zero-Amp-Glow: no amplifier glow

Professional deep-sky astrophotography: The large sensor is ideal for capturing expansive nebulae, star fields, or the lunar surface. Unlike most planetary cameras, this sensor is comparable to the generously sized sensors found in DSLR cameras.

Thermoelectric cooling: The cooling system reduces image noise. At temperatures up to 35 °C below ambient temperature, the noise caused by dark current is almost completely gone. In addition, precise control of the sensor temperature is very helpful for calibrating astrophotographs with dark frames: They all can be captured at the correct temperature. The final images are impressively low in noise.

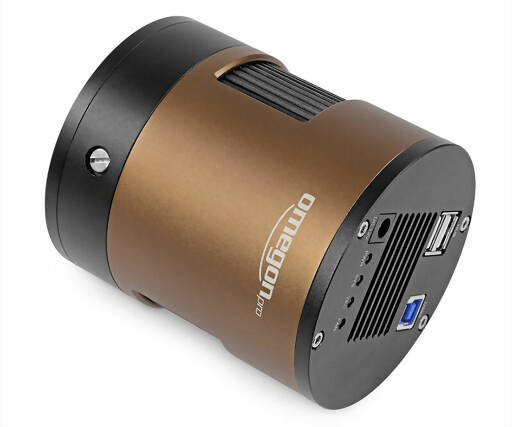

Additional Ports - USB hub: Two additional USB ports on the back of the camera help reduce cable clutter! Additional devices (such as a guiding camera) can be easily connected to this hub. An additional cable connection to your PC from each individual device is a thing of the past!

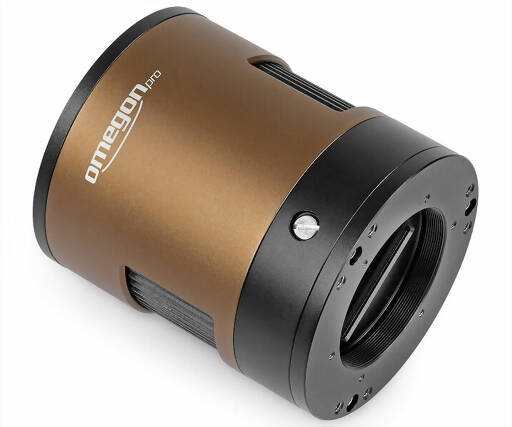

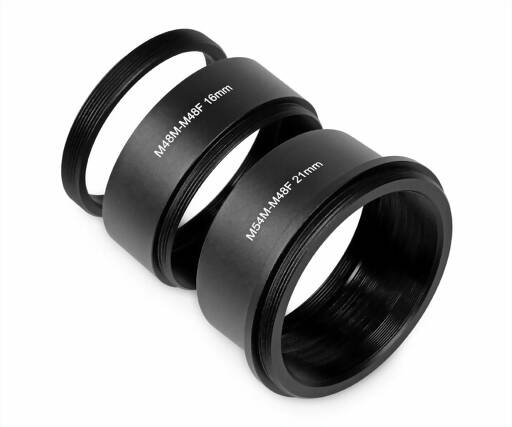

Working distance - telescope adaptation: The camera can be attached to almost any astrophotography setup - thanks to its M54x0.75 female thread and short back focus of just 17.5 mm. A 21 mm long adapter from M48x0.75 (the adapter has an internal thread) to M54x0.75 external thread and a 16 mm long M48x0.75 extension for achieving the standard working distance of 55 mm are also included in the package. A T2 adapter ring completes the mounting options but causes slight vignetting in the corners. The 2" outer diameter of the adapters of course also allows for a telescope connection like with any 2" eyepieces.

Sturdy carrying case: The provided sturdy case with fitting foam inlet gives anyone peace of mind when transporting or storing this valuable camera.

Professional planetary, lunar and solar astrophotography: Capturing the shadows of Jupiter´s moons, divisions in Saturn´s rings, detailed mountain ranges on the Moon or impressive prominences on the surface of the sun - these impressive targets in our solar system can only be photographed properly with a very high frame rate: This freezes the so called seeing, turbulences of the atmosphere that usually hide details from view. This ´lucky imaging´ technique is now a breeze, thanks to sophisticated electronics and the high bandwidth of the camera´s USB3.0. We recommend the Region-Of-Interest feature of the supplied Omegon AstroPhotoCapture software: This optimizes the frame rate by reading out only the relevant part of the sensor that contains the planet or detail you are interested in.

Transmission: A filter protects the sensor chamber from dust and moisture. Omegon Pro color cameras are equipped with an infrared-blocking filter. Otherwise, CMOS sensors would also capture the incoming infrared light, making accurate color reproduction in the final image impossible. On the other hand, Omegon Pro monochrome cameras feature an anti-reflective coated window that transmits ultraviolet and infrared light in addition to visible light. This means that by using additional filters, you have complete control over the transmission curve - a fundamental requirement for advanced photographic or photometric applications.

Convenient capture software: The included software Omegon AstroPhotoCapture allows straightforward and easy-to-learn camera control. The correct camera settings during the capture process are crucial for astrophotography. AstroPhotoCapture gives you full control over every parameter of your camera, without an overburdening interface. Easy to follow tutorials cover the capture process step for step, to make your first astrophotography session successful. The software is compatible with Windows 10 und 11.

Compatibility: The Omegon Pro cameras are compatible with a wide range of available astrophotography programs through the common interfaces ASCOM and INDI. Native compatibility is also being added to a growing number of programs, like PHD2 and N.I.N.A.

Downloads
Software, manual and drivers are downloadable from the manufacturer´s site:

User Manual (PDF)

Capture software ToupTek ToupSky

ASCOM Driver

ASCOM Camera Driver (old)

DirectShow Driver

ASCOM ST4 Driver

Omegon Pro SDK

Dimensions

Good storage is an important preventive measure against dew and also extends the service life
After use, put the camera straight into the TS Protect Case and add some silica gel. During storage, the silica gel absorbs the moisture from the camera. At the same time, the penetration of moist room air is prevented. Dry storage can even partially regenerate the small desiccant tablets in cooled cameras. Your camera or accessories are always ready for you in optimum condition. You can find the silica gel and the case in our product recommendations.

The cameras are not airtight, so if the camera remains on the telescope, it is exposed to moisture. The small amount of desiccant in the camera can protect the sensor and the inside of the protective glass from moisture for the duration of the exposure, but not for days on end. Moisture problems can be the result. A simple trick is to stretch a plastic bag around the focuser to which the camera is attached so that no air can get in. Silica gel is placed in a small cloth bag inside the plastic bag. This will also create a "dry climate zone" for the camera on the telescope. This allows you to leave the camera on the telescope for a few days for an imaging session lasting several days.

In the medium and long term, however, this is no substitute for proper storage in an airtight case with silica gel.

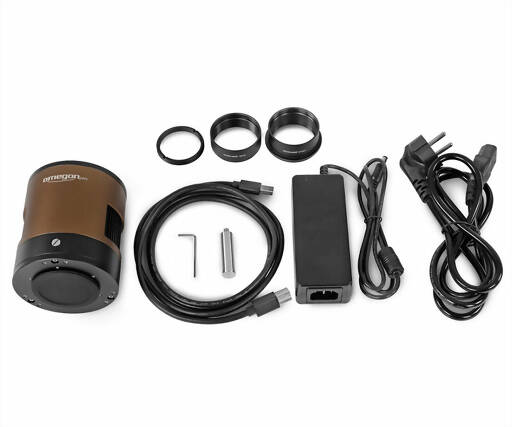

- Camera
- M48/2" adapter
- M48 extension tube (for 55 mm backfocus)
- T2 adapter ring
- USB 3.0 cable
- 12 V 3 A power supply (EU plug)
- Sturdy carrying case
- Desiccant plug

Safety informations: PDF Download
