APM Doublet SD APO 140 f/7 FPL53 OTA

Name: APM Doublet SD APO 140 f/7 FPL53 OTA
Brand: APM
SKU: APM140-725
Price: 3090 EUR

From intricate double star observing to high contrast detailed planetary views, this scope will introduce Astronomy enthusiasts to APM quality.

Doublet ED apo with FPL53 element and 140 mm aperture

Relaxed focal ratio of 1:7

Simple eyepieces with much contrast usable

Lightweight, can be supported by compact mounts

Stable 2.5" focuser with rack-and-pinion drive and 1:10 speed reduction

Can easily be retrofitted with a Feathertouch focuser to meet extreme demands

Manufacturer: APM

Product number: APM140-725

EUR 3.090,00

incl. 19 % VAT (DE)

The VAT indicated refers to that applicable in Germany. After logging in, the VAT amount is adjusted to the applicable VAT of the stored delivery country. Therefore, the final price may vary accordingly.

excl. 11.95 € shipping costs (DE)

Please log in to calculate shipping costs to your country.

more details to the shipping costs ...

There are no reviews for this product

Roll over image to zoom in or klick it. The appropriate zoom factor ist adjustable with the mouse wheel.

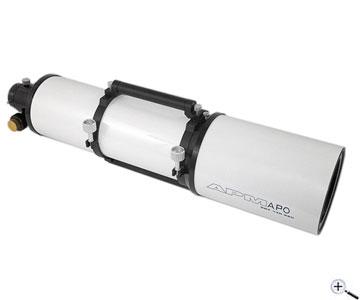

APM Doublet SD APO 140 f/7 FPL53 OTA

From intricate double star observing to high contrast detailed planetary views, this scope will introduce Astronomy enthusiasts to APM quality.

Doublet ED apo with FPL53 element and 140 mm aperture

Relaxed focal ratio of 1:7

Simple eyepieces with much contrast usable

Lightweight, can be supported by compact mounts

Stable 2.5" focuser with rack-and-pinion drive and 1:10 speed reduction

Can easily be retrofitted with a Feathertouch focuser to meet extreme demands

Details..
Technical data..
In the box..
Reviews..
Manufacturer infos..
Safety informations..

APM Doublet SD APO 140 f/7 FPL53 OTA

APM has painstakingly engineered an optical and tube solution to bring you APM quality at an unheard price. The 140 mm SD Apo features a doublet lens cell using SD glass FPL53 to maximize performance. Their innovative combination of materials and design has resulted in optical performance far beyond the normal for a telescope of this price. As with all APM telescopes, consistency is assured and each telescope goes through an interferometrical test at the 532 nm (green) wavelength before shipping.

With 980 mm focal length, the 140 mm SD Apo is an impressive all-rounder. From intricate double star observing to high contrast detailed planetary views, this scope will introduce astronomy enthusiasts to APM quality.

Traditional APM quality has been applied in all areas. The 2.5" focuser is a rack and pinion type, with 1:10 focusing. It remains rigid under high loads, making it suitable for imaging. The attention to detail extends to areas like the 2" and 1.25" eyepiece adapters. These use a design of collar clamp, far superior to the common brass compression rings found on lesser designs. Of course, if you would like to use a Starlight Instruments Feather Touch (model FTF3035B-A) then this can be supplied as an option, for that reason the tube end has threads M109 x 1 and M95 x 1 to accept a 3" or 2.5" Starlight focuser.

Imaging accessories for the 140-980 include a 2.5" (Order Nr. TSFlat2,5) field flattener which maintains the focal length. There is also a dedicated Massimo Riccardi designed APM Reducer. This changes the focal length by a factor of x0.75, resulting in a 735 mm focal length and fast f/5.25 aperture.

Astrophotographic results obtained with this telescope on Astrobin

Here you can find some astrophotographs made with this telescope model: Link to Astrobin

Lens type:	Doublet ED apo with FPL53 element
Tube color:	Black / white
Tube material:	Aluminium
Aperture:	140 mm
Focal ratio:	f/7
Focal length:	980 mm
Coating:	Multicoated
Resolution:	0.83"
Limit value:	12.5 mag
Max. useful visual power:	280 x
Backfokus:	180 mm
Focuser:	2.5" APM focuser, 360° rotatable, with 1/10 micro focusing
Connection eyepiece side:	1.25" and 2"
Connection to eyepiece:	M68 female / 2" / 1 1/4" with adapter
Viewfinder:	none supplied
Tube diameter:	152 mm
Length during observing:	1030 mm
Transportation length:	830 mm
Dewcap diameter:	186 mm
Length of dewcap:	290 mm
Tube weight:	8.8 kg (19.38 lb) incl. tube rings

Optical Tube Assembly

1 Pair of tube rings with handle

2.5" focuser with 1:10 microfocusing

Losmandy-style dovetail

Shoe for finder bracket

Astrophotographic results obtained with this telescope on Astrobin

Here you can find some astrophotographs made with this telescope model: Link to Astrobin
