TS-Optics 0.8x reducer and field corrector for 102 mm f/7 SD Apo

Name: TS-Optics 0.8x reducer and field corrector for 102 mm f/7 SD Apo
Brand: -TS Zubehör
SKU: TSRED102F7-2E
Price: 199 EUR

This corrector is optimized for the TS 102 mm SD Apo with the 2-element objective and allows astrophotography with sensors up to full frame format.

The corrector offers a flat and fully corrected image field up to full frame format

The image field corrector is designed and optimized for the TS 102 mm f/7 SD-Apo

The telescope focal length is reduced to 571 mm, the focal ratio is improved to f/5.6

Connection to the focuser via the M63x1 thread, the corrector is screwed to the focuser

Connection at the camera side via the M48x0.75 thread

Working distance is 55 mm to the camera sensor

An internal thread for 2" filters is included with the M48 adapter

Manufacturer: -TS Zubehör

Product number: TSRED102F7-2E

EUR 199,00

incl. 19 % VAT (DE)

The VAT indicated refers to that applicable in Germany. After logging in, the VAT amount is adjusted to the applicable VAT of the stored delivery country. Therefore, the final price may vary accordingly.

excl. 6.95 € shipping costs (DE)

Please log in to calculate shipping costs to your country.

more details to the shipping costs ...

Product expected to be available from 30.04.2024

There are no reviews for this product

Roll over image to zoom in or klick it. The appropriate zoom factor ist adjustable with the mouse wheel.

TS-Optics 0.8x reducer and field corrector for 102 mm f/7 SD Apo

This corrector is optimized for the TS 102 mm SD Apo with the 2-element objective and allows astrophotography with sensors up to full frame format.

The corrector offers a flat and fully corrected image field up to full frame format

The image field corrector is designed and optimized for the TS 102 mm f/7 SD-Apo

The telescope focal length is reduced to 571 mm, the focal ratio is improved to f/5.6

Connection to the focuser via the M63x1 thread, the corrector is screwed to the focuser

Connection at the camera side via the M48x0.75 thread

Working distance is 55 mm to the camera sensor

An internal thread for 2" filters is included with the M48 adapter

Details..
Technical data..
In the box..

TS 0.8x image field corrector for the 102 mm f/7 SD Apo

The SD apochromats from Teleskop-Service offer an image without chromatic aberration through the use of two special glasses in the 2-element objective. Now we offer a corrector and reducer for astrophotography, which was specially designed for this objective and allows very good photographic results. The corrector reduces the focal length from 714 mm to 571 mm and improves the focal ratio from f/7 to f/5.6. The correction is even suitable for full-frame sensors. However, a FLAT is required to counteract slight vignetting. The illumination is very good up to APS-C.

Connecting the corrector to the telescope:
The corrector is screwed directly to the focuser via the M63x1 thread. This ensures optimum hold and the best possible illumination. Even with heavy cameras, there is no risk of tilting.

Connecting the camera to the corrector:

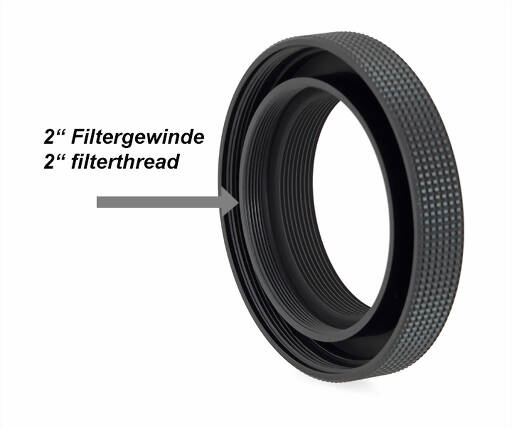

The corrector has an M48x0.75 thread on the camera side. The working distance from this thread is 55 mm. This allows you to easily connect almost all cameras. Suitable T-rings are linked. If you unscrew the camera adapter, you will find an internal thread for 2" filters.

Optical system:	Focal length reducer and image field corrector for astrophotography
Focal length reduction:	Reduction of the focal length by a factor of 0.8x

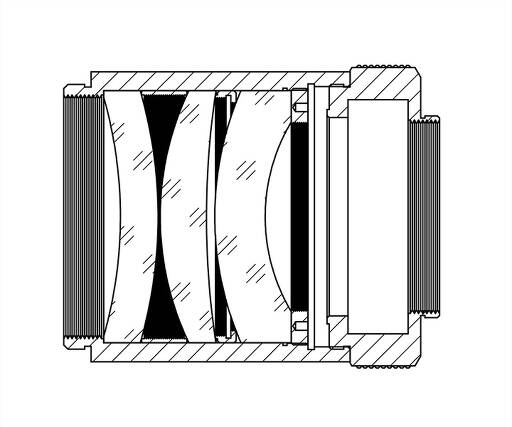

Elements:	Three air-spaced elements
Connection telescope side:	M63x1 male thread
Connections on camera side:	M48x0.75 male thread
Working distance from the M48x0.75 male thread:	55 mm to the sensor
Length of the corrector without the external thread:	60.5 mm
Diameter of the corrector:	71.5 mm
