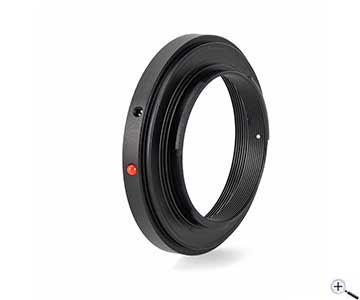

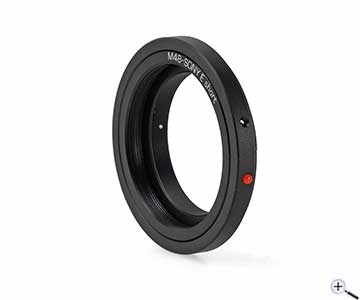

TS-Optics Wide T-Ring for Sony E/Nex Alpha mount with M48 connection

Name: TS-Optics Wide T-Ring for Sony E/Nex Alpha mount with M48 connection
Brand: -TS Adapter
SKU: M48SonyE
Price: 31.95 EUR

TS short M48 adapter for connecting Sony Nex and Sony Alpha cameras to telescopes and camera lenses

Connection telescope side: M48x0.75 female thread

Connection camera side: Sony Nex / E-mount

Ultra-short height of only 8.5 mm leaves enough space for accessories

Working distance from M48 thread to sensor is only 26.5 mm (with a camera flange focal distance of 18 mm)

Maximum illumination through the M48 thread, ideal for larger camera sensors

Manufacturer: -TS Adapter

Product number: M48SonyE

EUR 31,95

incl. 19 % VAT (DE)

The VAT indicated refers to that applicable in Germany. After logging in, the VAT amount is adjusted to the applicable VAT of the stored delivery country. Therefore, the final price may vary accordingly.

excl. 6.95 € shipping costs (DE)

Please log in to calculate shipping costs to your country.

more details to the shipping costs ...

There are no reviews for this product

Roll over image to zoom in or klick it. The appropriate zoom factor ist adjustable with the mouse wheel.

TS-Optics Wide T-Ring for Sony E/Nex Alpha mount with M48 connection

TS short M48 adapter for connecting Sony Nex and Sony Alpha cameras to telescopes and camera lenses

Connection telescope side: M48x0.75 female thread

Connection camera side: Sony Nex / E-mount

Ultra-short height of only 8.5 mm leaves enough space for accessories

Working distance from M48 thread to sensor is only 26.5 mm (with a camera flange focal distance of 18 mm)

Maximum illumination through the M48 thread, ideal for larger camera sensors

Details..
Technical data..
In the box..
FAQ..

TS M48 T-Ring, short, for Sony E/NEX mount

This M48 adapter allows the connection of cameras with the E mount to the M48 thread (M48x0.75). Due to the short design (18 mm camera, 8.5 mm T-ring), adaptations with filter drawers or off-axis guiders become possible for the first time. The connection to camera lenses with transition adapters is also no problem.

In addition, the illumination is significantly improved by the short design of the adapter. Thus, in combination with the TSVF230 extension tube, this adapter is perfectly suited for the connection to a 2" receptacle and even illuminates full frame format, such as the SONY Alpha 7 camera.

The adapter fits among others: Sony NEX 3 - NEX7, A3000, A5000, A6000, A7, α-cameras with E-mount interchangeable lenses.

The flange focal distance of the Sony A7, A7R and A7S cameras is 18 mm

Use of Canon EOS lenses on Sony cameras

This adapter also allows Canon EOS lenses to be used on Sony Alpha cameras. The working distance of the lens is 44.5 mm (bayonet to sensor). For the transition you need:

TSEOS-M48S ... Adapter with Canon EOS mount - female - height 10 mm

TSVF208 ... M48 extension tube - height 8 mm

M48SonyE ... TS Wide T-Ring with M48 connection - height 8.5 mm

This allows you to focus EOS lenses. The transition is mechanical only. Autofocus signals or aperture settings are not transferred.

Connection lens side:	M48 female thread
Connection camera side:	Sony Nex / E-mount
Effective height of the adapter:	8.5 mm

1x T-Ring

Question:
What is the flange focal distance?

Answer from Teleskop-Service:
The flange focal distance describes the distance from the mount of the camera to the position of the sensor. System cameras usually have a flange focal distance between 18-20 mm, SLR cameras have a flange focal distance of 44-45 mm.
