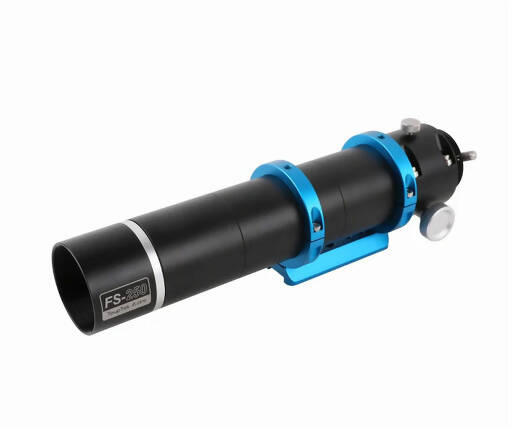

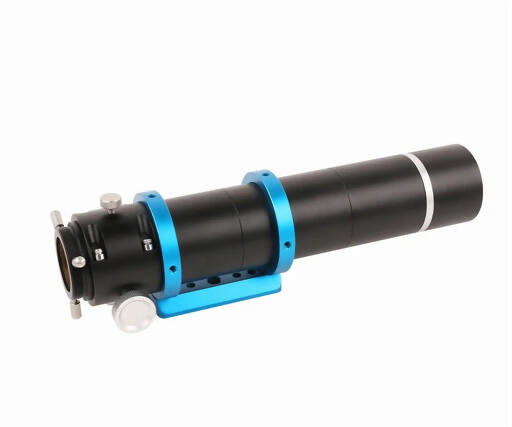

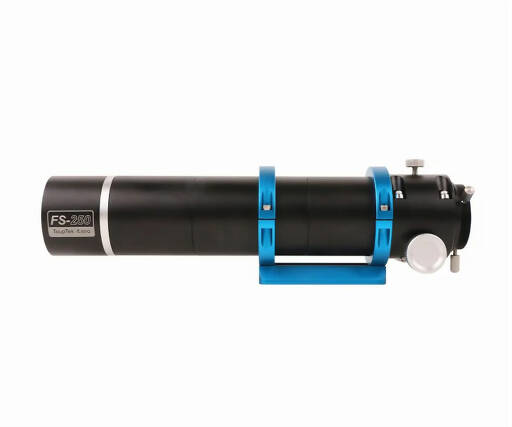

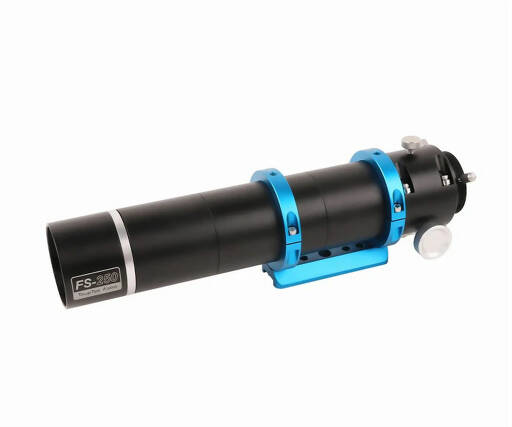

TS-Optics ToupTek Guide Scope with D=45 mm and f=250 mm

TS-Optics ToupTek Guide Scope with 45 mm aperture and 250 mm focal length

One scope with multiple functions - your practical choice

This astro finder / guide scope integrates star finding, guiding, viewing, and photography into a single device. Whether assisting in locating celestial bodies, locking onto observation targets, conducting daily observations, or capturing the beauty of the night sky with an attached camera, it excels at all tasks. This versatility provides users with a convenient and practical experience in one scope.

Exceptional Optics, Precise Imaging
The Finder/Guide Scope features 45 mm aperture with multi-layer broadband coated lenses, ensuring high light transmission and sharpness. This results in finer star points and provides better guiding images.

Sturdy Structure, Flexible Assembly
The entire body is CNC machined from aerospace-grade aluminum alloy, ensuring high-precision fit and structural stability. The primary lens tube features a semi-modular design, allowing the four-section assembly to be freely removed and flexibly adapted to various observation and photography needs. The standard 1.25" interface at the end is compatible with mainstream guide cameras, and by removing the three-point locking screws, it can connect to cooled or planetary cameras with an M42 interface, offering strong compatibility. In this case, we suggest our TST2Rot rotation adapter for aligning.

Recommended to be used in combination with our guide cameras.

Precise Control, Convenient and Easy to Use

ToupTek Blue Accent Mounting Rings: create an elegant and eye-catching visual effect.

Top and Side M5 Threaded Holes: accommodate various astronomical product combinations.

Dovetail Plate: rounded edges at the front and rear for an outstanding feel, with multiple M6 threaded holes at the bottom.

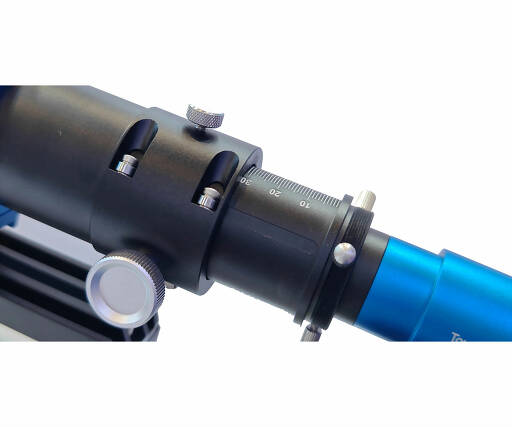

High Precision, Long-Travel Focusing Mechanism: direct focus for smooth operation.

Chamfered Knurled Focusing Knob: Elegant and easy to handle.

Laser-Engraved Focusing Tube Scale: helps users quickly and accurately find the focus position.

The design inherits the classic Crayford focusing concept of John Wall, featuring four bearing points arranged at the front and back, with a central focusing spindle forming a triangular support structure. This ensures sensitive and precise focusing with quick response, effectively preventing common issues such as image drift and backlash typically found in traditional rack-and-pinion focusing.

3/8 Inch Screw Hole: allows for easy attachment to ball heads and other mounts.

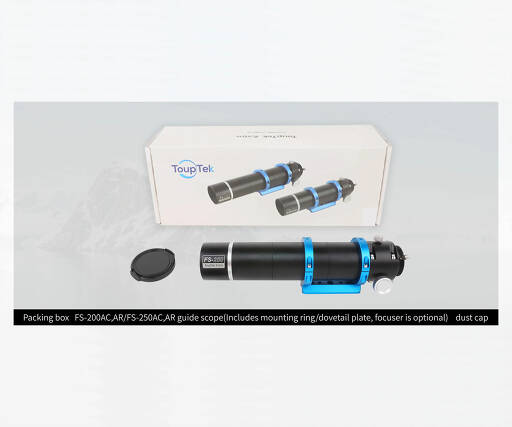

- Guide scope with focuser
- Tube rings
- Dovetail bar
- Dust cap for front

Safety informations: PDF Download
