Manufacturer: Skywatcher
Product number: 10988
EUR1069.00new
EUR 1.069,00RRP EUR 1.199,00you save 10.8% (EUR 130,00)
incl. 19 % VAT (DE)
The VAT indicated refers to that applicable in Germany. After logging in, the VAT amount is adjusted to the applicable VAT of the stored delivery country. Therefore, the final price may vary accordingly.
excl. 7.95 € shipping costs (DE)
more details to the shipping costs ...Please log in to calculate shipping costs to your country.
Product expected to be available from 01.12.2026
rating: 5.0 of 5Acuter Elite Phoenix 40 H-Alpha Solar Telescope1
- Details..
- Technical data..
- In the box..
- Reviews..
- Manufacturer infos..
- Safety informations..

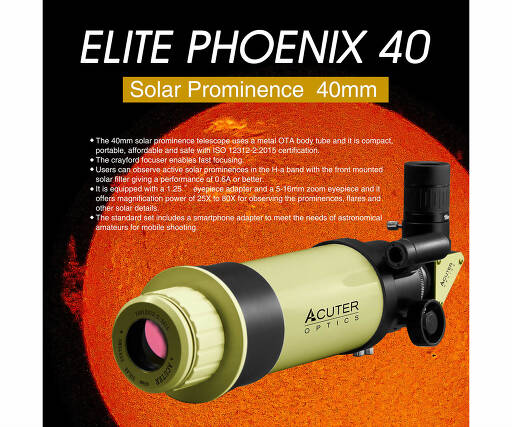

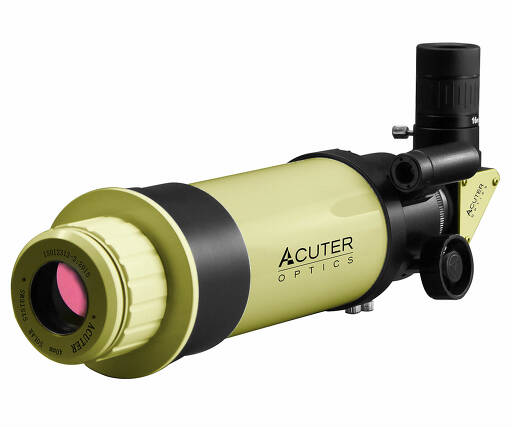

Acuter Elite Phoenix 40
40 mm f/10 H-alpha Solar TelescopeThe Acuter Elite Phoenix 40 represents a remarkable level of specification and performance at its price level!
The Acuter Acuter Elite Phoenix 40 is a safe solar telescope equipped with a 40 mm aperture front mounted etalon for the observation of active solar prominences and other solar details in the H-alpha band, with a performance of 0.6 angstroms or better.
Viewing the Sun in the narrow H-alpha band, the observer is rewarded with exciting, awe-inspiring real-time views of our nearest star in its full fiery majesty, seething with activity and revealing exciting details such as solar flares, prominences, spicules, granulation, sunspots and more!
The telescope is supplied with a universal smartphone camera adapter so that you can take photos with your cell phone to keep a photographic record of your observations. An additional UV/IR blocking filter is not necessary because these ranges are already blocked.
The Acuter Elite Phoenix 40 conforms to and meets the transmission requirements of ISO 12312-2:2015 (filters for the direct observation of the Sun).
Always use in accordance with the instructions.
| Type: | Refractor with etalon H-alpha filter |
| Focal length (mm): | 400 |
| Aperture (mm): | 40 (aperture of the etalon filter) |
| Focal ratio: | f/10 |
| Etalon: | Diameter 40 mm, bandwidth <0.6 angstroms |
| Fine tuning: | Tilting mechanism |
| Block filter: | 8 mm |
| UV/IR blocking: | yes |
| Eyepiece: | 5-16 mm zoom, 1.25" |
| Magnification with supplied eyepiece: | 25-80x |
| Focuser: | Crayford (rotatable) |
| Suitable for astro cameras: | Cameras with 1.25" connection and backfocus of 55 mm or less |
| Mount connection: | Vixen style dovetail bar with 1/4-20 tripod thread (side mounted) |
| Tube length: | 412 mm |
| Tube weight (kg): | 2 |
- Telescope with mounted H-alpha filter, dovetail bar, solar finder, Crayford focuser, solar diagonal with integrated blocking filter
- Smartphone adapter
- Normal red dot finder for night-time use
- Normal 1.25" star diagonal for night-time use
- 5-16 mm zoom eyepiece (1.25")
- Additional dust caps for the etalon when not in use
- Carrying case (46 x 18 x 24 cm L/W/H)
- Operating instructions in German and English
- Smartphone adapter
- Normal red dot finder for night-time use
- Normal 1.25" star diagonal for night-time use
- 5-16 mm zoom eyepiece (1.25")
- Additional dust caps for the etalon when not in use
- Carrying case (46 x 18 x 24 cm L/W/H)
- Operating instructions in German and English
Photo by a customer
Our customer Bernd Gooßmann took a beautiful photo with this telescope on June 14, 2026, which we´d like to share with you:
Telescope: Acuter Elite Phoenix 40 (10988)Camera: ZWO ASI294MM Pro (ASI294MMpro)
Image details: 1x1 binning (unbinned), ROI set to 2316x2364 pixels
Post-processing: Autostakkert, IMPPG, PixInsight
Bernd Gooßmann writes:
"Unfortunately, there isn´t quite as much going on, but you can really see that the
ACUTER has genuine DoubleStack capabilities!
The scope is just a ton of fun to use and displays everything in great
detail - which is really interesting! I´m glad to have the ACUTER ´in my collection´
;-)"
We congratulate Mr. Gooßmann on this fantastic photo!
| Manufacturer / Importeur: | Optical Vision Limited |
| Street: | Duracher Straße 11 |
| ZIP / City: | 87437 Kempten |
| Country: | Germany |
| Telefon number: | +49 831 697288210 |
| Email: | accounts@opticalvision.co.uk |
| Website: | www.opticalvision.co.uk |
Safety informations: PDF Download
Recommended accessories
Adaptors
Alternatives to this product - Suggestions from TS
Cleaning & Collimating
TS-Optics Optical Soft Microfibre Cleaning Cloth and Bag, 26x24 cm
EUR 7,50RRP EUR 11,95you save 37.2% (EUR 4,45)
Mounts
TS-Optics Tilting Head and Altazimuth Mount for photo tripods
EUR 129,00RRP EUR 179,00you save 27.9% (EUR 50,00)
TS-Optics equatorial mount EQ25 with aluminum tripod
EUR 141,00RRP EUR 299,00you save 52.8% (EUR 158,00)
Photo Acessories
ZWO ASI174MM USB3.0 Mono Astro Camera - Sensor D=13.4 mm, 5.86 µm Pixel Size
- Only 1 pcs left in stock
EUR 584,00RRP EUR 699,00you save 16.5% (EUR 115,00)
Reviews
Written by Arthur Battenberg
on 2026-07-24
"Bestes H-alpha-Gerät in moderater Preisklasse. "
Written by Alexandre GERMANI
on 2025-05-04
"So far, I've only done a bit of testing. But I think that considering its price, it seems really great. Very well equipped with its zoom, its smartphone holder, and its aluminum body. I'll do more tests, but with a camera later."
