TS-Optics 0.75x REFRACTOR Reducer Corrector for TS 106 mm f/6.6 Apo

Name: TS-Optics 0.75x REFRACTOR Reducer Corrector for TS 106 mm f/6.6 Apo
Brand: -TS Zubehör
SKU: TSRED106
Price: 400 EUR

TS PHOTOLINE image field corrector shortens the focal length of the TS 106 mm apo to 525 mm and provides a correction up to full frame format.

Focal length reduction 0.75x, the exposure time is almost halved

The focal ratio of the TS 106 mm apo is improved from f/6.6 to f/4.95

Connection on the telescope side via the M63x1 male thread

Connection of cameras via the M48x0.75 male thread and via an M82.5x0.75 male thread for special adaptations

Working distance from the M48x0.75 thread is 55 to 60 mm - finely adjustable with 0.05 mm accuracy by an internal adjustment on the corrector

Manufacturer: -TS Zubehör

Product number: TSRED106

EUR 400,00

incl. 19 % VAT (DE)

The VAT indicated refers to that applicable in Germany. After logging in, the VAT amount is adjusted to the applicable VAT of the stored delivery country. Therefore, the final price may vary accordingly.

excl. 8.95 € shipping costs (DE)

Please log in to calculate shipping costs to your country.

more details to the shipping costs ...

There are no reviews for this product

Roll over image to zoom in or klick it. The appropriate zoom factor ist adjustable with the mouse wheel.

TS-Optics 0.75x REFRACTOR Reducer Corrector for TS 106 mm f/6.6 Apo

TS PHOTOLINE image field corrector shortens the focal length of the TS 106 mm apo to 525 mm and provides a correction up to full frame format.

Focal length reduction 0.75x, the exposure time is almost halved

The focal ratio of the TS 106 mm apo is improved from f/6.6 to f/4.95

Connection on the telescope side via the M63x1 male thread

Connection of cameras via the M48x0.75 male thread and via an M82.5x0.75 male thread for special adaptations

Working distance from the M48x0.75 thread is 55 to 60 mm - finely adjustable with 0.05 mm accuracy by an internal adjustment on the corrector

Details..
Technical data..
In the box..
Reviews..
Manufacturer infos..
Safety informations..

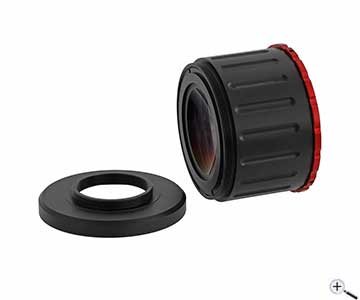

The 3-element 0.75x image field corrector for sharp stars to the edge with the 106 mm apo:

The corrector is screwed to the focuser via the M63x1 thread. Teleskop-Service has put a lot of emphasis on a very good solution for this corrector.

0.75x shortening factor - focal length is reduced from 700 mm to 525 mm, focal ratio is improved to fast f/4.95;

55 mm to 60 mm working distance - finely adjustable with 0.05 mm accuracy - from the M48x0.75 thread;

64.8 mm to 69.8 mm working distance from M82.5x0.75 male thread - special adapters can be manufactured by TS.

Adapter from M82.5x0.75 to M48x0.75 with 9.8 mm overall length included for individual adaptations;

3-element design with ED special glass;

Multi-coating and field stops avoid reflections and improve contrast;

Corrector:	3-element 0.75x corrector
Telescope connection of the corrector:	M63x1 connection thread on the telescope side
Working distance from M48x0.75 thread:	55-60 mm, finely adjustable
Additional thread on camera side:	external thread with core diameter (internal thread) 81.9 mm - pitch 0.75 mm per turn

0.75x corrector

Dust caps

Photograph by a customer

Our brand ambassador Sophie Paulin from Bobingen (Germany) took a great picture of a comet:

Object: Comet C/2022 E3 (ZTF)

Photographer: Sophie Paulin
Telescope: TS-Optics APO refractor 106/700 mm with photo corrector (TSAPO106FF)
Reducer: 0.75x refractor reducer and corrector (TSRED106)
Imaging camera: ZWO ASI2600MC Pro (ASI2600MC-P)
Exposure: 170x 30 s (1 h 25 min)
Guiding: ZWO Large Off Axis Guider (ZWO-OAG-L)
Mount: iOptron HEM44 with iPolar (H442A) on TS Tri-Pier tripod (TSPIER)

Congratulations to Sophie Paulin for this beautiful image!

Photograph, not by a customer

Wolfgang Ransburg has taken a beautiful image of the Rosette Nebula, which we are pleased to present to you here:

Object: Rosette Nebula (NGC 2237/38/39/46)

Photographer: Wolfgang Ransburg, Baldham (Germany)
Capturing telescope: TS-Optics 106 mm f/6.6 FCD100 HIRO APO at f/4.95 (APO106HIRO)
Corrector/Reducer: TS-Optics 0.75x REFRACTOR Reducer Corrector for TS 106 mm f/6.6 Apo (TSRED106)
Filter: Antlia ALP-T 2 inch Dual Band Narrow Band Nebula Filter H-Alpha and O-III - 5 nm (ALP-T-2)
Imaging camera: ZWO ASI2400MC Pro (ASI2400MC-P)
Mount: 10Micron GM3000 HPS (BA1453000)

Congratulations on this great photo!
