From exhibition: TS-Optics 76EDPH - 6-element Flatfield Apo 76 mm aperture F/4.5

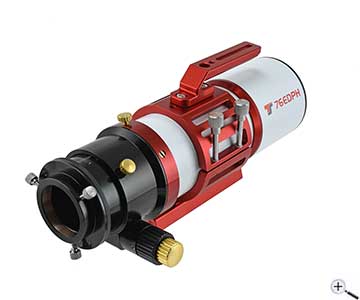

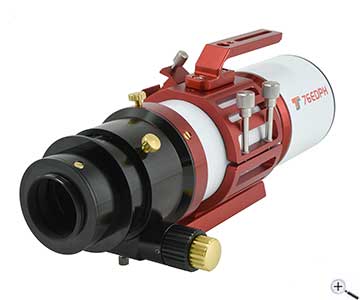

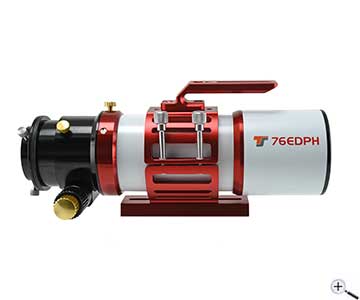

TS 76EDPH 6-element Flatfield Apochromat

The TS-Optics 76EDPH is intended for astrophotographers and nature photographers who also like to observe through a high-class apo. The refractor convinces by its solid mechanical workmanship and by its high-quality 3-element lens. The 3-element corrector has been specially developed for this apo and produces a well corrected image field with 44 mm diameter, ideal for full-frame cameras. The fast focal ratio of f/4.5 allows short exposure times. The 76EDPH is a powerful and portable travel apo for astrophotography and observation.

Astrophotographic results obtained with this type of telescope on Astrobin

Here are some astrophotographs taken with an identical telescope model: Link to Astrobin

Connecting cameras to the apo:

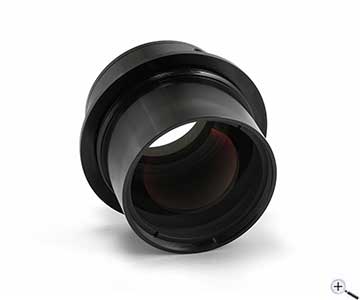

Simply screw the 2.5" image field corrector into the focuser. An M48x0.75 thread is available on the camera side of the corrector. The working distance from this thread to the camera sensor is exactly 55 mm. This is ideal for all astro cameras and DSLR / SLR cameras. Matching T-rings can be found in the accessories section. The corrector also has a 2" filter thread in front of the camera mount.

Mounting the TS 76EDPH on mounts and photo tripods

The CNC tube ring has a GP and EQ5 style dovetail bar at the base. You can attach the telescope to the appropriate quick couplings of mounts and travel mounts such as the Skywatcher Star Adventurer. Matching saddle plates can be found in the accessories section. In addition, the bar also has a 1/4" photo thread. The apo fits, like a telephoto lens, directly onto any photo tripod.

The carrying handle is a real multifunctional part

The handle not only facilitates mounting on the photo tripod, it is also the basis for further adaptations. The handle has an oblong hole and a 1/4" photo tripod thread. For example, you can mount a ball head on it and mount a second camera in parallel. Next to the carrying handle there is a finder shoe for finder scopes, mini telescopes or sighting devices.

Observation with the TS 76EDPH

Of course, the triplet objective which is free from chromatic aberration also provides an excellent basis for observation. The high-contrast image also provides a clear image at daytime, for example when observing birds. At night, the aperture of 76 mm shows also the crater landscape at the moon or also exciting details on the planets of the solar system. Many thousands of deep-sky objects are also within the reach of the apo. You can use 1.25" and 2" accessories such as a 2" star diagonal mirror.

Technical Information

Teleskop-Service has collected a lot of helpful information about refractors and provided it in English as a PDF file: refractors.pdf

Astrophotographic results obtained with this type of telescope on Astrobin

Here are some astrophotographs taken with an identical telescope model: Link to Astrobin

Customer photos by Djoni Kalashyan

Here are a few images - only scaled, but not cropped - by our customer Djoni Kalashyan:

"My name is Djoni Kalashyan and for astro my name is Djo Astro, I am 34 years old I live in Rouen,
I started astronomy in 2020 but I was attracted to astronomy since I was small.
some I have several photos that I took with ts76edph and it´s been 2 months since I have my new Tsapo90f5q glasses and
I have managed to take only three photos for the moment with my setup quintupled the seagull, cone nebula and also my last photo it is ic1805."


Rosette Nebula NGC 2237
Photographer: Djoni Kalashyan
Imaging optics: TS76EDPH
Camera: ZWO ASI533MC Pro



Elephant´s Trunk Nebula IC 1396
Photographer: Djoni Kalashyan
Imaging optics: TS76EDPH
Camera: ZWO ASI533MC Pro



California Nebula NGC 1499
Photographer: Djoni Kalashyan
Imaging optics: TS76EDPH
Camera: ZWO ASI533MC Pro


Many thanks to Djoni Kalashyan for providing these beautiful photos!

Customer photos by Cedric Rosoli

Here are a few pictures - also only reduced in size - taken by our customer Cedric Rosoli from France:

Pleiades (M 45)
Photographer: Cedric Rosoli
Imaging optics: TS76EDPH
Filters: Astronomik Deep Sky RGB
Imaging camera: ZWO ASI294 MM Pro



Horsehead Nebula (B 33 vor IC 434)
Photographer: Cedric Rosoli
Imaging optics: TS76EDPH
Filters: ZWO H-alpha 7 nm + Astronomik Deep Sky RGB
Imaging camera: ZWO ASI294 MM Pro



Elephant Trunk Nebula (IC 1396)
Photographer: Cedric Rosoli
Imaging optics: TS76EDPH
Filters: ZWO SHO 7 nm
Imaging camera: ZWO ASI294 MM Pro


Many thanks to Cedric Rosoli for providing these beautiful photos!

Customer photos by Jens Lauke

Here are a few pictures - also only reduced in size - taken by our customer Jens Lauke from Germany:

Heart Nebula (IC 1805)
Photographer: Jens Lauke (Germany)
Imaging optics: TS-Optics 76EDPH (TS76EDPH)
Imaging camera: ZWO ASI183 MC Pro (ASI183MCPRO)



Orion Nebula (M42)
Photographer: Jens Lauke (Germany)
Imaging optics: TS-Optics 76EDPH (TS76EDPH)
Imaging camera: ZWO ASI183 MC Pro (ASI183MCPRO)



Andromeda Galaxy (M 31)
Photographer: Jens Lauke (Germany)
Imaging optics: TS-Optics 76EDPH (TS76EDPH)
Imaging camera: ZWO ASI183 MC Pro (ASI183MCPRO)



Eastern Veil Nebula (NGC 6992/6995)
Photographer: Jens Lauke (Germany)
Imaging optics: TS-Optics 76EDPH (TS76EDPH)
Imaging camera: ZWO ASI183 MC Pro (ASI183MCPRO)



Horsehead Nebula (B 33 in front of IC 434)
Photographer: Jens Lauke (Germany)
Imaging optics: TS-Optics 76EDPH (TS76EDPH)
Imaging camera: ZWO ASI183 MC Pro (ASI183MCPRO)


Many thanks to Jens Lauke for providing these beautiful pictures!
