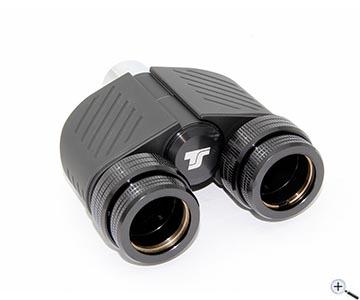

TS-Optics Astro Binoviewer for telescopes, with compression ring

Name: TS-Optics Astro Binoviewer for telescopes, with compression ring
Brand: -TS Zubehör
SKU: TSBinoansatz
Price: 219.98 EUR
Rating: 5 (4 reviews)

The binoviewer from TS was especially designed for the use with telescopes and offers comfortable viewing with both eyes.

Perfect on-axis clamping of the eyepieces by compression rings - no tilting possible, thus no double images

Diopter fine adjustment and micrometric focusing via knurled wheel - not necessary for pulling the eyepieces back

Generously dimensioned prisms with 23 mm clear aperture without lateral shadings for a good illumination

No reflexes or multiple images through full multi-coating and neat internal blackening

Very well adjusted prisms - no double images!

Only 100 mm optical length - together with the matching glass path corrector, using the binoviewer with Newtonians is possible

Only 525 grams - well suitable for more simple focusers, too.

Manufacturer: -TS Zubehör

Product number: TSBinoansatz

EUR 219,98

incl. 19 % VAT (DE)

The VAT indicated refers to that applicable in Germany. After logging in, the VAT amount is adjusted to the applicable VAT of the stored delivery country. Therefore, the final price may vary accordingly.

excl. 6.95 € shipping costs (DE)

Please log in to calculate shipping costs to your country.

more details to the shipping costs ...

rating: 5.0 of 5

Roll over image to zoom in or klick it. The appropriate zoom factor ist adjustable with the mouse wheel.

TS-Optics Astro Binoviewer for telescopes, with compression ring

The binoviewer from TS was especially designed for the use with telescopes and offers comfortable viewing with both eyes.

Perfect on-axis clamping of the eyepieces by compression rings - no tilting possible, thus no double images

Diopter fine adjustment and micrometric focusing via knurled wheel - not necessary for pulling the eyepieces back

Generously dimensioned prisms with 23 mm clear aperture without lateral shadings for a good illumination

No reflexes or multiple images through full multi-coating and neat internal blackening

Very well adjusted prisms - no double images!

Only 100 mm optical length - together with the matching glass path corrector, using the binoviewer with Newtonians is possible

Only 525 grams - well suitable for more simple focusers, too.

Details..
Technical data..
In the box..
Manufacturer infos..
Safety informations..

Binoviewer from TS Optics for telescopes for comfortable oberving with both eyes

Lead-managed by TS Optics, this high-quality binoviewer was developed especially for astronomical telescopes. The TS binoviewer is not a converted microscopic accessory, but a quality construction designed for practical use with telescopes.

The advantages of binocular vision:

Simply close one eye and compare the image. You will notice less details and tire faster. For this reason, landscape viewing usually is more relaxed with binoculars than with a spotting scope. Astronomical viewing with the TS binoviewer also has advantages:

Viewing is tireless and more relaxed.

Fine details, especially at moon and planets, are better perceived than with only one eye. This happens by superimposing the image information from both eyes in the brain.

Seeing is better compensated, also an achievment of the brain.

There is an impression of higher magnification and a more contrasty image.

Nebulae, clusters and galaxies can also be observed well. Despite the light is distributed to two outlets, it looks only minimal dimmer, but the more vivid. A globular cluster or a bright nebula appears more structured and even offers a slight three-simensional effect.

The features of the TS binoviewer:

Viewer is not the same as viewer, as many amateur astronomers had to realize. With the TS binoviewer, there are no compromises.

Eyepieces are clamped exactly on the optical axis b a compression ring. The brass ring encloses the eyepiece and centers it at the same time. Therefore tilting becomes impossible, double images are avoided.

Similar to good binoculars, diopter differences are compensated by a micro focuser. You can put both eyepieces into the receptacles as far as they will go. Simpler binoviewers do not offer this, you have to pull out one eyepiece a bit. That is not very precise.

With only 100 mm, the TS binoviewer has a short optical length. With a suitable glass path corrector, it can be completely compensated, making also possible the use with Newtonian telescopes. The corrector is simply screwed into the filter thread of the binoviewer´s telescope side 1.25" barrel.

The prisms of the binoviewer are over-dimensioned and, of course, multi-coated. If you look into the viewer without eyepieces, you will see a circular opening without lateral shading. Annoying reflexes or multiple imagages are reliably avoided. You can concentrate exclusively on the object.

The binoviewer is delivered with a solid matal case, all connections are covered by protective caps. Thus, the binoviewer will look like new even after many years.

Easy to use with almost all telescopes:

Generally, the TS binoviewer can be used with any telescope with 1.25" or 2" focuser.

All telescopes with internal focusing (Schmidt-Cassegrain, Maksutov, etc.) allows for direct adaption of the binoviewer. The adjustment range is big enough.

Refractors with 2" focusers also have a generous working distance from focuser to image plane. If you use a 1.25" diagonal, usually the TSGWK16 - 1,6x glass path corrector will be sufficient. Also Newtonian telescopes designed for astrophotography offer a suitable distance. The TSGWK16 will suffice.

Newtonian telescopes with shorter distance or refractor telescopes with 2" star diagonal - wherever there is not too much space for focusing - need the stronger glass path corrector TSGWK26.

Connection telescope side:	1.25" barrel with filter thread
Connection eyepiece side:	1.25" receptacles with compression ring
Diopter compensation:	yes, via micrometric focuser
Optical length:	100mm
Clear aperture:	23 mm without clipping by the prisms
Clear aperture eyepiece side:	18 mm
Coating:	fully multi-coated
Weight:	only 525 grams
Interpupillary distance:	adjustable from 54 though 74 mm

Binviewer with compression ring

Dust caps for receptacles and telescope connection

Solid aluminum case

Manufacturer / Importeur:	Teleskop-Service Ransburg GmbH
Street:	Von-Myra-Str. 8
ZIP / City:	85599 Parsdorf
Country:	Germany
Telefon number:	+49 89 99228750
Email:	info@teleskop-service.de
Website:	www.teleskop-express.de

Safety informations: PDF Download

Recommended accessories

Cleaning & Collimating

TSMF27

TS-Optics Optical Super Microfiber Cleaning Cloth

EUR 5,99RRP EUR 7,95you save 24.7% (EUR 1,96)

BA2905007

Baader Optical Wonder Cleaning Fluid with Dose Vaporizer

EUR 15,90

CleanerKit

TS-Optics Cleaning kit (five parts) - for almost all optical surfaces

EUR 9,98

Diagonal Mirrors & Prisms

TSZS1D

TS-Optics 1.25" TS-Optics 1.25" Star Diagonal - 99% - 1/12 Lambda

EUR 114,95

Eyepieces

HR7

TS-Optics 7 mm Planetary HR - 1.25" Eyepiece, 58°, fully multi-coated

EUR 69,00

HR5

TS-Optics 5 mm Planetary HR - 1.25" Eyepiece, 58°, fully multi-coated

EUR 69,00

TSWA12

TS-Optics 12 mm 1.25" - 60° Wide Angle Eyepiece

EUR 64,00

TSWA20

TS-Optics 20 mm 1.25" - 70° Wide Angle Eyepiece

EUR 64,00

FF19

TS-Optics Flatfield Eyepiece FF 19 mm with 60° apparent field of view

EUR 79,00

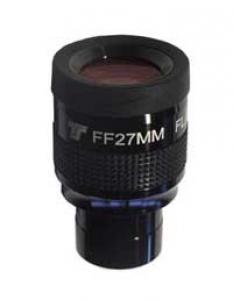

FF27

TS-Optics Flatfield Eyepiece FF 27 mm with 53° apparent field of view

EUR 89,00

FF12

TS-Optics Flatfield Eyepiece FF 12 mm with 60° apparent field of view

EUR 65,00RRP EUR 79,00you save 17.7% (EUR 14,00)

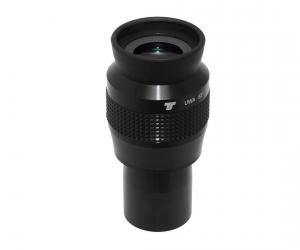

UWAN7
