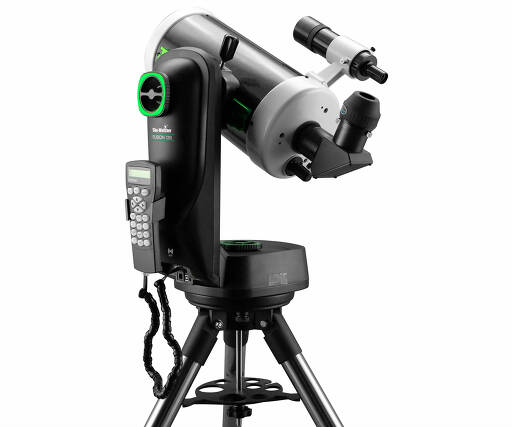

Sky-Watcher Maksutov-Cassegrain Skymax 150 on Fusion-120i GoTo Mount
Powerful Maksutov-Cassegrain Telescope on alt-azimuth Goto Mount with Wi-Fi and Bluetooth

Sky-Watcher´s Fusion-120i mount can be controlled wirelessly with your smartphone or tablet, using the free SynScan or SynScan PRO Apps for iOS or Android. The Fusion-120i mount, with its built-in Wi-Fi module, creates its very own Wi-Fi network, so the mount can be used anywhere, without any reliance on other Wi-Fi or mobile networks. After entering your coordinates into the app and following a simple alignment procedure, you are ready to explore the universe using the apps intuitive touchscreen menu from an extensive database of celestial objects. It can also be controlled by Bluetooth, or with the supplied SynScan computerised handset with a database of 42,900+ objects.

The Fusion-120i is easily portable using the built-in carry handle whilst also having a substantial payload capacity of 12 kg. The mount will accept OTAs with either 45 mm or 75 mm dovetail bars via its dual-fit saddle. Powering the mount is versatile using either the internal lithium-ion battery or an external 12 V 3 A DC power supply.

The Fusion-120i is perfectly matched with the compact but very powerful SKYMAX-150 Maksutov-Cassegrain telescope, which is ideal for the observation of double-stars, and the surface detail of the Moon & bright planets. Its high-resolution, long focal length optical system is multi-coated to maximise contrast and image sharpness.

An equatorial wedge (product code 20331) will soon be available to purchase separately to use the mount in EQ mode.
Aperture:150 mm
Focal length:1800 mm
Focal ratio:f/12
Limiting visual magnitude:13m2
Resolution:0.77"
Central obstruction:approx. 45 mm
Focusing:Easy, precise internal focusing
Connection to mount:photo tripod connection and GP style dovetail bar
Eyepiece side connection:2" and 1.25"
Thread on the backside of the tube:2" SC thread
Baffle tube:30 mm clear aperture
OTA length:40 cm
OTA diameter:18.3 cm
Front ring diameter:190/191 mm
OTA weight:5.3 kg
Mount type:Alt-azimuth, single-arm fork mount
Equatorial wedge for using the mount in EQ mode:Optional
Payload capacity:12 kg
Controllable by:Wi-Fi, Bluetooth or supplied SynScan handset
Connection Sockets:USB-B, autoguider, SynScan handset, power jack input (5.5/2.1 mm barrel connector)
Control:Free SynScan or SynScan PRO Apps for iOS and Android mobile device or Synscan handset (included)
Hand controller:SynScan AZ computerised handset with 42,900+ objects
Handset database:Contains full Messier, NGC and IC catalogues
SynScan App database:Total 10,000+ objects with 10759 deep sky objects (including Messier, NGC, IC, Caldwell catalogues), named DSOs, 305 named star, 55 double stars, 7 solar system objects (7 planets, Sun, Moon). Unlimited objects when working with a 3rd party planetarium software.
SynScan app alignment method:1-star alignment, 3-star alignment, brightest star alignment, north-level alignment
SynScan App´s other features:Tonight´s Best Sky tour, Point and Go with a mobile device, identification of celestial objects, remote control over internet, user defined objects, Pointing Accuracy Enhancement (PAE)
Powered by:Either internal rechargeable lithium-ion battery 9.6 V 45 Ah or 12-15 volt DC 3 A external power supply (not supplied)
Tracking operation time using internal battery:Up to 10 hours
Telescope connection:45 mm / 75 mm dual-fit dovetail saddle
Locking clutches:Yes, on both altitude and azimuth axis
Transmission:Stepper motors with worm gear mechanism
Number of teeth of the worm wheel:180 (both axes)
Tripod:Stainless steel tripod with accessory tray
Mount head dimensions:335 mm x 214 mm x 467 mm
Overall mount weight with tripod:8 kg
Maksutov-Cassegrain telescope 150/1800 mm
9x50 finder (straight view) with bracket
2" star diagonal with reduction to 1.25"
2" overview eyepiece APEX 28
Mount head
Cigarette lighter cable with 5.5/2.1 mm barrel connector
Stainless steel tripod
Accessory tripod
