TS-Optics 0.92x Corrector for Triplet Apos with 80 mm and 85 mm apertures

Name: TS-Optics 0.92x Corrector for Triplet Apos with 80 mm and 85 mm apertures
Brand: -TS Zubehör
SKU: TSRED85
Price: 219 EUR

The astrophotography corrector is ideal for apochromatic refractors with 80?85 mm aperture and a focal ratio of f/6.

Reduction factor 0.92x

Connection telescope side: M63x1 male thread and M70x1 male thread

Particularly well-suited for TSAPO85, TSCFAPO80, TLAPO804, and all apochromats with 80?85 mm aperture, a triplet objective, and f/6 focal ratio

Connection camera side: M48x0.75 male thread

Working distance: 55 mm from the connection thread - the working distance can be adjusted by up to 6 mm via a micrometer thread, allowing for optimal adaptation to the refractor.

ED design for good on-axis and off-axis correction

Manufacturer: -TS Zubehör

Product number: TSRED85

EUR 219,00RRP EUR 299,00you save 26.8% (EUR 80,00)

incl. 19 % VAT (DE)

The VAT indicated refers to that applicable in Germany. After logging in, the VAT amount is adjusted to the applicable VAT of the stored delivery country. Therefore, the final price may vary accordingly.

excl. 7.95 € shipping costs (DE)

Please log in to calculate shipping costs to your country.

more details to the shipping costs ...

There are no reviews for this product

Roll over image to zoom in or klick it. The appropriate zoom factor ist adjustable with the mouse wheel.

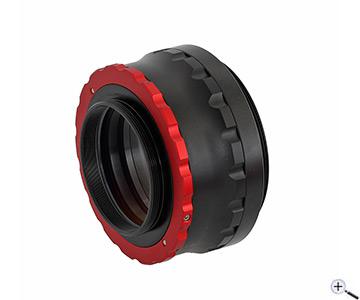

TS-Optics 0.92x Corrector for Triplet Apos with 80 mm and 85 mm apertures

The astrophotography corrector is ideal for apochromatic refractors with 80?85 mm aperture and a focal ratio of f/6.

Reduction factor 0.92x

Connection telescope side: M63x1 male thread and M70x1 male thread

Particularly well-suited for TSAPO85, TSCFAPO80, TLAPO804, and all apochromats with 80?85 mm aperture, a triplet objective, and f/6 focal ratio

Connection camera side: M48x0.75 male thread

Working distance: 55 mm from the connection thread - the working distance can be adjusted by up to 6 mm via a micrometer thread, allowing for optimal adaptation to the refractor.

ED design for good on-axis and off-axis correction

Details..
Technical data..
In the box..
Manufacturer infos..
Safety informations..

TS 0.92x Field Corrector for 80-85 mm f/6 APO Refractors

The corrector has been optimized for these telescopes and delivers very good performance. It flattens the field of view, making it possible to use cameras up to full-frame size. At the same time, on-axis correction is maintained. Sharpness and resolution remain unaffected, so even very high-resolution cameras can be used.

Connecting to the telescope:

The corrector has an M63x1 male thread on the telescope side. This allows you to screw the corrector directly to the focuser of the telescope. This unsures an optimal fit without tilting. If you want to rotate the camera, you can install a rotation system between the focuser and the corrector. We recommend the short rotation adapter #TSROTM63K, which also serves as a quick-release coupling.

Connecting the camera to the corrector:

An M48x0.75 male thread is available on the camera side. The working distance is 55 mm from the thread, whereas the external thread does not count, since it disappears in the connection adapter. Most mirrorless system cameras, astro cameras and SLR cameras offer adapters that allow you to achieve exactly this distance.

Item:	0.92x corrector for refractors
Suitable for:	Optimized for 80-85 mm f/6 refractors
Lenses:	2-element design with ED element
Connection telescope side:	M63x1 male thread
Connection camera side:	M48x0.75 male thread
Working distance:	55 mm from M48 thread

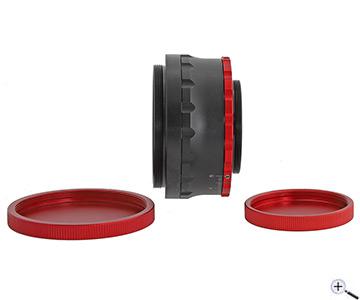

Corrector

Dust caps
