TS-Optics 0.8x Reducer and Corrector for Refractor Telescopes

Name: TS-Optics 0.8x Reducer and Corrector for Refractor Telescopes
Brand: -TS Zubehör
SKU: WiRed08
Price: 199 EUR

The corrector flattens the image field and improves the light intensity of refractors for astrophotography. It can be plugged or screwed in.

Suitable for all refractors with 2" focusers or larger.

Ideally suited for cameras with sensors up to 30 mm diameter

Connection on the telescope side via 2" barrel with filter thread or via the M54x1 female thread on the corrector.

Connection adapters for screw adaptations are available, e.g. to M48, M54x0.75, M63 or M68 (# Sonder65)

Connection thread on camera side via T2 male thread and via M55x0.75 male thread

Working distance from T2 thread is 55 mm and from M55x0.75 thread is 62,5 mm

Manufacturer: -TS Zubehör

Product number: WiRed08

EUR 199,00

incl. 19 % VAT (DE)

The VAT indicated refers to that applicable in Germany. After logging in, the VAT amount is adjusted to the applicable VAT of the stored delivery country. Therefore, the final price may vary accordingly.

excl. 6.95 € shipping costs (DE)

Please log in to calculate shipping costs to your country.

more details to the shipping costs ...

There are no reviews for this product

TS-Optics 0.8x Reducer and Corrector for Refractor Telescopes

The corrector flattens the image field and improves the light intensity of refractors for astrophotography. It can be plugged or screwed in.

Suitable for all refractors with 2" focusers or larger.

Ideally suited for cameras with sensors up to 30 mm diameter

Connection on the telescope side via 2" barrel with filter thread or via the M54x1 female thread on the corrector.

Connection adapters for screw adaptations are available, e.g. to M48, M54x0.75, M63 or M68 (# Sonder65)

Connection thread on camera side via T2 male thread and via M55x0.75 male thread

Working distance from T2 thread is 55 mm and from M55x0.75 thread is 62,5 mm

Details..
Technical data..
In the box..

TS 0.8x corrector for astrophotography through refractor telescopes

The corrector provides good illumination and correction for sensors with APS-C format or for astro cameras up to approx. 30 mm sensor diameter. It is suitable for all refractor telescopes and offers a simple 2" barrel with filter thread.

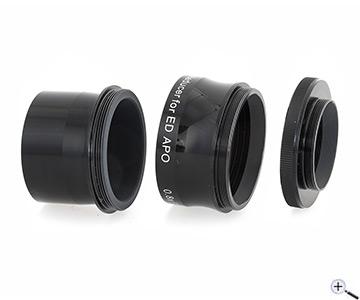

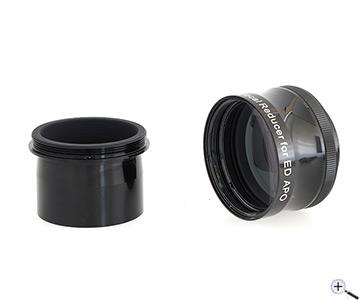

Amateur astronomers who prefer a screw connection can unscrew the 2" barrel and make an individual adaptation via the M54x1 female thread on the corrector. We offer an adaptation to the connection thread of your focuser via our special adapters.

The corrector offers the T2 (M42x0.75) male thread on the camera side and the standard working distance of 55 mm. All common mirrorless system cameras, DSLR and astro cameras offer an adaptation to T2 with this working distance. For an individual adaptation, the M55x0.75 male thread is still available on the corrector. To do this, simply unscrew the T2 adapter. The working distance then increases from 55 mm to 62.5 mm.

Design:	Corrector with focal length reduction
Lenses:	2-element design
Coating:	Multi-coating on each lens surface
Connection telescope side:	2" barrel and M54x1 female thread
Connection camera side:	T2 (M42x0.75) male thread and M55x0.75 male thread
Working distance:	55 mm from T2 thread and 62.5 mm from M55 thread
Weight:	170 gram
