Manufacturer: Askar Sharpstar
Product number: SQA70

EUR 1.959,00


incl. 19 % VAT (DE)
The VAT indicated refers to that applicable in Germany. After logging in, the VAT amount is adjusted to the applicable VAT of the stored delivery country. Therefore, the final price may vary accordingly.
excl. 6.95 € shipping costs (DE)
Please log in to calculate shipping costs to your country.
more details to the shipping costs ...

  • On stock
  • Only 2 pcs left in stock





There are no reviews for this product
  • Details..
  • Technical data..
  • In the box..
  • Download..
  • Manufacturer infos..
  • Safety informations..

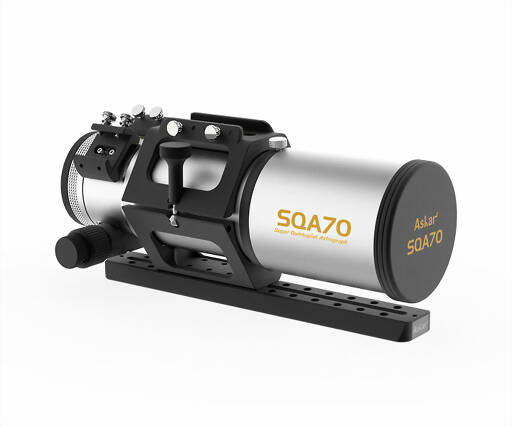

Askar 70 mm f/4.8 Quintuplet Apochromat
This high-quality quintuplet air-spaced SD glass Petzval astrograph is very well suited for astrophotography of larger areas with full-frame cameras.

Superior star point performance:
Quintuplet air-spaced lens design, including 2 pieces of SD glass. The central star point has an RMS radius of less than 1.84 µm, and the star point at the corner is less than 2.4 µm, showing a super-fine star point. It also has excellent full-field illumination and MTF data.

Petzval structure:
Integrated self-flattened design, supporting a 44 mm full-frame image circle, no need for additional flatteners, and no need for additional calculation of the back focus. Between 37 mm and 68 mm connection distance, users can directly use it for shooting after the OTA is in focus.

Integrated tube ring:
The tube ring features a hollow design in the middle to reduce overall weight, enlarged hand screws allow users to open and close the tube ring without additional tools.

There are two M4 and M6 threaded holes on each of the both sides of the tube ring, which are convenient for installing the base or dovetail plate and connecting different accessories. You can even set up another set of OTA for shooting.

The handle on the top of the tube ring is slotted with a multifunctional finder base, which can be used to install astronomical accessories.

Finder bases:
On both sides of the focuser, there are two finder bases, which not only eliminate the need for disassembling when changing the position of the finder scope but also provide additional mounting positions for other astronomical accessories.

Retractable dew shield:
The dew shield is a retractable design that can be pulled out when used. It protects the lens from the impact of external and internal light and protects the lens itself.

Dual-speed focuser:
The dual-speed rack-and-pinion 2.5-inch focuser is compatible with most motorized focusers on the market. The focusing travel is 32 mm, and the focuser tube is engraved with high-precision scales. The entire focuser barrel is CNC machined with an anti-reflective internal design and matting paint, providing extra measures to eliminate stray light.

360° rotator:
The rear of the focuser is equipped with a 360° high-precision rotator with a precision scale to allow the user to adjust and save the angle of rotation. It is also equipped with an enlarged locking screw for easy locking even under high loads.

High-quality machining
The entire SQA70 tube is crafted using high-quality CNC machining with anodized and surface spray paint treatments. The top of the handle and the focuser are all designed with exclusive nameplates, demonstrating high-end quality.

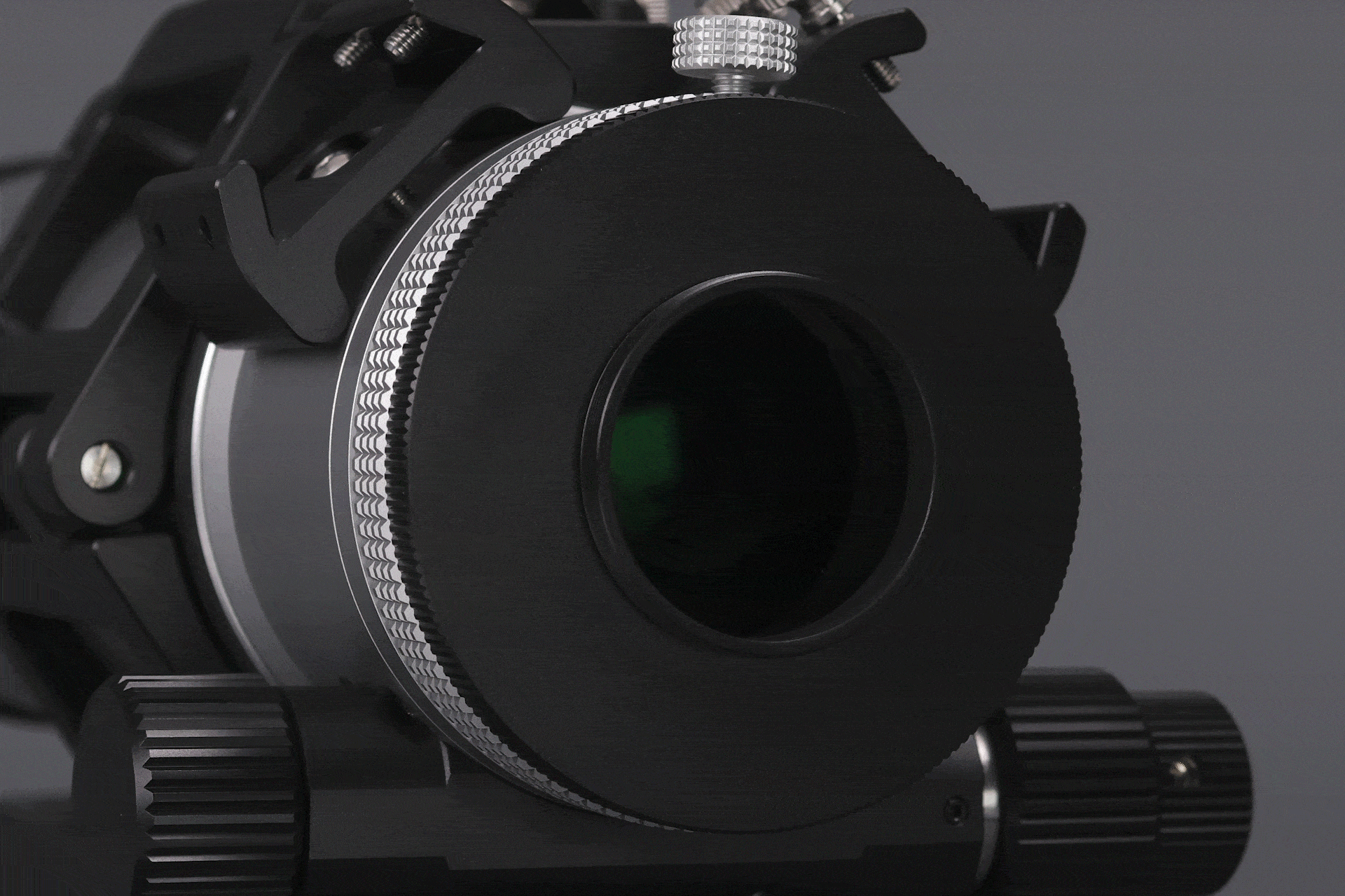

Rear-end adapters:
The end of the SQA70 is equipped with a variety of adapters, all of which are toothed and ribbed, making it easy to rotate manually without slipping. The adapters are available in sizes M54x0.75, M48x0.75 and M42x0.75 and can be used to attach various accessories, such as cooled full-frame cameras. An animated image showing the three adapters can be found in the "Download" section.

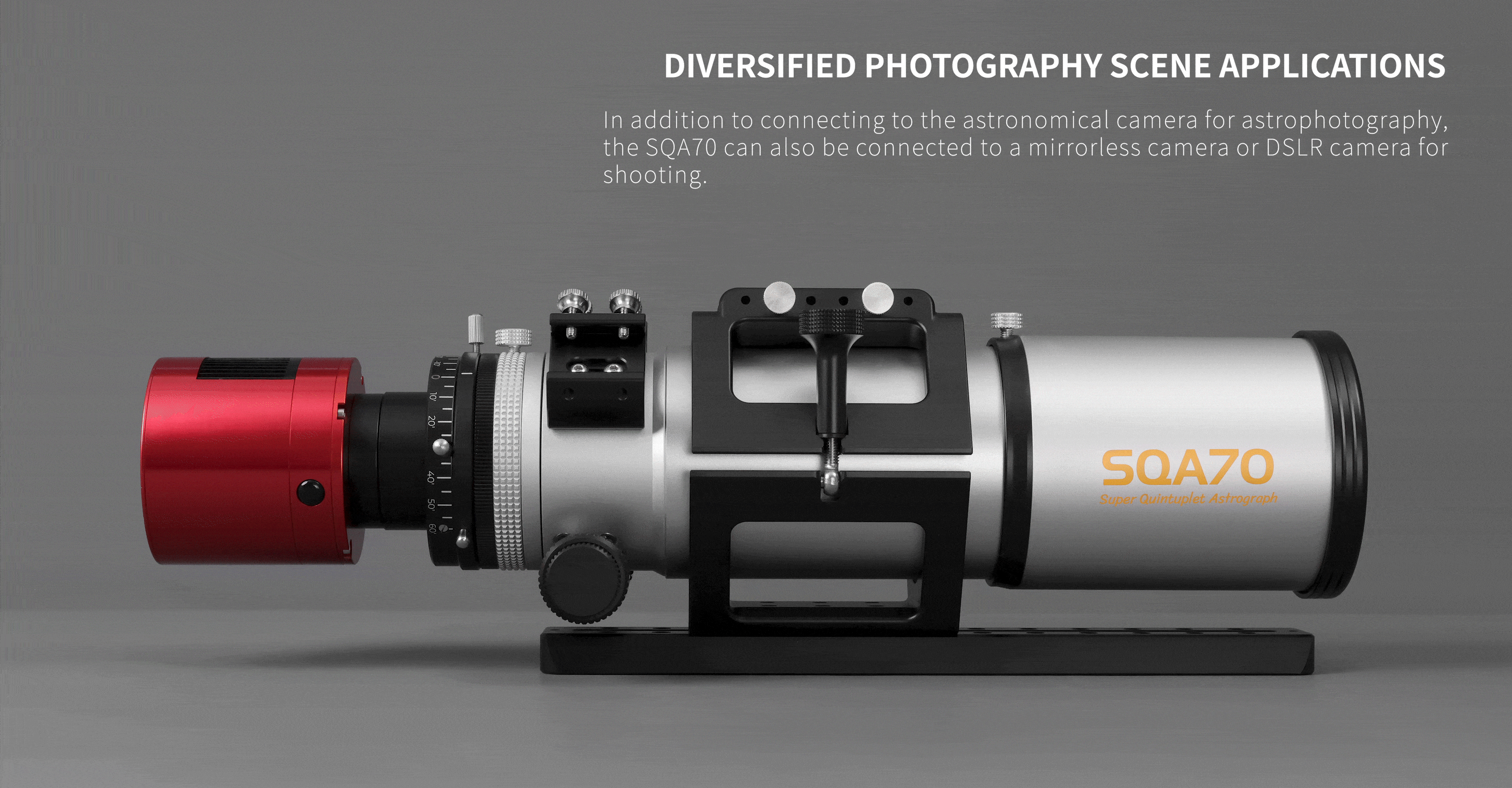

Diversified photography scene applications:
In addition to connecting to an astronomical camera, the SQA70 can also be connected to a mirrorless system camera or DSLR camera for shooting. An animated image showing these three possible applications can be found in the "Download" section.
Objective lens:Quintuplet Petzval apo (including two pieces of SD glass), self-flattening
Aperture:70 mm
Focal length:336 mm
Focal ratio:f/4.8
Format specifications:44 mm full-frame
Star point radius:less than 1.84 µm rms at the center, less than 2.4 µm rms at the corner
Focuser:2.5-inch dual-speed focuser
Focusing travel:32 mm
Rotator:360°, lockable
Rear-end thread type:M54x0.75, M48x0.75 and M42x0.75 via adapter from M76
Rear-end connection distance:Supports 37-68 mm range (recommended connection length is 55 mm)
Finder bases on the focuser:2
Tube ring:With additional finder base
Mount connection:Vixen-style dovetail bar, length 290 mm
Dew shield:Retractable
Total length:332 mm when the dew shield is contracted, 372 mm when the dew shield is stretched
Tube height with tube ring and dovetail bar:142 mm
Tube width with front cover:103 mm
Dew shield diameter:96 mm
OTA weight:2.68 kg
Gross weight (including tube ring and dovetail plate):3.5 kg
- Telescope
- Adapters to M54x0.75, M48x0.75 and M42x0.75
- Dust covers
- Vixen-style dovetail bar, length 290 mm
- Transport bag
Manufacturer / Importeur:Teleskop-Service Ransburg GmbH
Street:Von-Myra-Str. 8
ZIP / City:85599 Parsdorf
Country:Germany
Telefon number:+49 89 99228750
Email:info@teleskop-service.de
Website:www.teleskop-service.de
Safety informations: PDF Download
