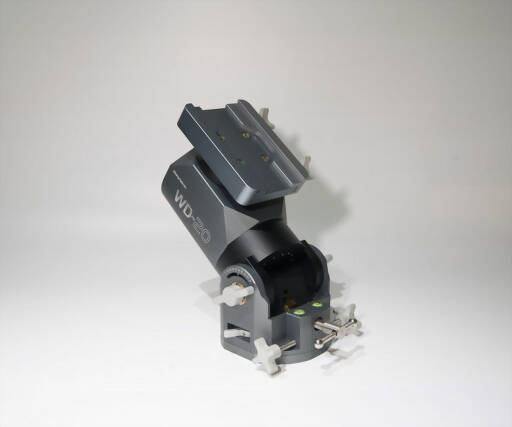

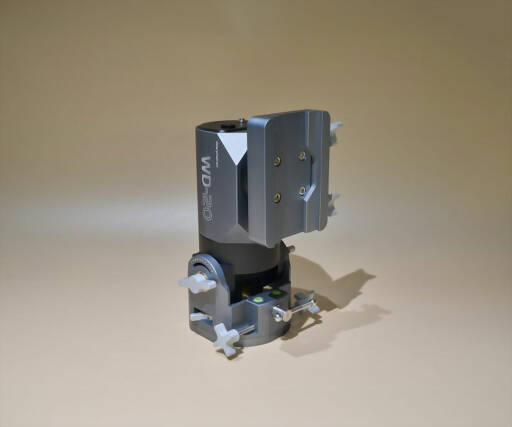

WarpAstron WD-20 Harmonic Direct Drive Mount
This equatorial mount has a load capacity of 22 kg without counterweight and 30 kg with rod and counterweight, at an own weight of only 5.4 kg. The strain wave gearings work without backlash!
The GoTo system allows for 2.8°/s maximum speed and can be controlled via USB, WiFi or Bluetooth.
The mount provides a strong Vixen and Losmandy style saddle plate, but no tripod.
Harmonic drive? Yes, but Direct Drive!
WarpAstron introduces its brand new WD-20 Harmonic Drive mount with Direct Drive technology to the market.
WarpAstron thus offers a transportable mount for astrophotography. The mount weighs 5.4 kg and carries telescopes up to 22 kg without counterweight. With the counterweight and counterweight rod (optional, with M12 threading) the mount can also carry telescopes up to 30 kg.
Most Harmonic Drive mounts on the market use a Belt Drive coupling system, so a motor moves and by means of a belt the harmonic motion system is driven; this can cause problems over time (the belt can come loose) and can present problems due to errors in assembly; the Direct Drive harmonic motion system, on the other hand, in addition to having all the advantages of the Belt Drive, actually eliminates the error caused by assembly, provides faster motor response, and allows for greater precision in guiding corrections.
Many functions and ease of use
The WD-20 can be operated in equatorial and altazimuth modes. The equatorial mode is used for astrophotography, then the mount should be aligned as accurately as possible with the celestial pole.
The mount is ready for use in a few minutes.
3-year Artesky Warranty
This product is covered by a 3-year ARTESKY warranty. These is intended to be an additional value added towards the end customer as well as to identify even more the customer service and support that Artesky as a dealer and distributor provides.
Products covered by the additional year of warranty can also be purchased from the official ARTESKY sales network.

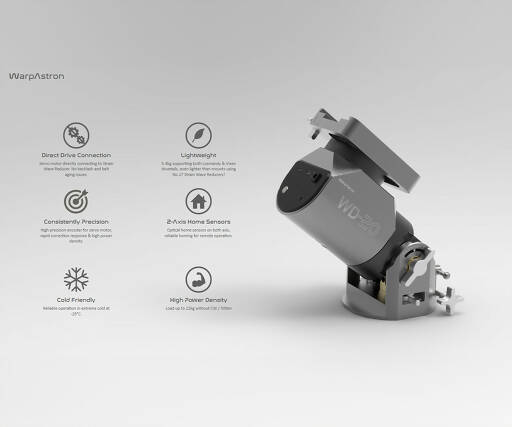

Specifications in Brief Dual saddle plate with Losmandy and Vixen connection Integrated dual home position sensor Reliable in extreme cold or hot weather - operating temperature -25 °C to 50 °C ONStep-based system compatible with ASCOM (NINA, APT, MaximDL), ASIAIR, Stellarmate, Astrostation and the like
No more need for counterweights
Normally, equatorial mounts require counterweights to balance the weight of the telescope, this is the only way to ensure proper operation.
The WD-20 uses robotic technology, requiring no counterweights up to a telescope weight limit of 22 kg. This makes the WD-20 lighter, more compact, and easier to use and transport. Only for heavier telescopes (up to 30 kg maximum) we recommend counterweights to keep the mount and tripod balanced.
Image 6 shows a graphical chart of the maximum and recommended capacity of the WD-20.
What tripod can I use?
WarpAstron has thought to facilitate this choice by adopting the same connection system as ZWO, so you will be able to use tripods such as the TC40, its PE200 half pier, the Artesky pier, or the Skywatcher EQ5 tripod with the PE200.
Payload without counterweight: | 22 kg |
Payload with counterweight: | 30 kg |
Latitude adjustment range: | 0° to 90° |
Azimuth adjustment range: | ±8° |
Motor drive: | BLDC servo motor |
Right Ascension axis shaft gearbox: | Harmonic Drive 20-120, velocity ratio 120/1 |
Declination axis shaft gearbox: | Harmonic Drive 17-100, velocity ratio 100/1 |
Gearbox backlash: | No |
Connection counterweight shaft: | M12x1.75 female thread |
Maximum goto slewing speed: | 2.8°/sec, 1800x |
Hand controller material: | Metal |
Bluetooth: | Yes (Bluetooth) |
WiFi: | Yes (max. 50 m away) |
Communication interface: | USB2.0 type C, connect to a computer, no drive required |
PC computer control: | Yes (ASCOM, INDI, INDIGO, LX200) |
INDI compatibility: | Yes |
ZWO ASIAIR compatibility: | Yes |
Guiding interface: | ST4 (USB type C connector) |
Built-in GPS: | Yes |
Alignment procedure: | Yes |
Polar alignment auxiliary: | Yes |
Database: | 20000+ objects, includes Messier, NGC, IC, STF, STT, GCVS, Caldwell, Herschel, Collinder |
Power requirement: | 12 V, 5 A, 5.5/2.1 mm DC connector |
Power consumption: | Standby 0.3 A, GoTo 1~2 A |
Anti-tilt & anti-drop devices: | Safety lock |
Mount weight: | 5.4 kg |
Mount head with Vixen and Losmandy style saddle USB type C to type C cable for hand controller Power cord 5.5/2.1 mm DC plug, tip positive USB type A to type C data cable
