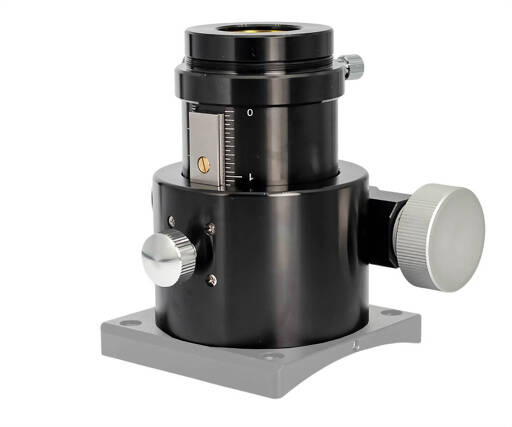

TS-Optics 2 inch RAP focuser with ball bearings for Newtonian telescopes

Name: TS-Optics 2 inch RAP focuser with ball bearings for Newtonian telescopes
Brand: -TS Zubehör
SKU: TSFOCRP2NT
Price: 259 EUR

Stable focuser for Newtonians with rack and pinion adjustment, speed reduction and roller bearings for accessories up to 6 kg

Telescope connection - ring dovetail 78 mm large diameter - suitable for our Newtonian bases

Eyepiece-side connection is 2" and 1.25" as well as a male M56x0.75 thread on the drawtube for screw adaptations

Minimum height including base up to 2" is 80 mm

Minimum height including base up to the M56x0.75 thread is 65 mm

Drawtube travel is 50 mm

Bearing via stainless steel rail with ball bearings

Adjustment via toothed rack - rack-and-pinion principle

Suitable for EAF motor focus without additional adapter

Manufacturer: -TS Zubehör

Product number: TSFOCRP2NT

EUR 259,00

incl. 19 % VAT (DE)

The VAT indicated refers to that applicable in Germany. After logging in, the VAT amount is adjusted to the applicable VAT of the stored delivery country. Therefore, the final price may vary accordingly.

excl. 6.95 € shipping costs (DE)

Please log in to calculate shipping costs to your country.

more details to the shipping costs ...

There are no reviews for this product

Roll over image to zoom in or klick it. The appropriate zoom factor ist adjustable with the mouse wheel.

TS-Optics 2 inch RAP focuser with ball bearings for Newtonian telescopes

Stable focuser for Newtonians with rack and pinion adjustment, speed reduction and roller bearings for accessories up to 6 kg

Telescope connection - ring dovetail 78 mm large diameter - suitable for our Newtonian bases

Eyepiece-side connection is 2" and 1.25" as well as a male M56x0.75 thread on the drawtube for screw adaptations

Minimum height including base up to 2" is 80 mm

Minimum height including base up to the M56x0.75 thread is 65 mm

Drawtube travel is 50 mm

Bearing via stainless steel rail with ball bearings

Adjustment via toothed rack - rack-and-pinion principle

Suitable for EAF motor focus without additional adapter

Details..
Technical data..
In the box..
Manufacturer infos..
Safety informations..

TS 2" Newtonian focuser with rack and pinion and ball bearings

The focuser is intended for do-it-yourself construction and for improving Newtonian telescopes. It holds accessories weighing up to 6 kg and, thanks to the combination of roller bearing and rack and pinion drive, allows clean adjustment without tilting, even under maximum load. The base on the adjustment side is flat and equipped with two M4 internal threads, so that a motorized focuser such as the EAF from ZWO can be mounted without an auxiliary adapter.

Connection to the telescope:

The focuser has a dovetail ring with a diameter of 78 mm. It fits into our Newtonian bases, so you can attach the focuser optimally to your tube. The matching bases are linked in the accessories section.

Connection of camera-side accessories:

The focuser is supplied with a 2" and a 1.25" receptacle. An M56x0.75 external thread is available for screw adaptations. This thread is both on the 2" receptacle and directly on the drawtube, so you can unscrew the receptacle. With individual adaptations, you can also realize a screw adaptation for astrophotography.

Telescope connection:	male dovetail ring with 78 mm diameter
Connection on eyepiece side:	2" and 1.25" receptacle
Auxiliary thread:	M56x0.75 male thread on the drawtube and on the 2" adapter
Minimum installation height incl. optional base:	80 mm up to the 2" receptacle
Speed reduction:	yes
Bearing:	stainless steel rail with ball bearings
Adjustment:	via a toothed rack
Weight:	approx. 780 grams

Focuser without base

2" adapter with female M56x0.75 thread

1.25" reduction
