TS-Optics 3.7" Deluxe Dual Speed Rack & Pinion Focuser

Name: TS-Optics 3.7" Deluxe Dual Speed Rack & Pinion Focuser
Brand: -TS Zubehör
SKU: TSFOC37
Price: 629 EUR

The Teleskop-Service alternative to the Starlight Feather Touch FTF 3545 refractor focuser - high-end focuser for refractors

Rack and pinion focuser

98 mm drawtube travel

Shifting-free support and precise adjustment even at maximum load

Bearing and adjustment are separated from each other

Adjustment via helical pinion

1:10 speed reduction for precise focusing for astrophotography

Connection at telescope side: M117x1 thread (female)

360° rotation with M100x1 thread (female), camera-side connection M92x1 thread (female)

M68x1, M92 connection threads (female) and of course 2" and 1.25" receptacle

Diameter of the drawtube: 110 mm

We will be happy to adapt the focuser to your telescope for you - item. no. Sonder125

Manufacturer: -TS Zubehör

Product number: TSFOC37

EUR 629,00

incl. 19 % VAT (DE)

The VAT indicated refers to that applicable in Germany. After logging in, the VAT amount is adjusted to the applicable VAT of the stored delivery country. Therefore, the final price may vary accordingly.

excl. 6.95 € shipping costs (DE)

Please log in to calculate shipping costs to your country.

more details to the shipping costs ...

There are no reviews for this product

Roll over image to zoom in or klick it. The appropriate zoom factor ist adjustable with the mouse wheel.

TS-Optics 3.7" Deluxe Dual Speed Rack & Pinion Focuser

The Teleskop-Service alternative to the Starlight Feather Touch FTF 3545 refractor focuser - high-end focuser for refractors

Rack and pinion focuser

98 mm drawtube travel

Shifting-free support and precise adjustment even at maximum load

Bearing and adjustment are separated from each other

Adjustment via helical pinion

1:10 speed reduction for precise focusing for astrophotography

Connection at telescope side: M117x1 thread (female)

360° rotation with M100x1 thread (female), camera-side connection M92x1 thread (female)

M68x1, M92 connection threads (female) and of course 2" and 1.25" receptacle

Diameter of the drawtube: 110 mm

We will be happy to adapt the focuser to your telescope for you - item. no. Sonder125

Details..
Technical data..
In the box..
FAQ..
Download..
Manufacturer infos..
Safety informations..

TS-Optics 3.7" RAP Focuser

The quality of this focuser comes close to the well-known Feather Touch focusers from Starlight. The large focuser allows even using full-frame size and medium-format cameras without vignetting, of course with suitable correctors.

Drawtube with rack & pinion drive - no friction - no bending like the Crayford focuser.

Internal baffles against reflections

Clear aperture: 102 mm

Drawtube travel: 98 mm

360° rotation for optimal selection of the field of view

Self centering 2" and 1.25" adapter for correct clamping on the optical axis.

Connection thread for photo adaptions: M100x1 thread (female), M92x1 thread (female), M68x1 ZEISS style thread (female)

Lengths, retracted, measured from beginning of the 117 mm female thread:

103 mm to the end of the internal M100 thread (no rotation possible)

130 mm to the end of the internal M92 thread (rotation possible from here on)

142 mm to the end of the internal M68 thread

163 mm to the end of the 2" adapter

172 mm to the end of the 1.25" adapter

Connection at the telescope side:	M117x1 thread (female), 8 mm deep
Connection threads at camera side:	M100x1 (non rotatable), M92x1 and M68x1 thread (all three female)
Connectors at eyepiece side:	2" and 1.25" with compression ring - self centering
Minimal height (retracted):	103 mm (end of M100 thread)
Maximum height (retracted):	172 mm (end of 1.25" adapter)
Drawtube travel:	98 mm
Clear aperture:	102 mm with anti-reflection thread
Speed reduction:	1/10 mikro transmission
Payload:	up to 9 kg
Weight with rotation adapter:	2040 g

3.7" RAP focuser

M117 telescope connection adapter with 360° rotation

2" adapter with compression ring

1.25" barrel adapter with compression ring and 2" filter thread

Question:
Can you have the speed reduction on the other side?

Answer from Teleskop-Service:

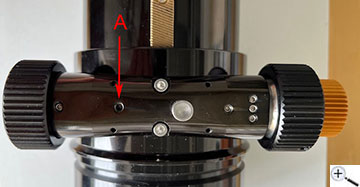

This works - just loosen the two middle Allen screws that fix the drive, turn the drive 180° and retighten the screws.

Adjustment in case of annoying image shift

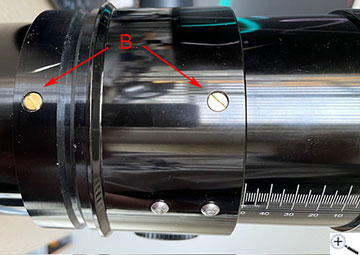

The image may shift if the focusing direction is changed or the telescope is swiveled. The problem can be solved by adjusting the distance from the pinion to the rack. Here are the instructions: Adjusting-the-TS-CF-Apo-Focuser.pdf
