Skywatcher SynCam 533C USB 3.0 Color Astro Camera - Sensor D=16 mm, 3.76 µm pixel size

Name: Skywatcher SynCam 533C USB 3.0 Color Astro Camera - Sensor D=16 mm, 3.76 µm pixel size
Brand: Skywatcher
SKU: SK533C
Price: 599 EUR

The main application of this camera is high-resolution planetary photography, as well as photography of the Sun´s and Moon´s surfaces. But it can also deliver excellent results for beginners in deep-sky photography of galaxies and nebulae.

Sensor: 1" CMOS IMX533 with 9.04 megapixels resolution

Sensor size: 11.3 mm x 11.3 mm - diagonal: 16 mm

Very high resolution: 3008 x 3008 pixels with 3.76 µm pixel size

Excellent camera for planets, the Sun, and the Moon

Well-suited for videography thanks to a high frame rate of 40 fps

The Sun and Moon are fully imaged up to approx. 1100 mm focal length

Also well-suited for deep-sky imaging

Starvis 2 technology with back-illumination

USB 3.0 for fast image download

14-bit ADC

No amp glow

Manufacturer: Skywatcher

Product number: SK533C

EUR 599,00

incl. 19 % VAT (DE)

The VAT indicated refers to that applicable in Germany. After logging in, the VAT amount is adjusted to the applicable VAT of the stored delivery country. Therefore, the final price may vary accordingly.

excl. 7.95 € shipping costs (DE)

Please log in to calculate shipping costs to your country.

more details to the shipping costs ...

There are no reviews for this product

Roll over image to zoom in or klick it. The appropriate zoom factor ist adjustable with the mouse wheel.

Skywatcher SynCam 533C USB 3.0 Color Astro Camera - Sensor D=16 mm, 3.76 µm pixel size

The main application of this camera is high-resolution planetary photography, as well as photography of the Sun´s and Moon´s surfaces. But it can also deliver excellent results for beginners in deep-sky photography of galaxies and nebulae.

Sensor: 1" CMOS IMX533 with 9.04 megapixels resolution

Sensor size: 11.3 mm x 11.3 mm - diagonal: 16 mm

Very high resolution: 3008 x 3008 pixels with 3.76 µm pixel size

Excellent camera for planets, the Sun, and the Moon

Well-suited for videography thanks to a high frame rate of 40 fps

The Sun and Moon are fully imaged up to approx. 1100 mm focal length

Also well-suited for deep-sky imaging

Starvis 2 technology with back-illumination

USB 3.0 for fast image download

14-bit ADC

No amp glow

Details..
Technical data..
In the box..
Manufacturer infos..
Safety informations..

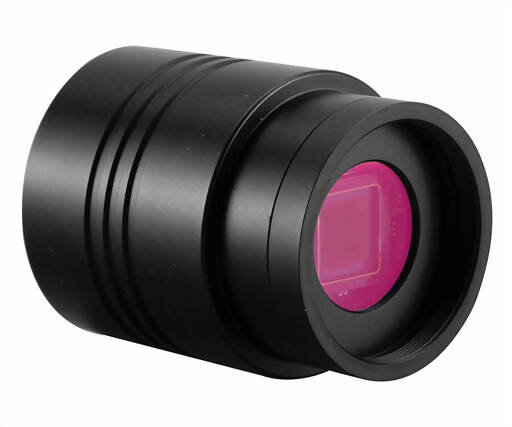

Skywatcher SynCam 533C USB 3.0 Color Astro Camera - sensor D=16 mm, 3.76 µm pixel size, passive cooling

The Sky-Watcher SynCam 533C amateur astronomy camera is a highly compact, passively cooled CMOS color camera with 9.04 megapixels resolution, featuring the proven Sony IMX533 sensor featuring 3.76 µm square pixels.

Its primary applications are high-resolution planetary photography and photography of the Sun and Moon. However, thanks to the extremely low readout noise and the absence of amplifier glow in its image sensor, it is also suitable for entry-level deep-sky photography of galaxies and nebulae. Using stacking or live stacking with compatible software, detailed, low-noise images can be achieved.

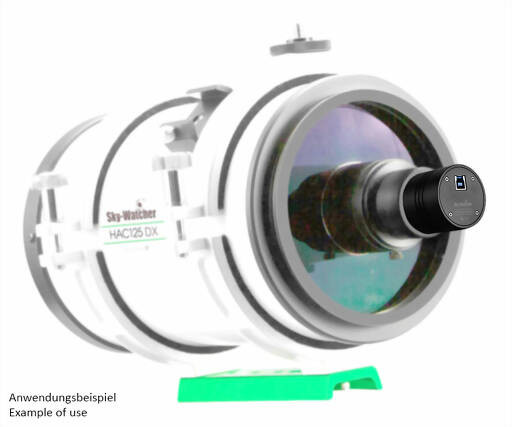

Thanks to its compact design, light weight, and small diameter, this camera is an ideal match for for the Sky-Watcher HAX125DX Honders Miniastrograph, as a larger camera would be too bulky and obstruct the telescope´s aperture. The black housing design prevents unwanted reflections.

The SynCam 533C camera is fully compatible with the software ecosystem of ToupTek Astronomy Inc. and is supported by a wide range of astrophotography acquisition and control applications.

Supported operating systems: Windows, macOS (OS X), Linux, Android.

Supported software: ASCOM, SharpCap, Nebulosity, DeepSky Stacker, N.I.N.A., FireCapture, MaximDL, ToupSky, INDI, PHD Guiding, Registax, INDIGO, MetaGuide, AstroStack. The camera´s high performance and wide range of applications will provide users with outstanding astrophotography results.

The SynCam 533C is supplied complete with protective dust cap, USB 3.0 cable and 1.25"-to-M42x0.75 adapter.

Sensor:	Sony IMX533 back-illuminated CMOS color sensor
Resolution:	9.04 megapixels (3008 x 3008 pixels)
Pixel size:	3.76 µm x 3.76 µm
Sensor area:	11.31 mm x 11.28 mm (diagonal 16 mm)
Sensor format:	1"
Telescope connection:	T2 (M42x0.75) thread
ADC:	14-bit
Buffer memory:	512 MB
Sensitivity:	533 mV at 1/30 s
Readout noise:	1.26 to 1.11 e-
Maximum frame rate:	40 FPS in 8-bit mode
Max. SNR:	47 dB
Dynamic range:	83 dB
Back focus:	12.5 mm
Capture system:	Still image and video
Cooling:	Passive
Dimensions:	Diameter 55 mm, height 67.5 mm
Weight:	140.5 g

- SynCam 533C camera
- Dust cap
- USB 3.0 cable
- 1.25" to T2 adapter

Manufacturer / Importeur:	Optical Vision Limited
Street:	Duracher Straße 11
ZIP / City:	87437 Kempten
Country:	Germany
Telefon number:	+49 831 697288210
Email:	accounts@opticalvision.co.uk
Website:	www.opticalvision.co.uk
