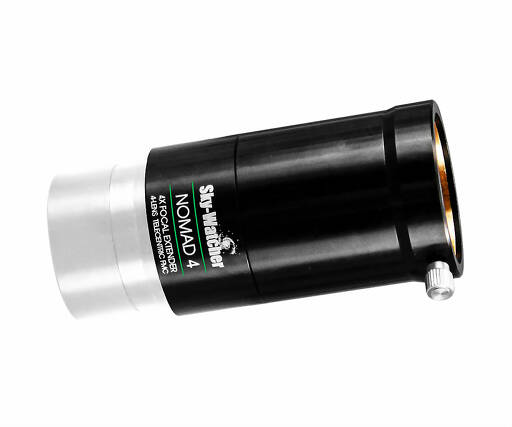

Skywatcher Nomad-4 - telecentric 1.25" Barlow lens 4x - 4 elements

Skywatcher 1.25" 4x Barlow Lens Nomad-4 - telecentric, 4 elements

The Premium Barlow offers increased focal length extension with excellent imaging. Even fast Newtonian telescopes or high-quality apochromatic refractors can be combined well with this Barlow lens.

The four element design improves field correction and prevents from introducing chromatic aberration, retaining the image quality of your telescope.

A brass compression ring locks accessories gently and with precision.

This Barlow lens meets even very high demands on optics and mechanics!

Visual Use
Used as a Barlow Lens with an eyepiece for visual use, it effectively multiplies the magnification of any eyepiece by five times, allowing for detailed observations of celestial objects such as the Moon and planetary surfaces. Constructed with premium high-index glass elements and multi coatings, it ensures minimal light loss and maximum clarity. Features a self-centering brass compression ring which avoids marring to eyepieces and a captive eyepiece retaining screw.

Imaging Uses
The premium 4-lens design provides images without colour difference as well as providing excellent field collimation. It is ideal for taking spectacular high resolution photos of planetary surfaces or the surface of the Moon without compromising the quality of the telescope. So in other words it will maintain the apochromatic performance of an ED apo telescope!! A CCD camera can be mounted directly using the supplied CCD adaptor. A DSLR camera can be mounted with the supplied DSLR adapter (camera M48x0.75 ring required).

The NOMAD-4 will be a very useful addition to the toolkit of many an astronomer!

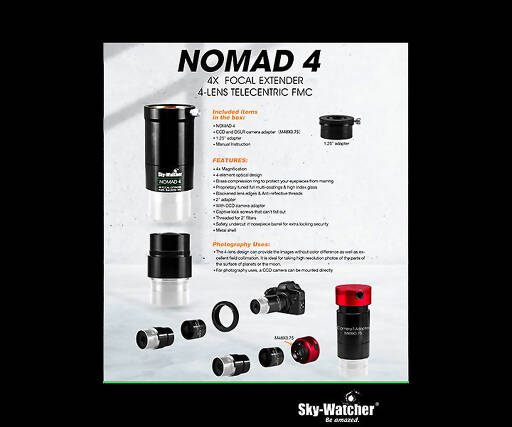

The features of the Nomad-4

4x magnification

4-element design

Self-centering brass compression ring to protect your eyepieces from marring

Proprietary tuned full multi-coatings & high index glass

Blackened lens edges & anti-reflective coated threads

1.25" eyepiece adapter

CCD adapter included

DSLR M48-mount adapter included (M48 ring required for DSLR)

Removable eyepiece adapter for direct access to the T-ring adapter connection

Secured clamping screws

2" (50.8 mm) Barrel, threaded for 2? filters

Safety undercut in nosepiece barrel for extra locking security

Metal body construction

Weight 405 g

Safety informations: PDF Download
