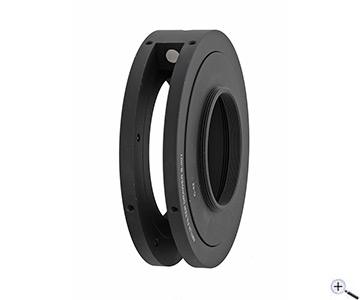

Antlia modular filter drawer M54 to M48 - length 21 mm

Name: Antlia modular filter drawer M54 to M48 - length 21 mm
Brand: ANTLIA
SKU: AFSM54-M48
Price: 107.62 EUR

The Antlia filter drawer for astrophotography allows filter change in a few seconds and is compact alternative to the filter wheel with enormous expansion possibilities.

Connection telescope side M54x0.75 female thread - length 5.5 mm

Connection camera side M48x0.75 male thread - length 3 mm

Effective length is 21 mm without the external thread

Diameter of the drawer is 80 mm

Weight only 85 grams without filter holder and filter

The filter holder (optional) engages exactly by 2 magnets. The orientation of the holder does not matter.

Additionally the drawer offers a mechanical fixation of the filter holder

The orientation of the drawer to the telescope and the camera to the drawer is freely adjustable

The set includes the base body for the filter holder, the connection adapter on the telescope side and the connection adapter on the camera side.

The drawer can be extended as required and can grow with your telescopes and cameras.

Manufacturer: ANTLIA

Product number: AFSM54-M48

EUR 107,62

incl. 19 % VAT (DE)

The VAT indicated refers to that applicable in Germany. After logging in, the VAT amount is adjusted to the applicable VAT of the stored delivery country. Therefore, the final price may vary accordingly.

excl. 6.95 € shipping costs (DE)

Please log in to calculate shipping costs to your country.

more details to the shipping costs ...

There are no reviews for this product

Roll over image to zoom in or klick it. The appropriate zoom factor ist adjustable with the mouse wheel.

Antlia modular filter drawer M54 to M48 - length 21 mm

The Antlia filter drawer for astrophotography allows filter change in a few seconds and is compact alternative to the filter wheel with enormous expansion possibilities.

Connection telescope side M54x0.75 female thread - length 5.5 mm

Connection camera side M48x0.75 male thread - length 3 mm

Effective length is 21 mm without the external thread

Diameter of the drawer is 80 mm

Weight only 85 grams without filter holder and filter

The filter holder (optional) engages exactly by 2 magnets. The orientation of the holder does not matter.

Additionally the drawer offers a mechanical fixation of the filter holder

The orientation of the drawer to the telescope and the camera to the drawer is freely adjustable

The set includes the base body for the filter holder, the connection adapter on the telescope side and the connection adapter on the camera side.

The drawer can be extended as required and can grow with your telescopes and cameras.

Details..
Technical data..
In the box..

Antlia modular filter drawer for astrophotography

The modular filter drawers from Antlia impress with their very good workmanship. The filters are brought into the light path very precisely. The CNC machining also guarantees optimal star images with very fast telescopes. The filter drawer is an exciting alternative to heavy filter wheels that weigh many times more.

The filter drawer offers professional adjustment options:

A ... Four screws for mounting and 360° rotation of the telescope-side connection adapter;

B ... Two screws for mechanical fixation of the filter holder (only useful if the filter is to remain permanently in the drawer);

D ... Four screws for mounting and 360° rotation of the camera-side connection adapter;

E ... Two magnets that fix the position of the filter holder

Applications of the Antlia filter drawer:

Deep sky astrophotography: L-RGB imaging, false color imaging, contrast enhancement by nebula filters with mono or color astro cameras and DSLR.

Planetary observation and planetary imaging: Quickly change color filters to enhance contrast effects. In photography, the images can be combined well later.

Deep sky observation: The impressions without filter, with UHC filter, O-III filter and other filters can be compared directly. This way you always get the maximum details out of the observed object!

One of the most versatile filter drawer systems on the market:

There is hardly a drawer system that is so modular and can grow with your requirements, your telescope or your camera. Even different filter sizes are no problem for the Antlia filter drawer. You can expand your drawer almost at will:

T-... Telescope side adapters from T2 to M68 and 2"

C-... Camera side adapters from T2 to M68 and 2"

B-... Filter holder for 1.25", 2" and of course unmounted filters

Bautyp:	Filterschublade
Type:	Filter drawer
Thread at telescope side:	M54x0.75 internal thread, length 5.5 mm
Thread at camera side:	M48x0.75 external thread, length 3 mm
Overall height:	21 mm without the M48 external thread
Diameter of the drawer:	80 mm without the screw
Weight of the drawer:	85 grams
Material:	aluminium
