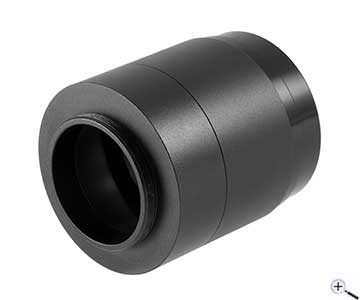

TS-Optics 1.0x Refractor Flattener for Telescopes to 350 mm Focal Length

Name: TS-Optics 1.0x Refractor Flattener for Telescopes to 350 mm Focal Length
Brand: -TS Zubehör
SKU: TSFlatED50
Price: 219 EUR

TS Photoline 1.0x flattener and field corrector for ED and APO refractor telescopes up to 350 mm focal length

The Flattener compensates the strong curvature of these small refractors.

The flattener is suitable for all refractors up to 350 mm focal length.

Corrected image field is 28 mm - suitable for cameras up to APS-C format.

Telescope side connection female SC thread (suitable for TS 50 mm f/6.6 ED apo) and an M54x0.75 male thread for further adaptations

Connection at camera side via T2 - M42x0.75 photo thread

Working distance of 55 mm from the T2 thread - with the matching T-adapter and a DSLR camera you are automatically at the optimal distance.

The focal length of the telescope is not changed

Telescope is not included in delivery.

Manufacturer: -TS Zubehör

Product number: TSFlatED50

EUR 219,00

incl. 19 % VAT (DE)

The VAT indicated refers to that applicable in Germany. After logging in, the VAT amount is adjusted to the applicable VAT of the stored delivery country. Therefore, the final price may vary accordingly.

excl. 6.95 € shipping costs (DE)

Please log in to calculate shipping costs to your country.

more details to the shipping costs ...

There are no reviews for this product

Roll over image to zoom in or klick it. The appropriate zoom factor ist adjustable with the mouse wheel.

TS-Optics 1.0x Refractor Flattener for Telescopes to 350 mm Focal Length

TS Photoline 1.0x flattener and field corrector for ED and APO refractor telescopes up to 350 mm focal length

The Flattener compensates the strong curvature of these small refractors.

The flattener is suitable for all refractors up to 350 mm focal length.

Corrected image field is 28 mm - suitable for cameras up to APS-C format.

Telescope side connection female SC thread (suitable for TS 50 mm f/6.6 ED apo) and an M54x0.75 male thread for further adaptations

Connection at camera side via T2 - M42x0.75 photo thread

Working distance of 55 mm from the T2 thread - with the matching T-adapter and a DSLR camera you are automatically at the optimal distance.

The focal length of the telescope is not changed

Telescope is not included in delivery.

Details..
Technical data..
In the box..
FAQ..
Manufacturer infos..
Safety informations..

TS-Optics Flattener / Image Field Corrector for refractors up to 350 mm focal length

Small refractor telescopes have a very strong field curvature, which can no longer be compensated by normal correctors. This corrector is specially designed for these telescopes. The corrector offers a very good field correction on all refractors up to 350 mm focal length. The use of cameras up to APS-C sensors is possible.

Advantages and features:

Connection on the telescope side via the SC female thread. No sticking and therefore no tilting.

An additional M54x0.75 male thread is available for further adaptations.

The corrector offers very good results with all refractors up to 350 mm focal length. It has been developed for the TS-Optics 50 mm f/6.6 ED Apo, among others.

M42x0.75 - T2 photo connector on the camera side for easy threading of all common DSLR and astro cameras.

Working distance of 55 mm from the T2 thread. With a suitable T-adapter, as it is linked in the accessories area, you automatically reach the correct distance with a DSLR.

The corrector is fully multi-coated. In addition, a matt black anti-reflective inner coating ensures absolute freedom from reflections. The image thus offers a very high contrast, which is also helpful for day photography (landscape, birds, ...).

Illuminated and corrected image field:	28 mm
Change of focal length:	no change of focal length
System:	Flattener / corrector for astrophotography
Connection at telescope side:	SC female thread - matching the connector of the TSED503 - and male M54x0.75 thread
Connection at camera side:	M42x0.75 T2 thread (male)
Working distance:	55 mm from the male T2 thread

TS Flattener

Question:
How do you have to measure the working distance?

Answer from Teleskop-Service:
The working distance is measured from the beginning of the connection thread on the housing of the corrector (see example picture):
