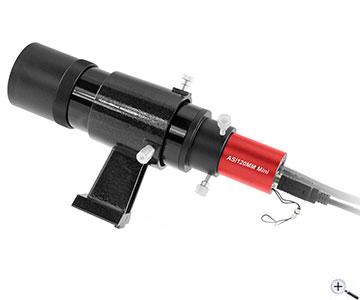

TS-Optics Universal Guiding Set TSL501M-AG for Astrophotography
Teleskop-Service offers a complete set, consisting of a compact mini guide scope and a powerful autoguiding camera, for long exposures with your telescope. This complete solution is easily to install and allows automatic active guiding, also called autoguiding. We recommend the set for guiding camera lenses and telescopes up to 8" aperture.
The adaptation to your telescope is very simple. You don´t need a complex piggyback construction, as the mini guide scope fits directly into the finder shoe of your telescope. Just remove the finder, insert the guide scope and you are ready to go. If you don´t want to remove your finder or do not have a standard finder shoe, we offer suitable finder shoes, for example for attaching to a tube ring.
The TSL501M-AG is very well suited for guiding of camera lenses. With the Guidemount, we offer a compact and above all lightweight mounting option for your camera with lens and, in parallel, for the TS guiding set TSL501M-AG. With this, you have an ultra-mobile astrophotography equipment which can be supported by small mounts and is also optimal for air travel.
Before the first use for guiding, please install camera drivers and any autoguiding software on your Windows computer or notebook. The autoguider software is not included in the scope of delivery. The camera is, among others, suitable for PHD Guiding, Guidedog, Metaguide, Guidemaster (freeware) or AstroArt, MaxIm DL (with costs).
Link to more information and Download to Open PHD GuidingLink to more information and download for GuideDog GuidingA suggestion: with the ASIAIR, the ASI120Mini and your smartphone turn into a fine autoguider which also works without computer, with higher sensitivity and resolution than the previous "stand-alone" autoguiders ... for really little money - simply calculate and compare.Step by step to perfect autoguiding:
Attach the guiding set to the main telescope via a dovetail clamp or use a dual mount (see accessory recommendations). Connect the guiding camera to the mount. Use the ST-4 autoguider port of your mount. Connect the guiding cam to your Windows computer. Focus the camera by using the focuser of the guide scope - and you are ready to begin with astrophotography.The astro camera ZWO ASI120MM Mini is more than just an autoguider.
The camera can also be used well for imaging moon and planets and even brighter deep-sky objects. You can attach the camera to your telescope simply like a 1.25" eyepiece, focus and start right away. Comprehensive image processing aoftware is included in the scope of delivery.
... here, you can learn more about the ZWO ASI120MM mini astro camera and autoguiderDownloads, drivers:
ZWO provides software and drivers online for free download.
Software and drivers for all ZWO cameras
