Altair MG32 Mini Guide Scope + GPCAM Clamp + GPCAM2 GP130M Guide Camera
You can guide a refractor or camera lens up to 600 mm focal length, attached to a small equatorial mount. Polar alignment is also possible if you use suitable software for the camera.
small and accurate - only 350 grams weight and 165 mm length, but usable upt to 600 mm focal length of the telescope no flexing, due to metal design and threaded connection to the camera tube can be used with many existing finder scope rings comes with the sensitive GPCAMv2 AR0130 Mono Camera polar alignment possible with SharpCap PRO software (1 year free license) can be used for wide-field imaging standard C/CS mount for camera
- Details..
- Technical data..
- In the box..
- Manufacturer infos..
- Safety informations..

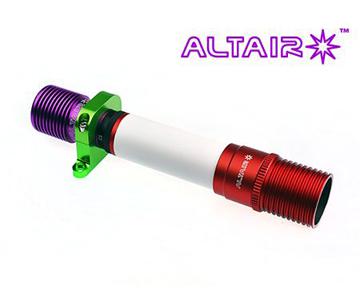

Altair MG32 Mini Guide Scope and Polar Alignment Scope + GPCAM Clamp + GPCAM2 Mono Guide Camera
The Altair MG32 Mini Guide Scope is a small "set and forget" high quality optical tube, which comes with the sensitive GPCAMv2 AR0130 Mono Camera, plus the GPCAM Clamp.
The guide scope is compatible with the sensitive GPCAMv2 AR0130 mono camera for direct connection, and most other small guiding cameras with the C or CS thread on the front (CS adapter included).
Features:
All Metal OTA construction Direct threaded connection for zero flex Mounting clamp for dovetail bars High quality lens with AR coatings Sensitive GPCAMv2 AR0130 Mono Camera
Note: Altair cameras fit directly without the CS adapter. Just remove the front black nosepiece marked "CS" from your camera and screw it onto the rear of the MG32 Miniguider so the purple part of the camera marries up to the red rear part of the MG32.

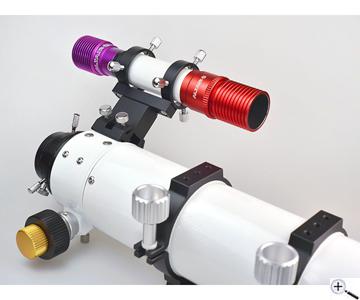

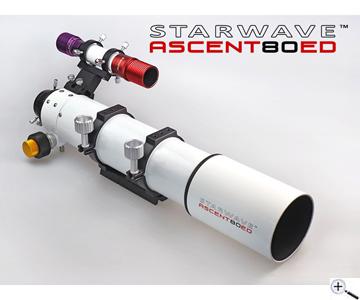

The MG32 is small, very compact, and light - ideal for portable wide field imaging. You can mount it on just about any telescope dovetail bar with the GPCAM Clamp.
Benefits:
Small and accurate: This is the perfect guider for your iOptron SmartEQ PRO, SkyGuider, Star-Adventurer or other small mount. It delivers good accuracy with refractors and camera lenses up to 600 mm focal length. Weight is about 350 grams and length is 165 mm.
Perfect for polar alignment with SharpCap PRO and Altair GPCAM: You get a free 1 year SharpCap PRO software license with the camera, so you can polar align your telescope or camera lens with extreme accuracy out of the box in minutes. Your MG32 doesn´t even need to be perfectly aligned with your optical tube. You can just point the finder scope within 5 degrees of the north or south celestial poleand the software will do the rest. This alone will revolutionise your imaging.
Zero flex, and your guide camera will stay in perfect focus forever: The camera is threaded into the optical housing, so you don´t need to worry about differential flex. The finder scope front lens is rotated to focus, then the locking ring is tightened up. You are now focused forever.
Fits most existing finder scope rings: The tube diameter (white part) is 36 mm enabling and 85 mm long enabling it to be used with most finder scope rings. The full length is 165 mm with dewshield retracted, 185 mm with dewshield fully extended.
What you get in this package:
MG32 Finder/Guide Scope with GPCAM Clamp and GPCAMv2 AR0130 mono camera: MG32 Optical Tube with 32 mm fully coated doublet lens, 126.56 mm focal length, F/3.955 Front rubber dust cap, rear threaded dust cap. A CS-Mount connector ring to attach 3rd party cameras with CS female front threads. (Not required for Altair Cameras - just remove the black C-Mount part in your Altair camera and screw the camera straight into the red rear ring). A GPCAM-CLAMP with 2 outer holes 60mm centre-to-centre spacing to fit Altair and most other Losmandy plates and most telescope tube rings. Two Stainless M6 screws to attach the clamp to your scope or dovetail plate. Note: The GPCAM clamp has a centreline 1/4"-20 UNC threaded hole for tripod attachment. The sensitive GPCAMv2 AR0130 monochrome camera
Lens: | 32 mm doublet |
Coating: | Fully coated |
Focal length: | 126.56 mm |
Focal ratio: | f/3.955 |
Camera mount: | C/CS |
Tube diameter (white part): | 36 mm |
Tube length (white part): | 85 mm |
Full length (dew shield retracted): | 165 mm |
Full length (dew shield extended): | 185 mm |
Sensor type: | Aptina AR0130 monochrome CMOS sensor |
Sensor size: | 1/3" diagonal (4.8 mm x 3.6 mm) |
Pixel size: | 3.75 µm x 3.75 µm |
Resolution in pixels: | 1280x960 |
GPCAMv2 AR0130 monochrome camera Two stainless steel M6 screws
Manufacturer / Importeur: | Altair Astro Limited |
Street: | Unit 2 Earl Road, Rackheath Industrial Estate |
ZIP / City: | Rackheath, Norwich, Norfolk NR13 6NT |
Country: | United Kingdom |
Telefon number: | +44 1603 721946 |
Email: | info@altair-astro.com |
Website: | www.altairastro.com |
