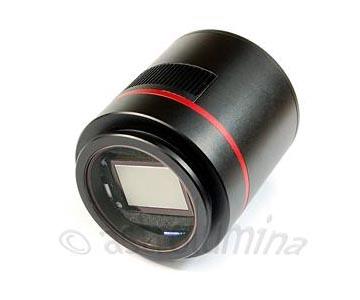

This camera is a price-sensitive alternative to top-of-the-line CCD systems. But it offers the same image quality!

With its body weight of 720 g only, the camera puts no stress to the focuser and allows easy framing with its rotatable M54 adapter.

Receive unparalleled true fields of view with the huge full format sensor, especially when combined with a short focal length astro camera!

Top features:
high sensitivity
little noise
fast data transfer
very large chip size (37.25 mm x 25.70 mm)
compact and lightweight body
efficient software
ASCOM support

Good storage is an important preventive measure against dew and also extends the service life:

After use, put the camera straight into the TS Protect Case and add some silica gel. During storage, the silica gel absorbs the moisture from the camera. At the same time, the penetration of moist room air is prevented. Dry storage can even partially regenerate the small desiccant tablets in cooled cameras. Your camera or accessories are always ready for you in optimum condition. You can find the silica gel and the case in our product recommendations.

The cameras are not airtight, so if the camera remains on the telescope, it is exposed to moisture. The small amount of desiccant in the camera can protect the sensor and the inside of the protective glass from moisture for the duration of the exposure, but not for days on end. Moisture problems can be the result. A simple trick is to stretch a plastic bag around the focuser to which the camera is attached so that no air can get in. Silica gel is placed in a small cloth bag inside the plastic bag. This will also create a "dry climate zone" for the camera on the telescope. This allows you to leave the camera on the telescope for a few days for an imaging session lasting several days.

In the medium and long term, however, this is no substitute for proper storage in an airtight case with silica gel.
Sensor:Kodak KAI-11002
Total pixel:4072 x 2720 / 11 MPixels
Active pixels:4032 x 2688 / 11 Mpixels
Pixel Size:9.0 µm x 9.0 µm square
Sensior Size:37.25 mm x 25.70 mm (diagonal 45,26 mm)
Readout noise:12-14 e- @1Mpixel/s
Preview Speed:3 Mpixel/s
Peak QE:50%
FullWell:55-60 Ke-
Chip surface:Micro lenses on chip
Exposure times:0.1 - 10000 seconds
Readout:Progressive Scan
ABG:1000X
Conversion:16 bit ADC with CDS and Preamp
Interface:USB2.0 High Speed
Cooling:2-Stage TEC cooling (dT max
Buffer:Builz-in 32MByte SDRAM buffer
Temp. Sensor:Built-in, 16 bit
Controller:DC102 DC adapter & TEC Controller
Power supply:12VDC, 1.2 A max.
Case:fully airproof with 4.0 mm purging sockets
Connection thread:M54x0.75
Sensor back focus:13.5 mm to ring dovetail
Backfocus with rotation adaptor:17 mm to M54 adapter
Body dimensions:107 x 90 mm (L x D)
Weight:720 g
Camera head with M54x0.75 connection
DC-201 power supply box with cable
USB cable
Software and drivers
German instruction manual

Manufacturer / Importeur:Astrolumina Michael Breite
Street:Alfred-Wirth-Straße 12
ZIP / City:41812 Erkelenz
Country:Deutschland
Telefon number:+49 2431 9730725
Email:info@astrolumina.de
Website:www.astrolumina.de
Safety informations: PDF Download
