EUR 945,00

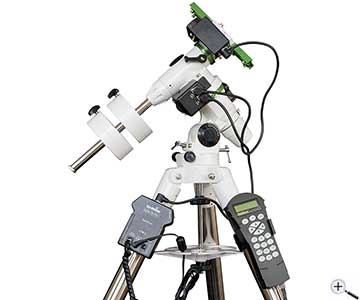

Bauart: | Äquatoriale GoTo Montierung |
Motoren: | Schrittmotoren mit 1,8° Schrittwinkel und 64 Mikroschritten |
Nachführung: | Einachsen- und Zweiachsen-Nachführung |
Nachführgeschwindigkeiten: | 0,25x, 0,5x, 0,75x über Autoguiding und Mond, Sonne der Siderisch (1x) |
Computeranschluss: | USB-B Buchse |
RA Schneckenrad: | 92,5 mm Durchmesser, 180 Zähne |
RA Schnecke: | 25,5 mm Durchmesser, Stahl |
DEK Schneckenrad: | 34,3 mm Durchmesser, 65 Zähne |
DEK Schnecke: | 20 mm Durchmesser, Stahl |
Gewicht des Montierungskopfes: | 4,38 kg (3,28 kg ohne Dek-Achse) |
Benötigte Leistung: | 12 V DC, 3 A |
Empfohlenes Zubehör
TS-Optics 90° Winkeleinblick für Skywatcher Polsucher D=30 mm
EUR 126,95UVP EUR 149,00Sie sparen 14.8% (EUR 22,05)
TS-Optics BH-51AT kompakter Kugelkopf für Fotostative - 8kg Tragekraft
EUR 49,98UVP EUR 59,00Sie sparen 15.3% (EUR 9,02)
TS-Optics BH-58A - stabiler Kugelkopf für Fotostative - 15kg Tragekraft
EUR 58,98UVP EUR 79,00Sie sparen 25.3% (EUR 20,02)
TS-Optics Kamerabefestigung für D=20 mm Gegengewichtsstangen
EUR 49,90UVP EUR 69,00Sie sparen 27.7% (EUR 19,10)
Skywatcher 5,1 kg Gegengewicht mit D=20 mm Innenbohrung
EUR 49,95UVP EUR 59,00Sie sparen 15.3% (EUR 9,05)
TS-Optics Adapter für Zubehörbefestigung an D=20 mm Gegengewichtsstangen
EUR 26,50UVP EUR 39,00Sie sparen 32.1% (EUR 12,50)
TS-Optics BAG100 - gepolsterte Transporttasche mit Innentrennung L=100 cm
EUR 89,98UVP EUR 104,00Sie sparen 13.5% (EUR 14,02)
TS-Optics gepolsterte Tragetasche für SC RC MAK von 6" - 8" Öffnung
EUR 73,98UVP EUR 84,00Sie sparen 11.9% (EUR 10,02)
Orion Dynamo Pro Lithium Energiestation 155 Wh - EU AC Version
EUR 199,00UVP EUR 249,00Sie sparen 20.1% (EUR 50,00)
Bewertungen
Geschrieben von Werner Grotzke
am 2022-08-16
"Ausgezeichnetes Produkt. Ist Ersatz für eine ältere Meade-Montierung. Läuft gut mit Nachführungssystem MGEN3 ***"
Geschrieben von Walter Barre
am 2022-06-29
"Leicht zu bedienende Montage die meine Erwartungen erfüllt. Ein aufsteckbarer Winkeleinblick für den eingebauten Polsucher zur Ausrichtung währe wunschenswert."
Geschrieben von Roy Engman
am 2020-05-22
"I was looking for a more portable ""Travel Mount"" for Astrophotography with DSLR and smaller APO´s and the EQM-35 Pro seemed to fit the bill. After using the mount now for about 2 months, overall I´m pleased with it. The Pro´s are: Light weight and easily transportable (as compaired to my EQ-6). No need to dissassemble it, I can lay it across the back seat of my Car and close the doors. The Tri-pod is well built and sturdy. The larger RA Gear is pretty sturdy. The ability to remove the Declination Axis and use it in it´s RA only mode it really nice The Con´s: The Backlash ""out of the Box"" is awful...The first thing you need to do is adjust it. The built in Polar Scope is also awful...The crosshairs on the inner lens were skewed about 4° making it impossible to get any kind of Polar Alignment. I had to loosen the inner glass and try to rotate with my little finger into the correct position while trying not to smudge it with the grease that was liberly smeared on the inner threads, it´s still not 100% correct. I always have a larger elevation error than azimuthal. It took many, many Polar alignments to find the ""Sweet Spot"" on the Circles. I have a Polemaster but haven´t used it on the EQ-35 yet. Once the Polar Alignment issues were in hand it guides prety well. The Alu. motor brackets dont quite hold the motors in the correct place (too much play). If you loosen them for any reason male sure to check the alignment of the Brass gears when reassembling. I have loaded the mount with 2 DSLR´s and 300mm Zeiss Tele-Tessar Lenses (about 8kg)using 2x CA-VI TS-Optics Telephoto Lens and Camera holder with Vixen style dovetail bar and a TSDM39 TS-Optics Dual Mount EQ5 level. It´ not quite loaded up to it´s max but it´s close. I was able to get 4 min. unguided Subs in this configuration. When I reduced the weight to about 7kgs (changing to 200mm Takumar lenses)I was able to get 6 min unguided Subs. In a ""normal configuration with a single DSLR and Lens I was able to go 8 min. unguided. I haven´t used it yet guided...so I can´t give any impressions on PEC etc... Overall I´m very pleased with the Mount, for the Price and the ""Grab and Go"" portability it´s a bargin. I find the ability to make 5 to 8 min unguided Subs with minimal ""stuff"" (polemaster, computers etc...) fantastic. Literaly take it out of the Car, set it up, Polar Align and ready to Shoot... "
