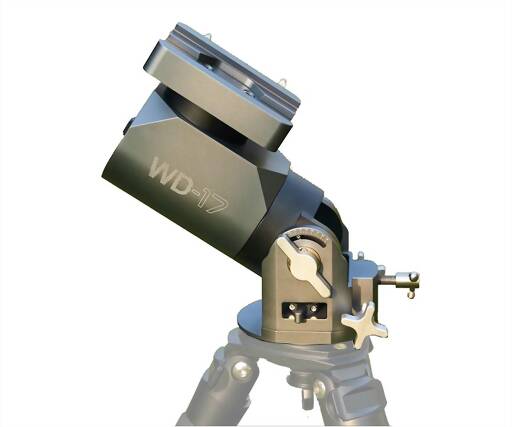

Warpastron WD 17 Harmonic Direct Drive GoTo Mount for telescopes up to 20 kg

Name: Warpastron WD 17 Harmonic Direct Drive GoTo Mount for telescopes up to 20 kg
Brand: WarpAstron
SKU: WD-17
Price: 2999 EUR

This equatorial mount has a load capacity of 13.5 kg without counterweight and 20 kg with rod and counterweight.

Maximum speed 3.5°/s

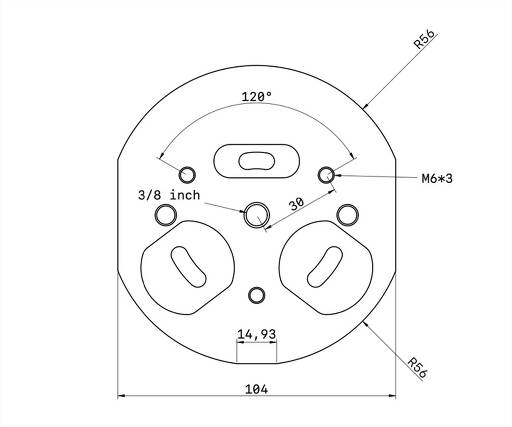

Compatible with 3/8" tripod threads or M6 holes with 30 mm center distance

ASCOM, ASIAIR and INDI compatible

Vixen and Losmandy saddle plate

Connection possible via Bluetooth, Wi-Fi, and USB (depending on firmware)

Connection possible via Bluetooth, WiFi and USB

Manufacturer: WarpAstron

Product number: WD-17

EUR 2.999,00

incl. 19 % VAT (DE)

The VAT indicated refers to that applicable in Germany. After logging in, the VAT amount is adjusted to the applicable VAT of the stored delivery country. Therefore, the final price may vary accordingly.

excl. 13.95 € shipping costs (DE)

Please log in to calculate shipping costs to your country.

more details to the shipping costs ...

There are no reviews for this product

Roll over image to zoom in or klick it. The appropriate zoom factor ist adjustable with the mouse wheel.

Warpastron WD 17 Harmonic Direct Drive GoTo Mount for telescopes up to 20 kg

This equatorial mount has a load capacity of 13.5 kg without counterweight and 20 kg with rod and counterweight.

Maximum speed 3.5°/s

Compatible with 3/8" tripod threads or M6 holes with 30 mm center distance

ASCOM, ASIAIR and INDI compatible

Vixen and Losmandy saddle plate

Connection possible via Bluetooth, Wi-Fi, and USB (depending on firmware)

Connection possible via Bluetooth, WiFi and USB

Details..
Technical data..
In the box..
Manufacturer infos..
Safety informations..

Warpastron WD-17 Harmonic Direct Drive Mount

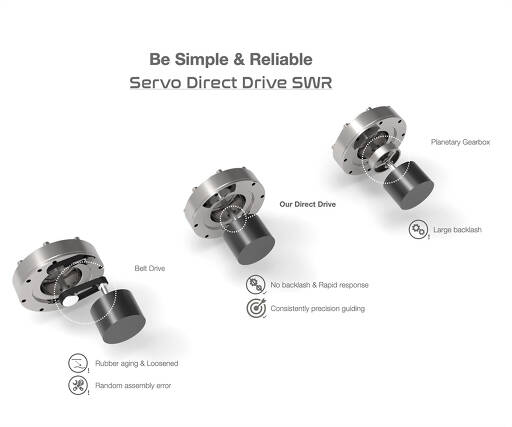

Servo motors with directly connecting to Strain Wave Gear. This is a true ?Harmonic Drive? mount exclude any traditional belt/planetary gearbox.
No worry of belt aging anymore with our mounts. Powerful servo motors with lowest system backlash structure for consistently tracking.

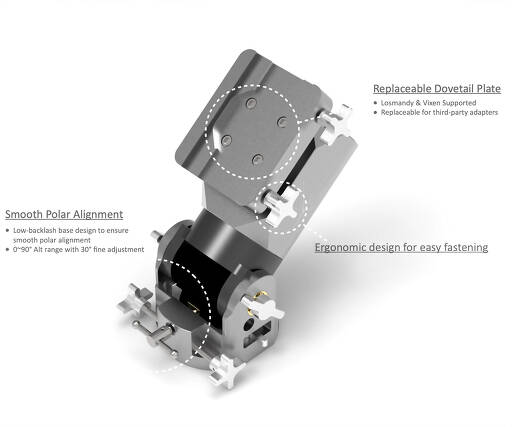

WD-17 can easily handle a 13kg load without counterweight. It has a smooth polar adjustment based on the design of the High-load WD-20.

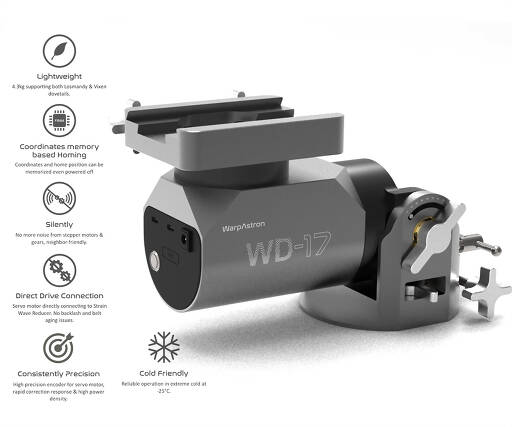

Built in GPS & Electronic Homing
Built in GPS module for closely working with NINA, and other controller at field operation.
Coordinates memory chip allows Electronic Homing feature during power cycles. Home coordinates will be stored even power off and back soon on your next operation.

Mount Type:	Equatorial/Altazimuth
Reduction GearRA:	17 Strain Wave Reducer, DEC
Drive:	Direct-drive motor with SWR
Motor:	BLDC Servo Motor
Load Capacity:	approx. 13.5kg without counterweights, approx. 20 kg with counterweights
Material:	AL6061, Stainless Steel, Brass, ABS
Brake:	RA Axis
Saddle:	Vixen & Losmandy
Counterweight Shaft:	M12 Shaft (1.75mm Pitch)
Slew Rate:	3.5°/s
Adjustment Range:	ALT 0~90°, AZ +/-8°
Operating Temp.:	-25 ~ 50 °C
Communication Protocol:	ASCOM/INDI/LX200/INDIGO
Home Control:	Electronic Homing(Coordinates Memory)
Time/Location:	Built-in GPS
Power:	12V 5A 5.5*2.1/2.5mm DC
Wireless:	WIFI 802.11g/Bluetooth
Weight:	4.3 kg

Mount head with Vixen style saddle

Hand controller
