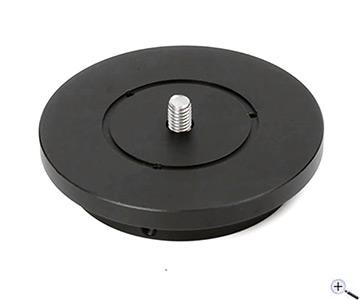

TS-Optics Tri-Pier Pier Adapter with 3/8" Photo Thread

Name: TS-Optics Tri-Pier Pier Adapter with 3/8" Photo Thread
Brand: -TS Montierungen
SKU: TSPier-38
Price: 169 EUR

The adapter allows the connection of ball heads, tilt heads and AZ mounts with the 3/8" photo thread to the TS Tri-Pier pier stand and also for DIY.

The adapter has a 3/8" photo thread (male thread ) on the top side.

Diameter at the bottom is 93.8 mm - fits the TS-Optics Tri-Pier pier tripod - also ideal for DIY with a pipe as pier.

Manufacturer: -TS Montierungen

Product number: TSPier-38

EUR 169,00

incl. 19 % VAT (DE)

The VAT indicated refers to that applicable in Germany. After logging in, the VAT amount is adjusted to the applicable VAT of the stored delivery country. Therefore, the final price may vary accordingly.

excl. 6.95 € shipping costs (DE)

Please log in to calculate shipping costs to your country.

more details to the shipping costs ...

There are no reviews for this product

Roll over image to zoom in or klick it. The appropriate zoom factor ist adjustable with the mouse wheel.

TS-Optics Tri-Pier Pier Adapter with 3/8" Photo Thread

The adapter allows the connection of ball heads, tilt heads and AZ mounts with the 3/8" photo thread to the TS Tri-Pier pier stand and also for DIY.

The adapter has a 3/8" photo thread (male thread ) on the top side.

Diameter at the bottom is 93.8 mm - fits the TS-Optics Tri-Pier pier tripod - also ideal for DIY with a pipe as pier.

Details..
Technical data..
In the box..
Manufacturer infos..
Safety informations..

TS pier adapter and tripod adapter for ball heads, tilt heads and AZ mounts

The adapter allows you to connect your mount or ball head to the TS-Optics Tri-Pier column tripod. The attachment is made via the 3/8" photo thread.

How to attach your mount to the pier tripod or pier with this adapter:

Screw the adapter to the bottom of the mount. Use the matching washer with the slot, this will seat the mount snugly, but it can still be adjusted.

Then place the mount with the attached adapter on the pier or on the pier extension of the TS-Optics Tri-Pier pier tripod. The adapter fits all piers with 94 mm inner diameter.

For fixation, the pier adapter provides three radially arranged female M6 threads (distance 120° to each other) at the ring base on the bottom side. Axial fixing is possible via three M4 female threads in the ring groove, but there are hardly any ready-made tripods or similar bases available. Therefore, practically only a pipe comes into question as a pier.

Diameter of the adapter at the bottom:	93.8 mm
Height of the bottom flange:	14 mm
Thread on the top:	3/8" photo thread
Ring groove radius:	30 mm
Holes in ring groove:	3x M4 female threads, offset by 120° each

TS mount adapter

Counter screws with washer
