TS-Optics Tri-Pier Pier Adapter for iOptron Mounts

Name: TS-Optics Tri-Pier Pier Adapter for iOptron Mounts
Brand: -TS Montierungen
SKU: TSPier-IO
Price: 169 EUR
Rating: 5 (1 reviews)

Adapter for iOptron mounts to the TS Tri-Pier pier tripod and also for do-it-yourself.

The adapter fits to iOptron mounts CEM70(G), CEM60(G), CEM40(G), CEM45(G), CEM26 and CEM28

Matching counter screws and the pin for the AZ adjustment are included

Diameter at the bottom is 93.8 mm - fits the TS-Optics Tri-Pier pier tripod - also ideal for DIY with a pipe as pier.

Diameter at the top is 149 mm

Manufacturer: -TS Montierungen

Product number: TSPier-IO

EUR 169,00

incl. 19 % VAT (DE)

The VAT indicated refers to that applicable in Germany. After logging in, the VAT amount is adjusted to the applicable VAT of the stored delivery country. Therefore, the final price may vary accordingly.

excl. 7.95 € shipping costs (DE)

Please log in to calculate shipping costs to your country.

more details to the shipping costs ...

rating: 5.0 of 5

Roll over image to zoom in or klick it. The appropriate zoom factor ist adjustable with the mouse wheel.

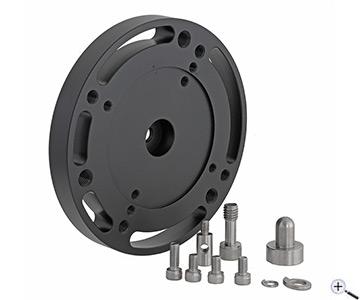

TS-Optics Tri-Pier Pier Adapter for iOptron Mounts

Adapter for iOptron mounts to the TS Tri-Pier pier tripod and also for do-it-yourself.

The adapter fits to iOptron mounts CEM70(G), CEM60(G), CEM40(G), CEM45(G), CEM26 and CEM28

Matching counter screws and the pin for the AZ adjustment are included

Diameter at the bottom is 93.8 mm - fits the TS-Optics Tri-Pier pier tripod - also ideal for DIY with a pipe as pier.

Diameter at the top is 149 mm

Details..
Technical data..
In the box..
Manufacturer infos..
Safety informations..

TS pier adapter and tripod adapter for iOptron mounts and similar

The adapter allows you to attach your mount to the TS-Optics Tri-Pier pier tripod or to do-it-yourself pier.

How to attach your mount to the pier tripod or pier with this adapter:

Screw the adapter to the bottom of the mount. Use the matching washer with the slot, this will seat the mount snugly, but it can still be adjusted.

Then place the mount with the attached adapter on the pier or on the pier extension of the TS-Optics Tri-Pier pier tripod. The adapter fits all piers with 94 mm inner diameter.

For fixation, the pier adapter provides three radially arranged female M6 threads (distance 120° to each other) at the ring base on the bottom side. Axial fixing is not provided. Therefore, practically only a pipe comes into question as a pier.

Diameter of the adapter at the bottom:	93.8 mm
Height of the bottom flange:	14 mm
Height of the upper flange:	18 mm
Distance of M6 thread from the bottom:	5 mm (center of hole)
Diameter of the adapter on the top side:	149 mm

TS mount adapter

Pin for AZ adjustment

Various screws
