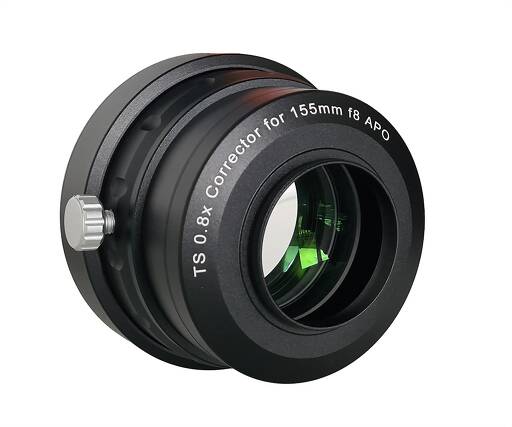

TS-Optics 0.8x corrector for TS 155 mm f/8 CF-Apo - M54 connection

Name: TS-Optics 0.8x corrector for TS 155 mm f/8 CF-Apo - M54 connection
Brand: -TS Zubehör
SKU: TSRED155-M54
Price: 782 EUR

The corrector and focal length reducer is designed for the TSCFAPO155 and enables astrophotography through this telescope.

Suitable for the TS 155 mm f/8 CF Apo and similar telescopes

The focal length is reduced to 80% and the focal ratio is improved - from f/8 to f/6.4

The corrector is designed for cameras up to full frame

Connection on the telescope side via M92x1 thread (compatible with TSCFAPO155)

Connection on the camera side via M54x0.75 photo thread - particularly suitable for full-frame cameras

M72x1 thread for individual adaptations

Working distance is 55 mm from the M54 thread

Manufacturer: -TS Zubehör

Product number: TSRED155-M54

EUR 782,00

incl. 19 % VAT (DE)

The VAT indicated refers to that applicable in Germany. After logging in, the VAT amount is adjusted to the applicable VAT of the stored delivery country. Therefore, the final price may vary accordingly.

excl. 6.95 € shipping costs (DE)

Please log in to calculate shipping costs to your country.

more details to the shipping costs ...

There are no reviews for this product

Roll over image to zoom in or klick it. The appropriate zoom factor ist adjustable with the mouse wheel.

TS-Optics 0.8x corrector for TS 155 mm f/8 CF-Apo - M54 connection

The corrector and focal length reducer is designed for the TSCFAPO155 and enables astrophotography through this telescope.

Suitable for the TS 155 mm f/8 CF Apo and similar telescopes

The focal length is reduced to 80% and the focal ratio is improved - from f/8 to f/6.4

The corrector is designed for cameras up to full frame

Connection on the telescope side via M92x1 thread (compatible with TSCFAPO155)

Connection on the camera side via M54x0.75 photo thread - particularly suitable for full-frame cameras

M72x1 thread for individual adaptations

Working distance is 55 mm from the M54 thread

Details..
Technical data..
In the box..
Manufacturer infos..
Safety informations..

TS 0.8x image field corrector for the CF Apo 155 mm f/8

The corrector is designed for this apo and delivers optimal astrophotographic results. Cameras up to full frame can be used and the star image is pinpoint sharp right up to the corners. In addition, the focal length of the apo is reduced to 992 mm. The focal ratio improves to f/6.4. You save around 36% in exposure time compared to a 1.0x flattener.

Connecting cameras to the correctorOn the camera side, the corrector has an M54x0.75 external thread. This thread offers 15% better illumination than M48. Therefore, we can recommend the corrector for all cameras up to full frame. The working distance is exactly 55 mm from the thread. There are suitable adapters for this thread and distance for all astro cameras. We will be happy to advise you.

The corrector has an additional M72x1 thread for individual adaptations, e.g. via M68x1, if you want to use a large off-axis guider, for example. We offer suitable adapters.

The connection on the telescope sideThe corrector has an M92x1 external thread on the telescope side. This thread allows you to screw the corrector directly into the focuser of the TS CF Apo. This prevents tilting and ensures optimal performance.

Device type:	Reducer/corrector for astrophotography
Focal length alteration:	0.8x reduction
Telescope connection:	M92x1 external thread
Camera connection:	M54x0.75 external thread, length 4.5 mm
Additional thread:	M72x1 internal thread on corrector
Working distance:	55 mm from the M54 thread, 73 mm from the M72 thread
Weight:	900 g

Corrector

Dust caps
