Like new: TS-Optics 0.82x field of view corrector/reducer for 76mm f 5.5 Triplet APO

Name: Like new: TS-Optics 0.82x field of view corrector/reducer for 76mm f 5.5 Triplet APO
Brand: -TS Zubehör
SKU: 2023-2604-2
Price: 199 EUR

The reducer is optimized for the TS 76mm f/5.5 APO and corrects the field of view for astrophotography up to full frame sensor.

# TSRED76: Showroom piece

Reduction factor 0.82x

360° rotation

Internal thread for 2" filter available in front of the camera

55 mm working distance from M48 thread on camera side

Connection to the telescope via M74 thread

Manufacturer: -TS Zubehör

Product number: 2023-2604-2

EUR 199,00

incl. 19 % VAT (DE)

The VAT indicated refers to that applicable in Germany. After logging in, the VAT amount is adjusted to the applicable VAT of the stored delivery country. Therefore, the final price may vary accordingly.

excl. 6.95 € shipping costs (DE)

Please log in to calculate shipping costs to your country.

more details to the shipping costs ...

There are no reviews for this product

Roll over image to zoom in or klick it. The appropriate zoom factor ist adjustable with the mouse wheel.

Like new: TS-Optics 0.82x field of view corrector/reducer for 76mm f 5.5 Triplet APO

The reducer is optimized for the TS 76mm f/5.5 APO and corrects the field of view for astrophotography up to full frame sensor.

# TSRED76: Showroom piece

Reduction factor 0.82x

360° rotation

Internal thread for 2" filter available in front of the camera

55 mm working distance from M48 thread on camera side

Connection to the telescope via M74 thread

Details..
Technical data..
In the box..

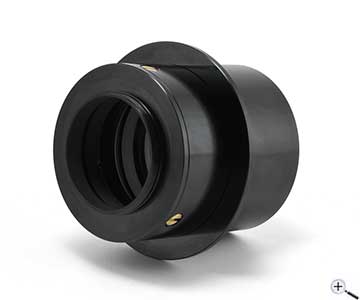

TS 0.82x 3-element corrector/reducer for the TSAPO76

The corrector was developed for the TS 76mm f/5.5 Apo. But the correction is also very good for other refractors with 350mm to 450mm focal length. The 3-element design provides sharpness and contrast to the corners of the image field.

The corrector has a M74x1 male thread for adaptation to the focuser. The part of the housing that is recessed into the focuser tube has a diameter of 70.5 mm. Therefore, the focuser tube must have an inner diameter of 71 mm or more. We offer an individual adaptation to eyepiece focusers with a large internal thread, the corresponding article (article number Sonder105) is linked in the accessories section.

On the camera side, the corrector offers 360° rotation. Removing the top reveals an M48x0.75 female thread where you can screw in 2" nebula filters.

The working distance from the M48x0.75 thread on the camera side to the sensor is 55 mm.

Lenses:	3-element design with one ED element
Connection telescope side:	M74x1 male thread
Connection camera side:	M48x0,75 thread
Working distance:	55 mm
Weight:	550 g
