Manufacturer: Rowan Astronomy
Product number: 22032215a

EUR 130,00


incl. 19 % VAT (DE)
The VAT indicated refers to that applicable in Germany. After logging in, the VAT amount is adjusted to the applicable VAT of the stored delivery country. Therefore, the final price may vary accordingly.
excl. 6.95 € shipping costs (DE)
Please log in to calculate shipping costs to your country.
more details to the shipping costs ...

  • Will be ordered for you


Pre Order:



There are no reviews for this product
  • Details..
  • Technical data..
  • In the box..
  • Manufacturer infos..
  • Safety informations..

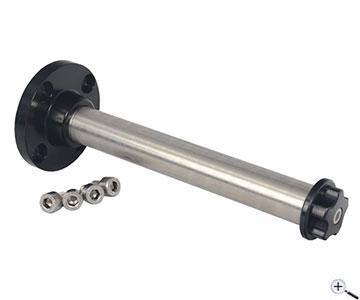

Rowan Astronomy AZ75 25 mm Counterweight Shaft with Mounting Flange
This rod is helpful for balancing the AZ75 mount when it is meant to hold only one telescope and therefore only a single saddle plate is attached. It accepts up to three counterweights (linked below, 3.8 kg each) and is connected to the mount via mounting flange.

How many counterweights to order?
Scopes under 5 kg you can usually mount without counterweight.
For scopes from 5 to 8 kg choose 1 counterweight.
For scopes from 9 kg to 14 kg choose 2 counterweights.
For scopes from 15 kg to 20 kg choose 3 counterweights.


These figures are approximate and equate to counterweights of 1/2 to 2/3 the weight of the OTA.
Diameter:25 mm
Length:325 mm
Mounting type:Mounting flange
Material:Stainless steel, anodised aluminium safety knob
Counterweight rod
Safety knob with integrated stop washer
Mounting flange
4 Mounting screws

Manufacturer / Importeur:Rowan Engineering Ltd
Street:8 Overfield, Thorpe Way
ZIP / City:Barnbury, Oxfordshire OC16 4XR
Country:United Kingdom
Telefon number:+44 1295 251188
Email:info@rowanengineering.com
Website:rowanengineering.com
Safety informations: PDF Download
