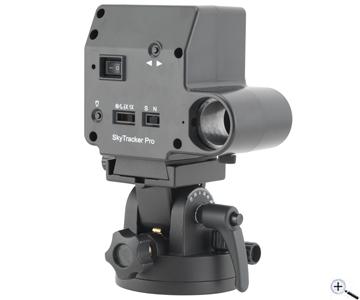

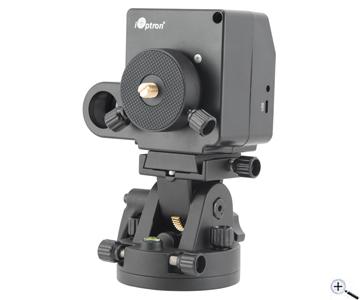

iOptron SkyTracker Pro Camera Mount

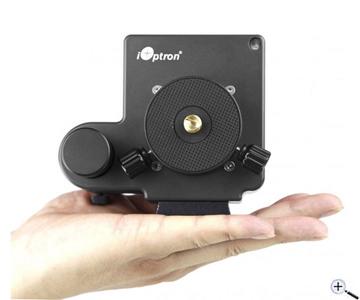

The new SkyTracker Pro from iOptron makes astrophotography easy. The compact and lightweight camera mount can be stored in any baggage. The internal power supply allows 24 operation before it has to be charged again. Thanks to the illuminated polar scope and the stable polar wedge with fine adjustment, the SkyTracker Pro is set up in a few minutes and fully operational. The Skytracker Pro fits to all popular photo tripods (with 3/8" photo thread), but also to astronomical tripods.

Fields of application of the SkyTracker Pro:
Ideal for astrophotography with camera lenses up to 300 mm focal length - the Skytracker holds photo equipment up to 1.3 kg or up to 3 kg with counterweight.
Half siderial speed allows including of foreground objects into the image.
Time-lapse exposures are possible as well. For this, the SkyTracker can be attached to a photo tripod without the polar wedge. For fast panning, 180x sidereal speed is possible.

Features of the SkyTracker Pro:
Load capacity up to 3 kg
Built-in power supply for up to 24 hours operation - rechargable via micro USB port
Illuminated polar scope, suitable for smartphone app
Integrated spirit level for precise positioning
Polar wedge with micro adjustment for precise polar alignment included
Tracking speeds 1x, 1/2x, solar, lunar and N/S operation directly selectable at the housing
Practical on-off switch
Tripod adaption via 1/4" or 3/8" photo thread
Padded carrying case included in the scope of delivery

Replaceable Battery
The battery installed in the Skyguider and Skytracker mounts is robust and durable, but like any battery, it loses some of its original capacity after a certain time.
If the remaining capacity is no longer sufficient for your application, you can replace the battery yourself with little effort. You can find the right replacement battery under "Recommended accessories".

Downloads:
The manufacturer has manuals, software and drivers available for download, you can get them here.
Mount:Ultra compact single axis EQ
Payload (MAX):6.6 lbs (3 kg) with optional counterweight or 1.3 kg without counterweight
Mount weight:685 g with battery
Mount weight with base:1150 g (2.53 lbs) with battery
RA shaft:D=25 mm, steel
Worm wheel:D=74 mm, 144 teeth aluminum alloy
Worm gear:D=11 mm, brass
Worm period:600 sec
Bearing:4 pieces
Motor drive:DC servo
Tracking:R.A. automatic
Tracking speed:1x celestial, 1/2x celestial, solar, lunar, N/S
Fast slew speed:180x, forward and reverse
Polar sight hole:~8° FOV
Polar scope:6° FOV, dark field illuminated (8 adjustable intensities)
Power supply:Internal rechargeable battery, already installed
Battery type:Li-Poly, 3.7 V, 2000 mAh
Duration of operation:Up to 24 hours at 20 °C
Power charge port:Micro USB (5V), 80% charge in 5 hours
Body dimension:115x115x95 mm
Working temperature:-15 °C to 40 °C
Mounting ring:D=53 mm, 3/8" or 1/4" post threads
Body-base connection:Vixen dovetail, 3/8" socket w/ 1/4" converter
Alt-Azi adjustable base:Vixen style saddle, 3/8" socket (1/4" converter)
Latitude adjustment range:-30° to 65° (with alt-az base)
AZ adjustment range:±5°
Base diameter:D=80 mm
SkyTrackerTM Pro camera mount

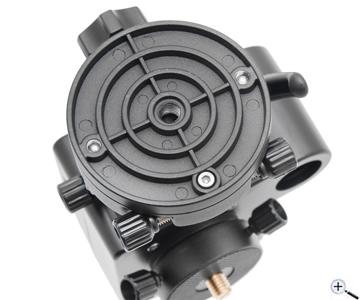

Alt-azimuth base (installed)
AccuAlignTM dark field illuminated polar scope
Brass 3/8" and 1/4" threaded ball head mounting post (installed)
Internal rechargeable battery, already installed
Micro USB charging cable
Padded carry bag
