DDoptics Spotting Scope EDX 82 S Body
Brilliant image, robust design and modular construction are features of the new spotting scope "EDX 82". It is prepared for interchangeable eyepieces and digiscoping!
60x magnification if appropriate eyepiece is used Interchangeable eyepieces Large lens diameter of 82 mm ED element for less chromatic aberration Compact, weatherproof, dirt-repellent lenses - a loyal companion
- Details..
- Technical data..
- In the box..
- Manufacturer infos..
- Safety informations..

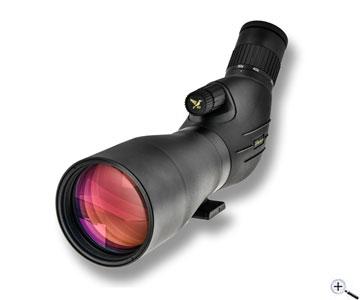

DDoptics Spotting Scope EDX 82 S Body
Discover the new DDoptics spotting scope – prepared for interchangeable eyepieces.
The new bayonet mount simplifies digiscoping, too.
Also among the features of the new spotting scope are a brilliant image, a robust design and a modular construction.
Spotting scope for interchangeable eyepieces
The spotting scope body with its angled view has an objective diameter of 82 mm for gathering much light. Two different eyepieces are available: EDX eyepiece for 20x to 60x magnification EDX eyepiece for 25x to 50x magnification
The eyepieces are ordered separately and, with 35-21 m resp. 42-27 m view at 1000 m, can be
categorised as wide-angle construction.
Capture the view

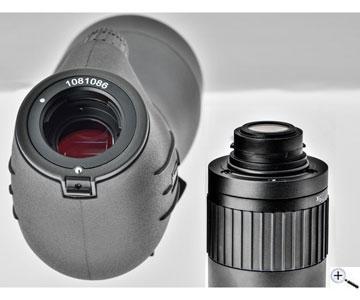

The spotting scope´s body is equipped with a bayonet connector which is not only used for mounting EDX eyepieces, but is also compatible with eyepieces of world´s leading optics manufacturers. Additionally, classical and digital SLR cameras can be attached to the "EDX 82" by means of an adapter. This makes changing between visual observing and digiscoping quick and convenient.
Very good optics
The especially coated ED elements, made of fluoride glass, offer sharp contours and brilliant, true colour images. The DDlucid coating, alreadily proven with the EDX binoculars of DDoptics, ensures maximal contrast, sharpness, brigthness and brilliance, it also guarantees a reflection-free image even under backlight conditions. The dual-speed system allows focusing with two different gear ratios - quick and precise.
Lightweight, but tough
With its length of 330 mm, the stable housing of the "EDX 82" is compact. The strong anti-slip armour provides grip and safe hold. By using the lightweight and stable magnesium, the body weighs only 1.350 gramms.
The spotting scope EDX 82 is nitrogen-filled and thus guaranteed to be waterproof. Furthermore, a dirt-repellent coating lets water droplets simply drip off. Thus the spotting scope can be used without problems even in the most adverse conditions, continuing to supply a very good image.
Lens type: | With fluoride ED glass |
Lens diameter: | 82 mm |
Magnification: | 20x to 60x or 25x to 50x |
Field of view (@ 1000 m): | 35-21 m or 42-27 m |
Exit pupil: | 4.05-1.4 mm oder 3.3-1.6 mm |
Eye relief: | 20-18 mm or 17 mm |
Prism type: | Porro |
Reflective prism coating: | no, as a Porro prism is used |
Length: | 33 cm |
Weight: | 1350 g |
Manufacturer / Importeur: | DDoptics Germany Optisch Geräte u. Feinwerktechnik GmbH |
Street: | Schönherrstraße 8, Gebäude 10c |
ZIP / City: | 09113 Chemnitz |
Country: | Germany |
Telefon number: | +49 371 57383010 |
Email: | info@ddoptics.de |
Website: | www.ddoptics.de |
