Borg 0.72x Quadruplet Super Reducer

Name: Borg 0.72x Quadruplet Super Reducer
Brand: Borg
SKU: BO7872
Price: 760 EUR

This four-element reducer system is designed specifically for the 90FL and 71FL/72FL objectives and will reduce exposure time to less than 52%.

Reduction factor: 0.72x

Back focus distance: 60 mm

Image coverage: Full frame

Objective side interface: M57 male

Camera side interface: M57 female

Manufacturer: Borg

Product number: BO7872

EUR 760,00

incl. 19 % VAT (DE)

The VAT indicated refers to that applicable in Germany. After logging in, the VAT amount is adjusted to the applicable VAT of the stored delivery country. Therefore, the final price may vary accordingly.

excl. 6.95 € shipping costs (DE)

Please log in to calculate shipping costs to your country.

more details to the shipping costs ...

There are no reviews for this product

Roll over image to zoom in or klick it. The appropriate zoom factor ist adjustable with the mouse wheel.

Borg 0.72x Quadruplet Super Reducer

This four-element reducer system is designed specifically for the 90FL and 71FL/72FL objectives and will reduce exposure time to less than 52%.

Reduction factor: 0.72x

Back focus distance: 60 mm

Image coverage: Full frame

Objective side interface: M57 male

Camera side interface: M57 female

Details..
Technical data..
In the box..

Borg 0.72x Quadruplet Super Reducer

This four-element reducer system is designed specifically for the 90FL and 71FL/72FL fluorite objectives.

It offers high imaging performance even in the image corners despite strong focal length reduction and reduces the exposure time to less than 52%.

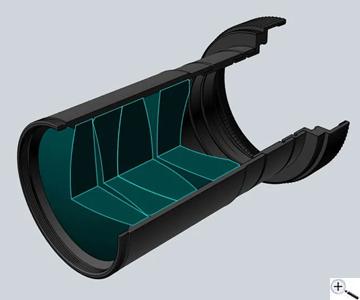

Design

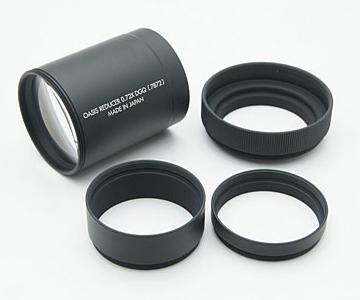

The reducer consists of the lens part and various rings: On the one hand, there is a thin spacer ring that is only needed with the 72FL and must be left out with the 90FL.

Then there is a thick spacer ring, which serves to compensate for the additional optical length of the Borg7519 filter drawer. However, since this filter holder must be used after the M57 retaining ring, it cannot be used with all tubes without shortening the tube.

Last is the actual retaining ring, which can be screwed directly into the original Borg focusers. However, a 2" filter can also be screwed into this. But then the camera has to be removed to change the filter.

Reduction factor:	0.72x
Back focus distance:	60 mm
Image coverage:	Full frame
Objective side interface:	M57 male
Camera side interface:	M57 female
Filter connection:	2" filter thread at front side and in M57 adapter
