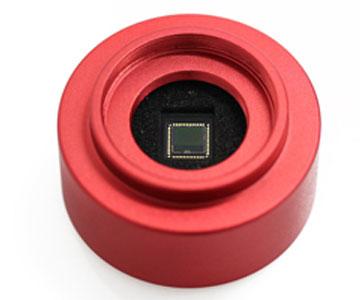

Astrolumina ALccd5T CMOS Colour Moon/Planetary Camera - 3 megapixels - 3.2 µm

Astrolumina ALccd-QHY 5T CMOS Colour Moon/Planetary Camera - 3 megapixels - 3.2 µm

The ALccd-QHY 5T is a CMOS camera like model 5. The camera´s sensitivity is at a similarly high level. The small pixel size also allows high-resolution images with reduced focal length, without having to use a Barlow lens.

In the ALccd-QHY 5T, a sensor from the semiconductor manufacturer Micron is used. It is the MT9T001 with DigitalClarity® Technology and extremely low power consumption. The pixel size is 3.2 microns. Like the ALccd-QHY 5, the 5T has an autoguider port. Thus, this camera can be used universally.

The required USB cable is included. A standard RJ-12 Autoguiderkabel is well. This example works with the controllers Koch FS2, Vixen Star Book, Sky-Watcher SynScan, Celestron NexStar, Losmandy Standard and Gemini (also older versions), Takahashi Temma, Astrophysics, Pulsar and many more. You can get a special cable for Boxdörfer controllers from the manufacturer, and an adapter for Vixen Skysensor from Astroelectronic Koch.

You prefer lunar / planetary photography, own a fast optics and need autoguiding now and then? Then you are making the right choice with the ALccd-QHY 5T.

Safety informations: PDF Download
