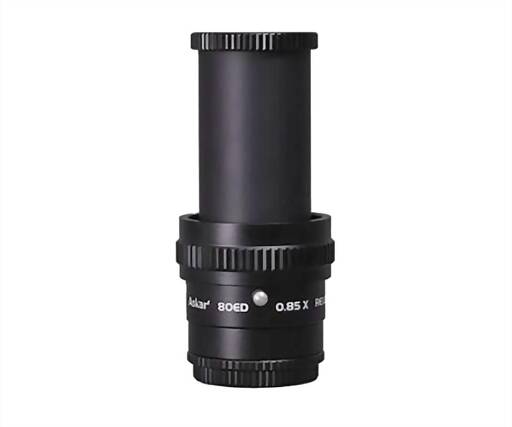

Askar 0.85x reducer and corrector for the 80mm f/7 ED refractor

Name: Askar 0.85x reducer and corrector for the 80mm f/7 ED refractor
Brand: Askar Sharpstar
SKU: ASR085ED80
Price: 275 EUR

The corrector allows astrophotography up to full-frame with the Askar 80ED while increasing the speed to f/5.95.

The corrector is designed for the Askar 80mm f/7 ED and provides optimal correction of the field

The focal length is reduced to 476 mm and the focal ratio is improved to f/5.95.

screwed connection to the focuser via the M58x1 thread

thread on the camera side - M48x0.75

Working distance 55mm from the M48 thread

Internal thread for 2" mounted filters (M48x0.75) is present

360° rotation for optimum orientation of the camera in relation to the object

Manufacturer: Askar Sharpstar

Product number: ASR085ED80

EUR 275,00

incl. 19 % VAT (DE)

The VAT indicated refers to that applicable in Germany. After logging in, the VAT amount is adjusted to the applicable VAT of the stored delivery country. Therefore, the final price may vary accordingly.

excl. 6.95 € shipping costs (DE)

Please log in to calculate shipping costs to your country.

more details to the shipping costs ...

Product expected to be available from 05.07.2025

There are no reviews for this product

Roll over image to zoom in or klick it. The appropriate zoom factor ist adjustable with the mouse wheel.

Askar 0.85x reducer and corrector for the 80mm f/7 ED refractor

The corrector allows astrophotography up to full-frame with the Askar 80ED while increasing the speed to f/5.95.

The corrector is designed for the Askar 80mm f/7 ED and provides optimal correction of the field

The focal length is reduced to 476 mm and the focal ratio is improved to f/5.95.

screwed connection to the focuser via the M58x1 thread

thread on the camera side - M48x0.75

Working distance 55mm from the M48 thread

Internal thread for 2" mounted filters (M48x0.75) is present

360° rotation for optimum orientation of the camera in relation to the object

Details..
Technical data..
In the box..
Manufacturer infos..
Safety informations..

Askar 0.85x corrector for 80mm f/7 ED refractor

The corrector improves the focal ratio from f/7 to f/5.95 and thus allows shorter exposure times and gives a larger field. It is designed for the Askar 80ED and offers good color correction due to the ED glass used. The corrector flattens the field and eliminates coma at the edge of the field of view. It is optimized for APS-C format, but can also be used with full-frame sensors, but then with a flat to achieve uniform illumination.

Product:	Focal reducer
Suitable for:	Askar 80mm f/7 ED
Reduction factor:	0.85x
Optical design:	Three lenses with one ED element
Thread on the telescope side:	M58x1 female thread
Thread on the camera side:	M48x0.75 male thread
Working distance:	55 mm
Additional thread:	M54x0.75 female thread
Mounting option for mounted 2" filters:	yes
360° rotation:	yes
Weight:	0.44 kg

Corrector

Dust caps
