TS-Optics Newtonian laser collimator 2" with M48 thread for screwing on

TS-Optics Newtonian laser collimator 1.25" - accurate collimation of Newtonians

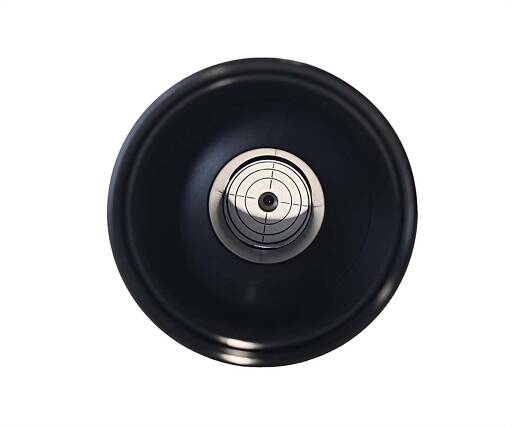

With the TS Newtonian laser collimator, you can accurately collimate your Newtonian telescope in just a few minutes. Check the collimation within seconds - you always have the guarantee of having a well-adjusted telescope.

The connection on the telescope side:

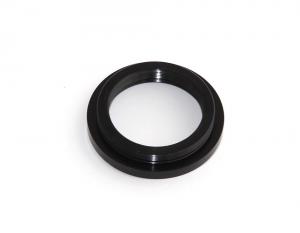

A 2" barrel is screwed onto the laser. This has a female M48x0.75 thread. This allows you to insert the laser directly into the 2" receptacle of your Newtonian or screw it to the focuser using an adapter. This produces better results because the connection to the focuser is more stable. This prevents tilting.

Replacing the battery:
The battery can be changed easily and there is no need to worry about the laser decollimating. The change is simple:

Loosen the lock ring on the top of the laser.

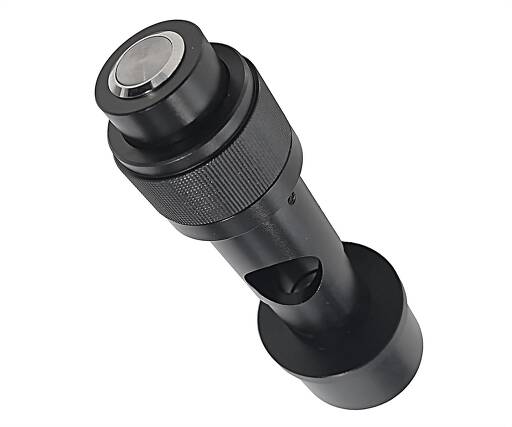

Then you can carefully lift the top with the on/off button. You will immediately see the holder for the battery.

Replace the battery and carefully reinsert the top part.

Secure the top part again with the lock ring - done!

Safety informations: PDF Download
