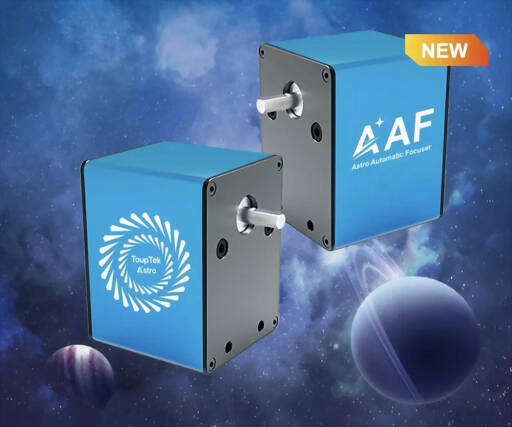

TS ToupTek AAF01 Motorfocus System

Name: TS ToupTek AAF01 Motorfocus System
Brand: -TS Zubehör
SKU: TPAAF
Price: 199 EUR

With this focusing motor, you can avoid blurred images, focus from a distance (also automatically) and compensate for temperature-related focus changes.

Integrated design, plug-and-play, stable hardware and software performance

Compatible with a wide range of third-party software through ASCOM drivers

Complete support of INDI and INDIGO drivers

Precise control, intelligent focus, one-click focusing through autofocus software

Manual focusing using the included hand controller

Integrated precise temperature sensor for monitoring temperature changes

Manufacturer: -TS Zubehör

Product number: TPAAF

EUR 199,00

incl. 19 % VAT (DE)

The VAT indicated refers to that applicable in Germany. After logging in, the VAT amount is adjusted to the applicable VAT of the stored delivery country. Therefore, the final price may vary accordingly.

excl. 6.95 € shipping costs (DE)

Please log in to calculate shipping costs to your country.

more details to the shipping costs ...

There are no reviews for this product

Roll over image to zoom in or klick it. The appropriate zoom factor ist adjustable with the mouse wheel.

TS ToupTek AAF01 Motorfocus System

With this focusing motor, you can avoid blurred images, focus from a distance (also automatically) and compensate for temperature-related focus changes.

Integrated design, plug-and-play, stable hardware and software performance

Compatible with a wide range of third-party software through ASCOM drivers

Complete support of INDI and INDIGO drivers

Precise control, intelligent focus, one-click focusing through autofocus software

Manual focusing using the included hand controller

Integrated precise temperature sensor for monitoring temperature changes

Details..
Technical data..
In the box..
Download..
Manufacturer infos..
Safety informations..

TS ToupTek AAF01 Motorfocus System - focusing motor incl. temperature sensor and hand controller

Avoid blurred images, focus precisely from a distance - even automatically - and compensate for changes in focus due to temperature fluctuations!

The supplied hand control allows you to focus on site if you simply do not want to touch the telescope to avoid shaking.

Focusing via suitable third-party software (via ASCOM, INDI or INDIGO drivers) can run automatically, and thanks to the integrated temperature sensor, even the influence of ambient temperature fluctuations on the focus position can be compensated for.

Support List:

Sykwatcher: Bull series, Black Diamond series, DOB series, etc.

AstroResearch: all series

Sharpstar: all series

SKYROVER: all series

TS Refraktoren / Astro Tech series

More models will be supported in the future.

Installation Instructions:

1. Check the packing list and use M3 screws to assemble the standard connection plate.

2. Remove the focusing knob from the telescope.

3. Select and install the appropriately sized flexible coupler.

4. Use M4/M5 screws to mount the AAF body onto the flexible coupler.

5. Install the standard connection plate on the focuser base, secure it with M4 screws to attach it firmly to the AAF and ensure stability.

6. Connect the USB data cable / temperature sensing cable / hand controller according to specific usage requirements.

Motor specifications:	35 mm stepper motor
Torque:	1.5 Nm
Effective load capacity:	5 kg
Data interface:	USB type C
Body material:	Aluminum alloy
Dimensions:	45 mm × 60 mm × 47 mm

Focusing motor body

Hand controller

USB type-C data cable, length 1 m

Temperature sensor with cable

Standard connection plate

4 flexible couplers

2 M3 screws, 4 M4 screws, 2 M5 screws, 4 washers

Set of hex wrenches

Quick Guide

Link to the quick guide in English language: TPAAF-Rapid-Operation-Guide.pdf

Manufacturer / Importeur:	Teleskop-Service Ransburg GmbH
Street:	Von-Myra-Str. 8
ZIP / City:	85599 Parsdorf
Country:	Germany
Telefon number:	+49 89 99228750
Email:	info@teleskop-service.de
Website:	www.teleskop-express.de
