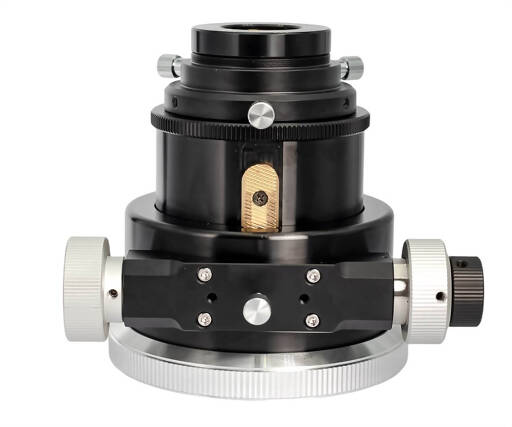

TS-Optics 3 inch RAP focuser with ball bearings for RC telescopes - M117x1 connection

Name: TS-Optics 3 inch RAP focuser with ball bearings for RC telescopes - M117x1 connection
Brand: -TS Zubehör
SKU: TSFOCRP3RC
Price: 425 EUR

Stable 2" focuser with rack and pinion adjustment, speed reduction and roller bearings for RC and Cassegrain telescopes with M117x1 thread on the tube

Telescope connection: female M117x1 thread with 360° rotation

Can also be attached to refractors via special adapter

Connection on the eyepiece side is 2" and 1.25"

M82x1 male thread, M77x1 female thread, M74x1 male thread and M68x1 female thread for screw adaptations

Drawtube travel is 50 mm

Bearing via stainless steel rail with ball bearings

Adjustment via toothed rack - rack-and-pinion principle

Suitable for EAF motorized focus without additional adapter

Manufacturer: -TS Zubehör

Product number: TSFOCRP3RC

EUR 425,00

incl. 19 % VAT (DE)

The VAT indicated refers to that applicable in Germany. After logging in, the VAT amount is adjusted to the applicable VAT of the stored delivery country. Therefore, the final price may vary accordingly.

excl. 6.95 € shipping costs (DE)

Please log in to calculate shipping costs to your country.

more details to the shipping costs ...

There are no reviews for this product

Roll over image to zoom in or klick it. The appropriate zoom factor ist adjustable with the mouse wheel.

TS-Optics 3 inch RAP focuser with ball bearings for RC telescopes - M117x1 connection

Stable 2" focuser with rack and pinion adjustment, speed reduction and roller bearings for RC and Cassegrain telescopes with M117x1 thread on the tube

Telescope connection: female M117x1 thread with 360° rotation

Can also be attached to refractors via special adapter

Connection on the eyepiece side is 2" and 1.25"

M82x1 male thread, M77x1 female thread, M74x1 male thread and M68x1 female thread for screw adaptations

Drawtube travel is 50 mm

Bearing via stainless steel rail with ball bearings

Adjustment via toothed rack - rack-and-pinion principle

Suitable for EAF motorized focus without additional adapter

Details..
Technical data..
In the box..
Manufacturer infos..
Safety informations..

TS 3" focuser with rack and pinion and ball bearings - M117x1 connection

The focuser fits directly to the M117x1 thread of the larger RC and Cassegrain telescopes from 10? aperture. It holds accessories up to 6 kg and, thanks to the combination of roller bearings and toothed drive, allows clean adjustment without tilting, even under maximum load. The base on the adjustment side is flat and equipped with two M4 female threads, so that a motorized focuser such as the EAF from ZWO can be mounted without an auxiliary adapter.

Connection to the telescope:

On the telescope side, the focuser has an M117x1 internal thread with a knurled union nut. The thread depth is 8 mm. The focuser can also be connected to other telescopes such as refractors using adapters to M117.

Connection of camera-side accessories:

Many threads are available for screw adaptations. Among other things, the focuser has the important M68x1 internal thread.

Connection telescope side:	M117x1 internal thread
Diameter of the draw tube outside:	92 mm incl. toothed rack and bearing
Diameter of the draw tube inside:	75.5 mm with anti-reflective thread
Connection thread on the draw tube:	M82x1 external thread, M77x1 internal thread
Additional connections using adapters:	M74x1 external thread, M68x1 internal thread, 2? and 1.25?
Short height:	Only 73 mm to the M68x1 internal thread incl. base
Travel:	50 mm travel range
Connection thread for motor focus:	two M4 female threads on the flat base
Material of the focuser:	metal - the base is also made of metal

Focuser

Adapter with M77x1 and M74x1 male thread and M68x1 female thread

2" and 1.25" adapter

1.25" dust cap
