Player One Ares-C Pro color astro camera, Sony IMX533 sensor D=16 mm

Name: Player One Ares-C Pro color astro camera, Sony IMX533 sensor D=16 mm
Brand: -TS Zubehör
SKU: TS533C
Price: 679 EUR

USB 3.0 color astro camera with powerful Sony CMOS sensor for astrophotography - square image format

1" format Sony IMX533 sensor - square, back-illuminated

3000 x 3000 pixels with 3.76 µm size

14 bit ADC - wide dynamic range

DDR Memory Buffer 512 MB - buffer memory for more stable data transport

No amp glow

Connection on telescope side: M42x0.75 female thread

Working distance only 12.5 mm from the female T2 (M42x0.75) thread

Multi-coated protective glass

43 fps at 10 bit resolution

Manufacturer: -TS Zubehör

Product number: TS533C

EUR 679,00

incl. 19 % VAT (DE)

The VAT indicated refers to that applicable in Germany. After logging in, the VAT amount is adjusted to the applicable VAT of the stored delivery country. Therefore, the final price may vary accordingly.

excl. 6.95 € shipping costs (DE)

Please log in to calculate shipping costs to your country.

more details to the shipping costs ...

There are no reviews for this product

Roll over image to zoom in or klick it. The appropriate zoom factor ist adjustable with the mouse wheel.

Player One Ares-C Pro color astro camera, Sony IMX533 sensor D=16 mm

USB 3.0 color astro camera with powerful Sony CMOS sensor for astrophotography - square image format

1" format Sony IMX533 sensor - square, back-illuminated

3000 x 3000 pixels with 3.76 µm size

14 bit ADC - wide dynamic range

DDR Memory Buffer 512 MB - buffer memory for more stable data transport

No amp glow

Connection on telescope side: M42x0.75 female thread

Working distance only 12.5 mm from the female T2 (M42x0.75) thread

Multi-coated protective glass

43 fps at 10 bit resolution

Details..
Technical data..
In the box..
Manufacturer infos..
Safety informations..

Player One Ares-C Pro color astro camera, Sony IMX533 sensor D=16 mm

Designed for Lunar, Solar and DSO lucky imaging
Based on IMX533 BSI sensor, high image quality, high resolution and square format, non-amp-glow feature, the camera will be great for lunar, solar and DSO lucky imaging. The 3.76 µm pixel size accommodates a well depth of 73Ke with a total of 9 MP (the resolution is 3008*3008), and the diagonal is 16 mm.

STARVIS Technology
Poseidon-C Pro (IMX571) cooled camera based on Sony STARVIS technology, it is back-illuminated pixel technology used in CMOS image sensors.

Extended Full well Capacity
The Full Well Capacity of the 533 series is 73Ke , this is almost 1.5 times the capacity of the IMX533 Basic FWC (50ke).

High Frame rate
The Player One Ares-C Pro camera can run 43FPS in 10 bit mode, that is much faster than existing models on market.

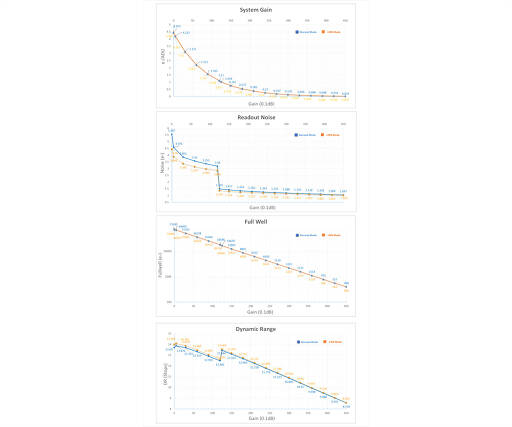

Dual Sampling Mode
The 533 series has dual sampling mode. Normal mode and Low Noise mode, they have different advantages in imaging.

Normal mode has faster FPS, it is more suitable for planetary imaging.

LRN (low readout noise) mode has lower readout noise and higher dynamic range. it is more suitable for DSO lucky imaging.

Non-Amp-Glow
The Player One Ares-C Pro is a Non-Amp-Glow camera too. Non-Amp-Glow can give us very clean background, so it is much easier to get high quaility images.

Sensor:	SONY IMX533 1" CMOS (color)
Diagonal:	16mm
Total Pixels:	9 Mega Pixels
Max Resolution:	3008×3008
Pixel Size:	3.76 µm
Chip Size:	11.31 mm × 11.31 mm
Frame Rate:	43 FPS (10 bit)
Bayer Matrix:	RGGB
Shutter:	Rolling shutter
Exposure Range:	32 µs-2000 s
Readout Noise:	4.46-1 e

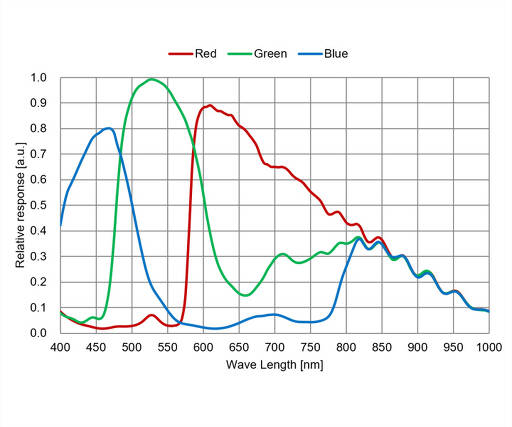

QE Peak:	ca. 80 %
Full well capacity:	73 ke
ADC:	14 bit

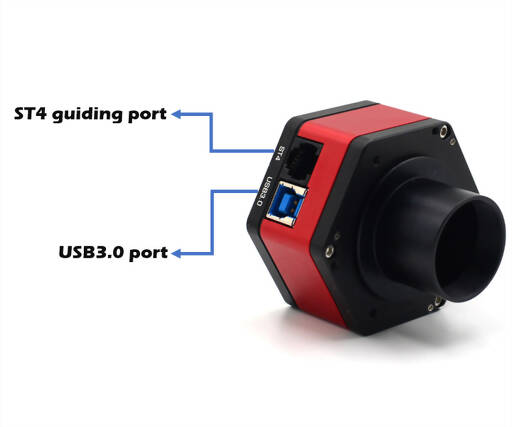

Data Port:	USB 3.0/USB 2.0
Adapter:	1.25" / M42X0.75

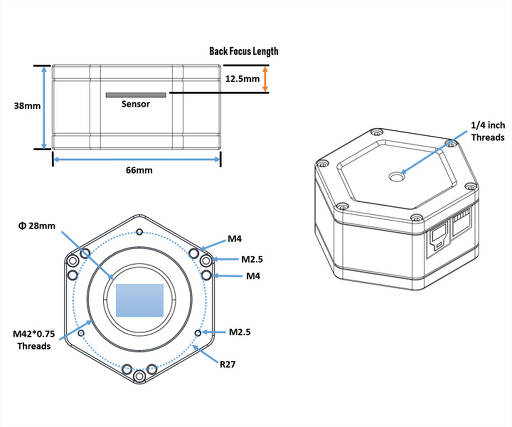

Back Focal Length:	12.5 mm
Protective Window:	High Quality Anti Reflection Multi-Layer Coating
Diameter:	66 mm
Weight:	160 g
Resolution and FPS in USB 3.0 mode:
10 bit ADC:	3008×3008 43 FPS / 2560×1440 95 FPS / 1920×1080 125 FPS / 1280×720 185 FPS / 800×600 220 FPS / 640×480 272 FPS
14 bit ADC:	3008×3008 19.5 FPS / 2560×1440 40 FPS / 1920×1080 53 FPS / 1280×720 79 FPS / 800×600 93 FPS / 640×480 115 FPS
More resolution options could be setup in the capture software!:

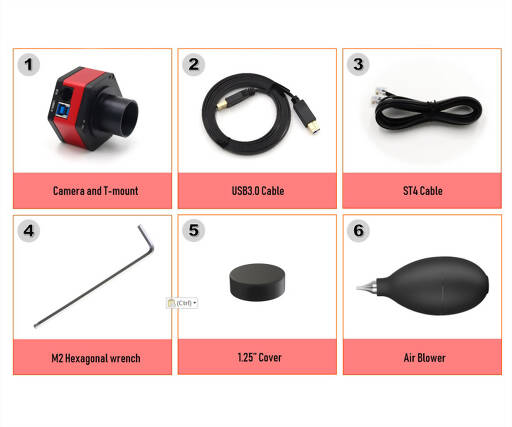

Camera
1.25" Adapter and Cover
Air Blower
USB 3 Cable
M2 Hexagonal Wrench

Manufacturer / Importeur:	Teleskop-Service Ransburg GmbH
Street:	Von-Myra-Str. 8
ZIP / City:	85599 Parsdorf
Country:	Germany
Telefon number:	+49 89 99228750
Email:	info@teleskop-service.de
Website:	www.teleskop-express.de
