PrimaLuceLab ARCO 2" Camera Rotator and Field De-Rotator

PrimaLuceLab ARCO 2" Camera Rotator and Field De-Rotator

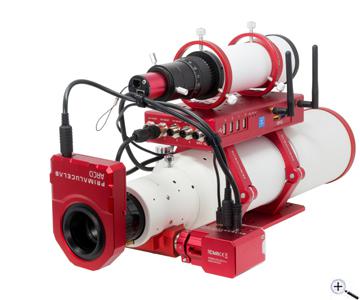

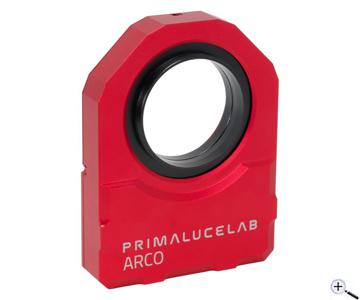

ARCO 2" is the new low profile ARC second resolution rOtator that, thanks to its incredible resolution of 1 arc second per step, is the most precise camera rotator and field de-rotator! The 2" version of ARCO has a thickness of only 20 mm and a free aperture of 50.9 mm. When used together with an equatorially mounted telescope, ARCO allows you to rotate the camera without the need to touch the telescope. When used with an alt-az mount (without a wedge!), it also works as field de-rotator, enabling you to do long exposure astrophotography as never before! Connect ARCO with a single short cable to ESATTO or SESTO SENSO 2, and control it from your EAGLE, any Windows computer or with a smartphone or tablet via WiFi!

ARCO 2" camera rotator and field de-rotator - main features:

Low profile rotator, just 20 mm of body thickness

1 arc second resolution per step

50.9 mm of free aperture

No need for external USB or 12 V power cables, it connect to ESATTO or SESTO SENSO 2 with a single short cable

No protruding parts that may interfere with your camera, other accessories or even your telescope

It works also with PLAY, the Prima Luce AstrophotographY software to be used with EAGLE or Windows 10/11 computers

ASCOM driver to allow the control of camera rotation from third party software

Specially designed full aluminum case, you can even rotate heavy cameras and accessories without any flexure

Compatible with all M56 adapters with stop ring to connect ARCO 2" to any camera and accessory

Adapters available to connect it ARCO 2" all the ESATTO focusers and to focusers with SESTO SENSO 2

Weight: 435 g

It comes with PLAY, the Prima Luce AstrophotographY software.

ARCO comes with PLAY, the all-in-one and easy to use astrophotography software that allows you to rotate the camera to the perfect angle to frame of your target if your telescope is installed on an equatorial mount or to automatically de-rotate the field if you use alt-az mounts without a wedge for long exposure astrophotography. PLAY allows you to configurate your telescope by selecting OTA and mount type and by connecting to any camera, autoguider, mount, and filter wheel that is provided with ASCOM drivers (tested with ASCOM platform 6.4 and later). In order to use PLAY you have to have at least ESATTO focuser or SESTO SENSO 2 focusing motor and it natively supports ARCO rotator and ECCO environmental module! And if you install PLAY in the EAGLE computer, it automatically adds more advanced features!

Easy to use with ESATTO

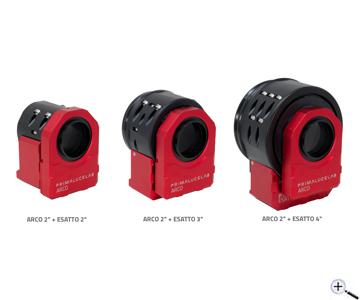

You can connect ARCO 2" to all the ESATTO focusers with the proper optional adapters and control it with the ARCO cable that comes in the box. Use the PL3600412 adapter to connect ARCO 2" to ESATTO 2". Use the PL3600416 adapter to connect ARCO 2" to ESATTO 3". Use the PL3600423 adapter to connect ARCO 2" to ESATTO 4".

Easy to use with SESTO SENSO 2.

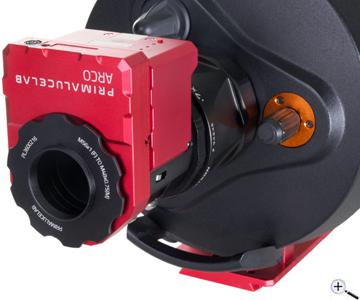

If you use a SESTO SENSO 2 connected to your telescope´s focuser, you can connect the ARCO 2? rotator by using the optional PL3600413 2" nosepiece for ARCO 2" if your focuser has a standard 2" visual back or the PL3600424 M48x0.75 female adapter for ARCO 2" if you have an M48 male thread (for example if you have a corrector/reducer already inserted in your focuser).

Like with the ESATTO, you will connect ARCO to SESTO SENSO 2 with the provided cable.

Compatible with all the M56 adapters.

Since ARCO 2? has the same M56x1 male thread found on the camera side of the ESATTO 2" draw tube, you can use any of the optional M56 adapters with stop ring in order to connect cameras or accessories you use for your setup:

PL3600218 adapter to connect cameras or accessories with T2 thread

PL3600216 adapter to connect cameras or accessories with M48 thread

PL3600225 adapter to connect accessories with SC thread

PL3600242 adapter to connect cameras or accessories with M54 thread

PL3600227 adapter to connect accessories with M57 thread

PL8410001 2" visual back to connect cameras or accessories with 2" nosepiece

Low profile and no protruding parts.

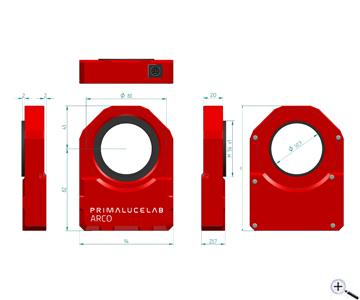

Thanks to its specially designed full aluminum case, all of the mechanical and electrical parts are neatly contained in the ARCO chassis. There are no protruding parts that may touch the camera, accessories or your telescope. The case thickness of the ARCO 2" is only 20 millimetres.

Please note: in order to be used, ARCO rotator has to be connected to ESATTO microfocuser or SESTO SENSO 2 focusing motor. ARCO is not designed as a stand alone unit.

Safety informations: PDF Download
