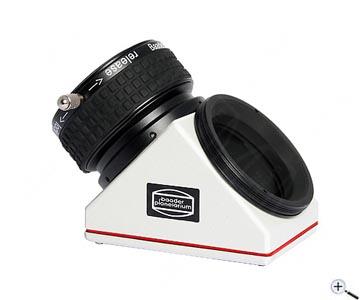

Baader 2956100Z - 2" ClickLock Star Diagonal with M68 thread
This star diagonal offers unique operation comfort with its ClickLock system and can be mounted to many telescopes with maximum clear aperture, due to the M68 thread.
telescope connection via M68 ZEISS thread 2" eyepiece mount with smooth operating Clicklock clamp dielectric coated 2" mirror scratch resistant hard coating smooth ClickLock clamping CNC body with quality workmanship from Baader Short optical path of only 109 mm length the last image shows the mechanism of a very similar star diagonal
- Details..
- Technical data..
- In the box..
- Manufacturer infos..
- Safety informations..
The 2" ClickLock diagonal by Baader sets a new quality standard with its optical and mechanical performance.
Beneath the optical quality, it offers unique operation comfort with its ClickLock system. Big mirror with high-precision surface (1/10 Lamdba) and dielectrical hard coating group This diagonal offers the biggest aperture and the shortest back focus possible for 2". Elegant design with robust surfaces and rounded edges
Very good optical construction
High precision mirror:
The dielectrically coated 2" mirror with its surface accuracy of lambda/10 is very smooth and precise. Thus the image is very contrasty. The hard-coating group is scratch-proof and sustains the mirror quality.
Large clear aperture:
The M68 thread offers a large clear aperture and allows for a good illumination with very little vignetting.
The Baader ClickLock® System at a glance
Never before an eyepiece receptacle for amateur astronomy has been manufactured thus complex. The Baader ClickLock (1.25"/2") is a precisely fitting, very massive eyepiece clamp without locking screws (!). Inserted eyepieces / CCD cameras etc. are held twist-proof but nonetheless will not be scratched! With a small 20° rotation any eyepiece will be clamped absolutely secure.
You don´t need to tighten our ClickLock clamps until your hand is damaged, as the mechanical principle origins from professional machine construction. The tool holder of modern CNC machining centers works the same way. By clever use of leverage effects, the clamping force is enhanced to the manifold extent. The inserted item is held at three sides, like with a quick-action chuck, and thus cannot carry out tilting movements anymore.
Detail of the 2" ClickLock system
A 20° rotation by pressing the rotary lever is sufficient to securely hold all 2" accessories perfectly safe and firmly. Ratchet function - shows acoustic and haptic to the position of the clamp. You will be able to recognise the position of the clamp even in the dark Massive compression ring - holds the most expensive accessory totally safe with no scratches and marring The lever position can be set via 6 slotted camera screws or 6 hexagon socket head screws with hex key for making the CL clamp usable for both right-handers and left-handers.
Connection telescope side: | M68 ZEISS thread |
Connection eyepiece side: | 2" Clicklock clamp |
Reflective coating: | dielectrical |
Surface accuracy: | lambda/10 |
Coating: | hard, scratch-proof |
Clear aperture: | 51 mm |
Optical path: | 109 mm |
1 Star Diagonal with 2" ClickLock clamping
Manufacturer / Importeur: | Baader Planetarium GmbH |
Street: | Zur Sternwarte |
ZIP / City: | 82291 Mammendorf |
Country: | Germany |
Telefon number: | +49 8145 80890 |
Email: | kontakt@baader-planetarium.de |
Website: | www.baader-planetarium.com |
