Baader 2" ClickLock diagonal mirror - 99% reflection - 1/10 lambda

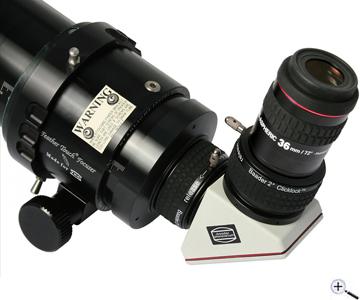

Baader Planetarium 2" diagonal mirror with ClickLock clamp

This diagonal mirror satifies with features that cannot be taken for granted in this class.

Over-dimensioned dielectric mirror with 1/10 lambda

Hard-coated, scratch-proof mirror surface for safe cleaning

Maximum possible clear aperture for wide-field observing

Rounded body without sharp corners and edges

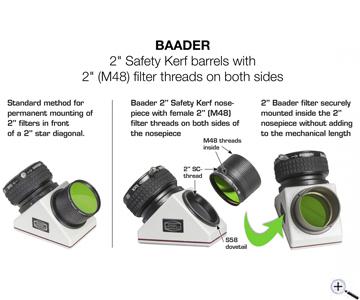

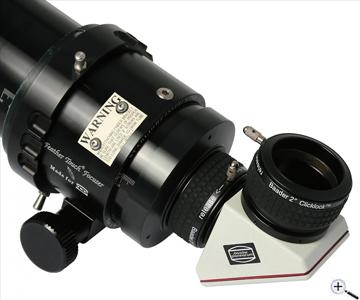

Removable 2" Safety Kerf nosepiece, both ends include M48 filter threads, featuring largest clear aperture for widefield application. It can be locked without tilting.

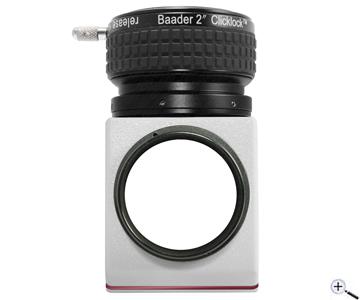

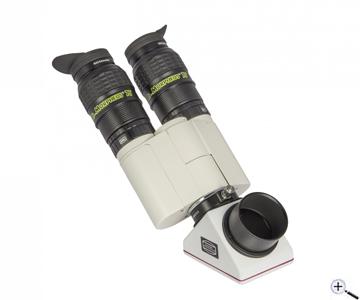

Baader ClickLock clamp for very fast attaching of accessories

The ClickLock clamping: here, the eyepiece side accessories are clamped over the whole area. In opposite to locking screws, the eyepiece or adapter is centered exactly on the optical axis and not pressed against the opposite surface.

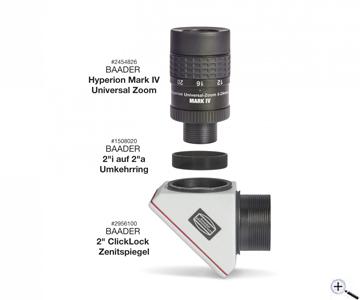

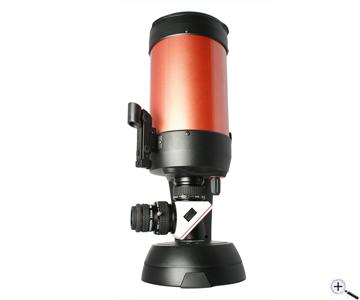

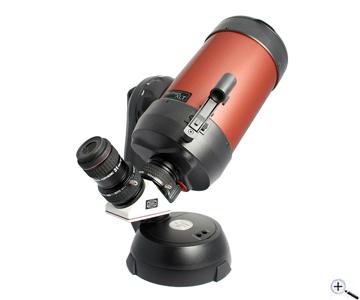

Ultra short adaption of the Hyperion Zoom eyepiece

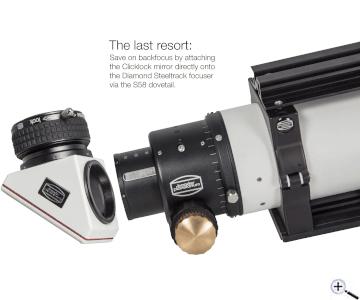

If having too little back focus (focus range) of the telescope or for accessories that have to be attached "captively" to the telescope (public observatories), you can attach the Hyperion Zoom directly to the diagonal prism, instead using the 2" barrel, thus saving approximately 47 mm of optical path.

The ClickLock clamp is simply detached from the body by loosening of the six fixing screws at the side. After that, a female 2" / SCT thread becomes accessible at the body. Into this thread, the gender changer BA1508020 is screwed. The Hyperion Mark III Zoom eyepiece can directly be screwed to this gender changer.

The Baader ClickLock® System at a glance

Never before an eyepiece receptacle for amateur astronomy has been manufactured thus complex. The Baader ClickLock (1.25"/2") is a precisely fitting, very massive eyepiece clamp without locking screws (!). Inserted eyepieces / CCD cameras etc. are held twist-proof but nonetheless will not be scratched! With a small 20° rotation any eyepiece will be clamped absolutely secure.

You don´t need to tighten our ClickLock clamps until your hand is damaged, as the mechanical principle origins from professional machine construction. The tool holder of modern CNC machining centers works the same way. By clever use of leverage effects, the clamping force is enhanced to the manifold extent. The inserted item is held at three sides, like with a quick-action chuck, and thus cannot carry out tilting movements anymore.

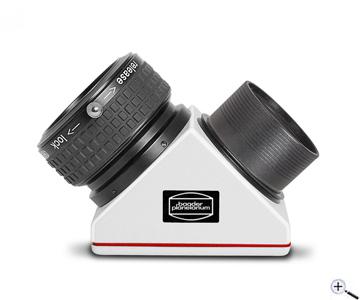

Detail of the 2" ClickLock system

A 20° rotation by pressing the rotary lever is sufficient to securely hold all 2" accessories perfectly safe and firmly.

Ratchet function - shows acoustic and haptic to the position of the clamp. You will be able to recognise the position of the clamp even in the dark

Massive compression ring - holds the most expensive accessory totally safe with no scratches and marring

The lever position can be set via 6 slotted camera screws or 6 hexagon socket head screws with hex key for making the CL clamp usable for both right-handers and left-handers.

Safety informations: PDF Download
