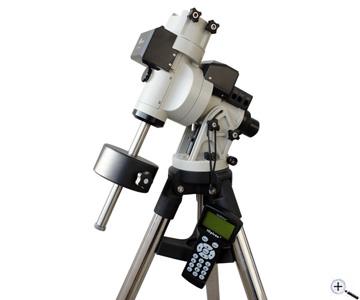

Slightly used: iOptron iEQ30 Pro German Equatorial GoTo Mount with 1.5" Tripod and Hard Case

Name: Slightly used: iOptron iEQ30 Pro German Equatorial GoTo Mount with 1.5" Tripod and Hard Case
Brand: iOptron
SKU: 2023-2808-1
Price: 1399 EUR

This German mount with high precision tracking for astrophotography is remarkable lightweight for its payload and thus portable - with tripod

# iEQ30: Light signs of use, technically tested and OK. Mount with case, hand controller, tripod. Without power supply, without counterweight.

German GoTo mount

30 lbs (13.6 kg) payload, 15 lbs (6.8 kg) weight, portable!

Sturdy stainless steel tripod, 1.5" leg diameter

Stepper motor drive with micro steps and PEC

up to 6 °/sec slew speed

up to 15° past meridian until stop

359000 objects database

ASCOM and autoguider ports

universal 12 V power rating

Vixen style dovetail saddle

foam-fitted sturdy hard case for storage and travel - perfect for transport

Manufacturer: iOptron

Product number: 2023-2808-1

EUR 1.399,00

incl. 19 % VAT (DE)

The VAT indicated refers to that applicable in Germany. After logging in, the VAT amount is adjusted to the applicable VAT of the stored delivery country. Therefore, the final price may vary accordingly.

excl. 9.95 € shipping costs (DE)

Please log in to calculate shipping costs to your country.

more details to the shipping costs ...

There are no reviews for this product

Roll over image to zoom in or klick it. The appropriate zoom factor ist adjustable with the mouse wheel.

Slightly used: iOptron iEQ30 Pro German Equatorial GoTo Mount with 1.5" Tripod and Hard Case

This German mount with high precision tracking for astrophotography is remarkable lightweight for its payload and thus portable - with tripod

# iEQ30: Light signs of use, technically tested and OK. Mount with case, hand controller, tripod. Without power supply, without counterweight.

German GoTo mount

30 lbs (13.6 kg) payload, 15 lbs (6.8 kg) weight, portable!

Sturdy stainless steel tripod, 1.5" leg diameter

Stepper motor drive with micro steps and PEC

up to 6 °/sec slew speed

up to 15° past meridian until stop

359000 objects database

ASCOM and autoguider ports

universal 12 V power rating

Vixen style dovetail saddle

foam-fitted sturdy hard case for storage and travel - perfect for transport

Details..
Technical data..
In the box..
Manufacturer infos..
Safety informations..

The iOptron iEQ30 Pro is a very portable mount.

It is designed for imaging and visual use, has a maximum payload of 13.6 kg instrument weight and offers the same powerful GoTo technology which drives the bigger iEQ45 and Minitower mounts.

One of the best payload/weight ratios in this category:

The iEQ30 carries telescopes up to 13.6 kg weight. The mount has a very compact design with only 6.8 kg weight. This leads the iEQ30 to a TOP SOLUTION for transportable astrophotography.

Features of the iEQ30 Pro:

Advanced GoToNOVA technology for high precision goto and auto-tracking

Portable, compact and sturdy German equatorial mount with the highest payload/mount weight ratio

Maximum payload 13.6 kg / 30 lbs

Mount weight 6.8 kg / 15 lbs

Quiet slewing and tracking

Built-in GPS 32-channel

#8407 controller with advanced GoToNova technology - resolution 0.14 arc seconds

Controller includes heating mechanism for working at low temperatures

Polar Scope with dark-field illumination

Permanent PEC

ST-4 autoguiding port

RS232 port for ASCOM control and firmware upgrade

Ultra accurate tracking with temperature compensated crystal oscillator (TCXO)

Vixen style mounting saddle

Sturdy stainless steel tripod with 1.5" leg diameter

High quality hard case

Downloads:

The manufacturer has manuals, software and drivers available for download, you can get them here.

Mount:	German Equatorial Mount
Payload:	30 lbs (13.6 kg)
Mount Weight:	15 lbs (6.8 kg)
Latitude Adjustment Range:	0° ~ 65°
Azimuth Adjustment Range:	± 6°
RA Worm period:	480 s
Right Ascension Worm Wheel:	Ø110 mm, 180 teeth
Declination Worm Wheel:	Ø88 mm, 144 teeth
RA and DEC worm:	Ø15.2 mm, M=0.6, brass
RA Bearing:	Ø68 mm
DEC Bearing:	Ø55 mm
Right Ascension Axis Shaft:	Ø40 mm, steel
Declination Axis Shaft:	Ø30 mm, steel
Gear meshing:	Zero backlash
CW shaft:	Ø20 mm, Stainless steel
CW:	none
Mount base diameter:	Ø120 mm
Dovetail saddle:	Vixen
Level indicator:	Precision bubble
Polar Scope:	AccuAlignTM G2 polar scope, dark field illumination
Drive Motor:	1.8° stepper motor, 128x microdivision
Resolution:	0.14 arc seconds (256 PPS)
Transmission:	48MXL Synchronous belt
Motor control:	Open loop
PEC:	Permanent PEC
Hand controller:	Advanced Go2Nova® 8407+, 359,000 objects database, star recognition
HC display:	8 line, 21 character LCD, heated
Slew speed:	9 speeds, 6°/sec max (1440X)
Tracking rate:	Sidereal/Solar/Lunar/King/User
Meridian treatment:	Stop (0-15° pass) and auto flip
GPS:	Build-in 32 Channel GPS
Communication port:	RS232
Guiding port:	ST-4
Power interuption recover:	Yes
Power requirement:	DC 12 V (11~15 V) 2 A
Power consumption:	0.4 A (Tracking) 0.6 A (GOTO)
Computer control:	Yes (ASCOM)
Operation temperature:	-20~45 °C
Tripod:	1.5" Stainless Steel (10.6 lbs or 4.8 kg)

iEQ30Pro GoTo mount head in foam fitted hard case

1.5" Tripod (stainless steel) with spreader / accessory tray

Counterweight shaft, stainless steel

Polar finder scope (calibrated), dark field illuminated

Hand controller (with cable)

12 V DC car plug adaptor

RS232-RJ9 cable
